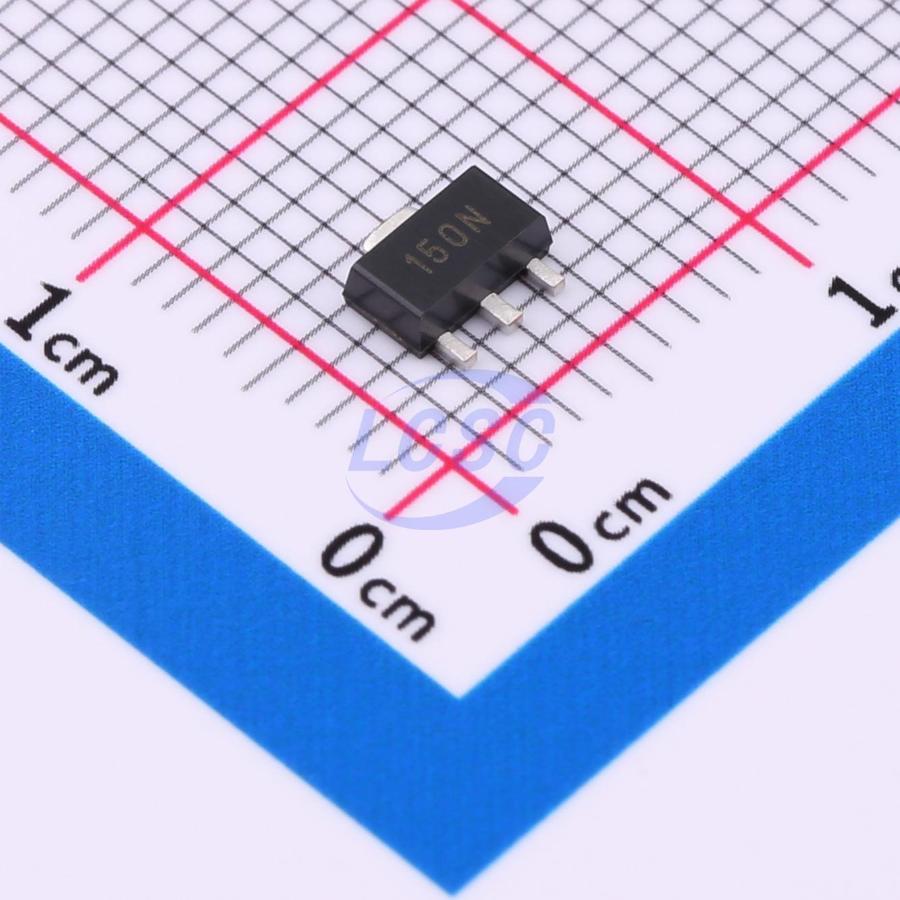

XC6201P502PR
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
250mA, 2uA, Low Dropout Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- XC6201P502PR
- Store part #
- C22371399
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,720 in stock
#C22371399
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.85 | ₹119.25 |
| 50+ | ₹19.05 | ₹952.50 |
| 150+ | ₹16.99 | ₹2,548.50 |
| 1,000+ | ₹14.42 | ₹14,420.00 |
| 2,000+ | ₹13.27 | ₹26,540.00 |
| 5,000+ | ₹12.58 | ₹62,900.00 |
5 × ₹23.85
₹119.25
excl. GST
₹140.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
XC6201P502PR
₹119.25 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 12V
- Features
- Enable control;Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.152 g
Overview
The XC6201P is a low-dropout (LDO) voltage regulators with enable function offering the benefits of high input voltage, low-dropout voltage, low-power consumption, and miniaturized packaging. The features of low quiescent current as low as 2.0 μA and zero disable current is ideal for powering the battery equipment to a longer service life. The XC6201P is stable with the ceramic output capacitor over its wide input range from 2V to 12V and the entire range of output load current.
Applications
- Battery powered portable devices
- Smart phone, tablet
- Hi resolution camera sensor power
- Wireless modules
- RF, PLL, VCO clock power
Key features
- High Input Voltage Range: up to 12V
- Maximum Output Current: 250mA
- Low Quiescent current: 2μA
- Low Dropout: 200mV (typ)@100mA (3.3V)
- Low Output Voltage Accuracy: ±2%
- Low Power Consumption
- Low Temperature Coefficient
- Available Packages: SOT89-3、SOT-23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPMCP1702T-5002E/MB#C3040637TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 1,950 | ₹35.64 · 1,950 in stock | View |
 | AMS1117-5.0S#C46473006TECH PUBLIC · SOT-89 | TECH PUBLIC | SOT-89 | 3,700 | ₹6.13 · 3,700 in stock | View |
 | HT7350-2-L(TP)#C53340887TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | On request | Price on request | Quote |
