YONGYUTAIDatasheet (PDF)

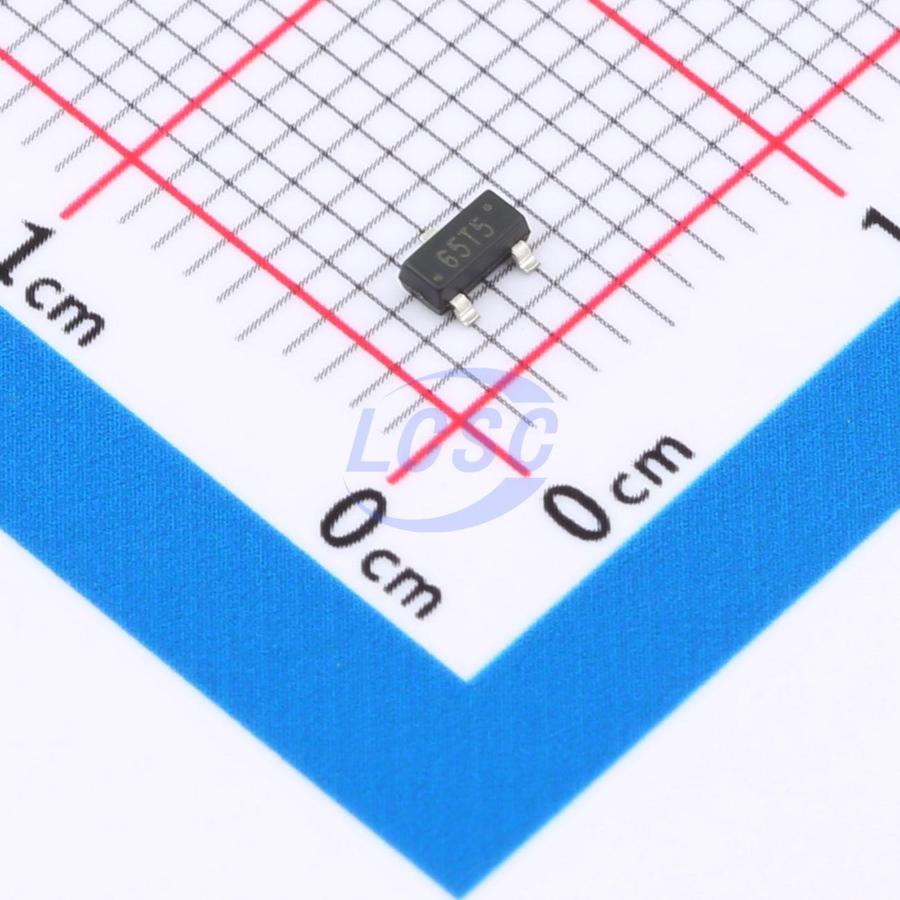

XC6206-2.5V
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23
SOT-23RoHSActive
250mA Low Dropout (LDO) Linear Regulator
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- XC6206-2.5V
- Store part #
- C49195705
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,080 in stock
#C49195705
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.20 | ₹64.00 |
| 200+ | ₹2.50 | ₹500.00 |
| 600+ | ₹2.10 | ₹1,260.00 |
| 3,000+ | ₹1.87 | ₹5,610.00 |
| 9,000+ | ₹1.67 | ₹15,030.00 |
| 21,000+ | ₹1.55 | ₹32,550.00 |
20 × ₹3.20
₹64.00
excl. GST
₹75.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206-2.5V
₹64.00 for 20 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
The XC6206 series is a high-accuracy, low-power, positive-voltage linear regulator manufactured using CMOS process technology and laser trimming. The device features an extremely low dropout voltage at rated output current. It integrates a current limiting circuit, driver transistor, high-accuracy reference voltage source, and error correction circuit. The series supports the use of ceramic capacitors with low ESR. The foldback circuitry in the current limiter provides short-circuit protection for both the current limiter and the output pin. Through laser trimming, the output voltage can be set from 1.2V to 5.0V in 0.1V increments.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable computers
- Portable consumer devices
- Portable instruments
- Electronic equipment
- Automotive electronics
- Voltage references
Key features
- High-precision output voltage: ±2%
- Output voltage range: 1.2V~5.0V (step 0.1V)
- Maximum input voltage: 6V
- Ultra-low quiescent current (typical = 8.0μA)
- High output current capability: Iout=300mA at Vin=4.3V and Vout=3.3V
- Ultra-low dropout: 0.2V at 90mA, 0.40V at 200mA
- Excellent line regulation
- Low temperature coefficient
- Suitable for use as voltage regulator and voltage reference
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6206P252MR#C2909917YONGYUTAI · SOT-23 | YONGYUTAI | SOT-23 | 1,540 | ₹3.14 · 1,540 in stock | View |
