TOREX

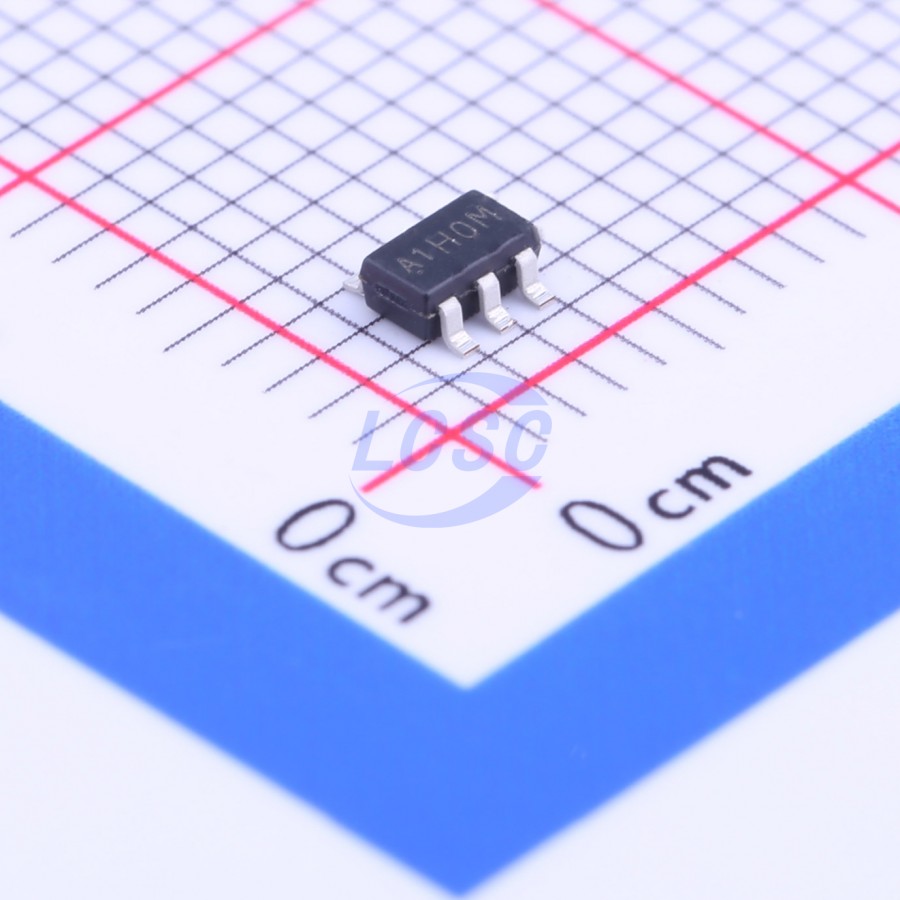

XC6206J302MR-G

3V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-25ROHS CompliantActive

Low-power current regulator

Manufacturer: TOREX
Manufacturer part #: XC6206J302MR-G
Store part #: C155729
Package / case: SOT-25
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,430 in stock

#C155729

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
5+	₹22.12	₹110.60
50+	₹18.48	₹924.00
150+	₹16.66	₹2,499.00
500+	₹15.29	₹7,645.00
3,000+	₹14.21	₹42,630.00
6,000+	₹13.65	₹81,900.00

Quantity (min 5, multiples of 5)

5 × ₹22.12

₹110.60

excl. GST

₹130.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

XC6206J302MR-G

₹110.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 1uA
Output Configuration: Positive
Output Current: 200mA
Operating Voltage: 6V
Features: Over Current Protection;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

XC6206J series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves very low supply current, 1.0 μa (TYP.) and consists of a reference voltage source, an error amplifier, current limit circuit, and a phase compensation circuit plus a driver transistor. The series is also compatible with low ESR ceramic capacitors (CL), which give added output stability. The current limiter’s fold-back circuit also operates as a short protect for the output current limiter and the output pin.

Applications

Mobile devices / terminals
Communication equipment (Bluetooth, Wi-Fi, GPS etc)
Module (Communication, Camera, etc)
Cell phones
Smartphones

Key features

Maximum Output Current: 200mA
Dropout Voltage: 200mV@IOUT=100mA (VOUT = 3.0V)
Operating Voltage Range: 1.5V ~ 6.0V
Output Voltage: 0.9~4.0V (0.1V increments)
Low Consumption Current: 1.0 μA (TYP.)
Protection Circuit: Current Limit 300mA (TYP.), Short Circuit Protection 50mA (TYP.)
External Capacitor: 0.1 μF~1.0 μF
Operating Ambient Temperature: -40°C~+85°C
Package: SOT-25-02
Environmentally Friendly: EU RoHS Compliant, Pb Free
