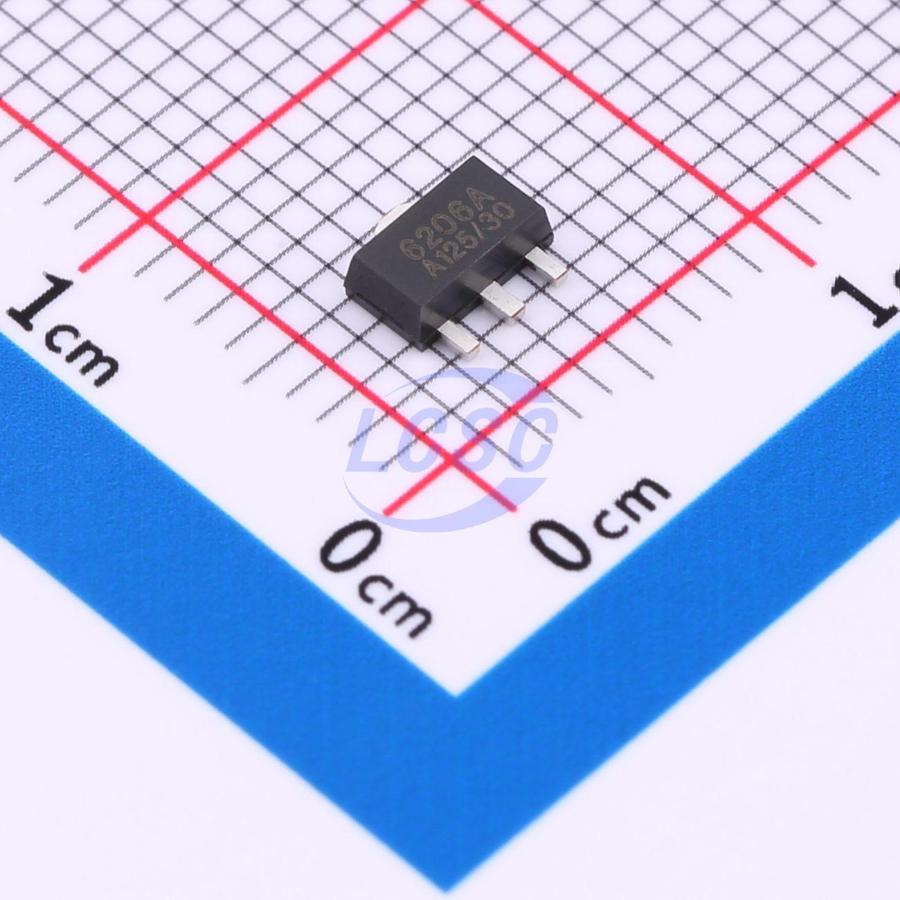

XC6206P302PR-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89-3
SOT-89-3ROHS CompliantActive
CMOS step-down voltage regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- XC6206P302PR-MS
- Store part #
- C22462585
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C22462585
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.83 | ₹98.30 |
| 100+ | ₹7.78 | ₹778.00 |
| 300+ | ₹6.75 | ₹2,025.00 |
| 1,000+ | ₹5.97 | ₹5,970.00 |
| 5,000+ | ₹5.36 | ₹26,800.00 |
| 10,000+ | ₹5.04 | ₹50,400.00 |
10 × ₹9.83
₹98.30
excl. GST
₹115.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
XC6206P302PR-MS
₹98.30 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.145 g
Overview
The XC6206PXXXPR-MS series are high ripple rejection, low quiescent current, low dropout CMOS linear voltage regulators with overcurrent and short-circuit protection. These devices feature a very low quiescent current (8.0μA Typ.), capable of delivering 250mA output current at minimal input-to-output voltage differentials while maintaining excellent regulation. Due to the small input-to-output voltage differential and low quiescent current, these devices are particularly suited for battery-powered applications where extended battery life is desired, such as computers, consumer products, and industrial equipment.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
- Portable instruments
- Automotive electronics voltage reference sources
Key features
- High output voltage accuracy: ±2.5%
- Output voltage: 1.5V~5.0V (step 0.1V)
- Ultra-low quiescent current (Typ.) = 8.0μA
- Low temperature coefficient
- Maximum input voltage up to 8V
- High load capability: Iout = 250mA at Vin = 4.3V and Vout = 3.3V
- Usable as regulator or voltage reference
- Good line regulation: Typ. 0.03%/V
