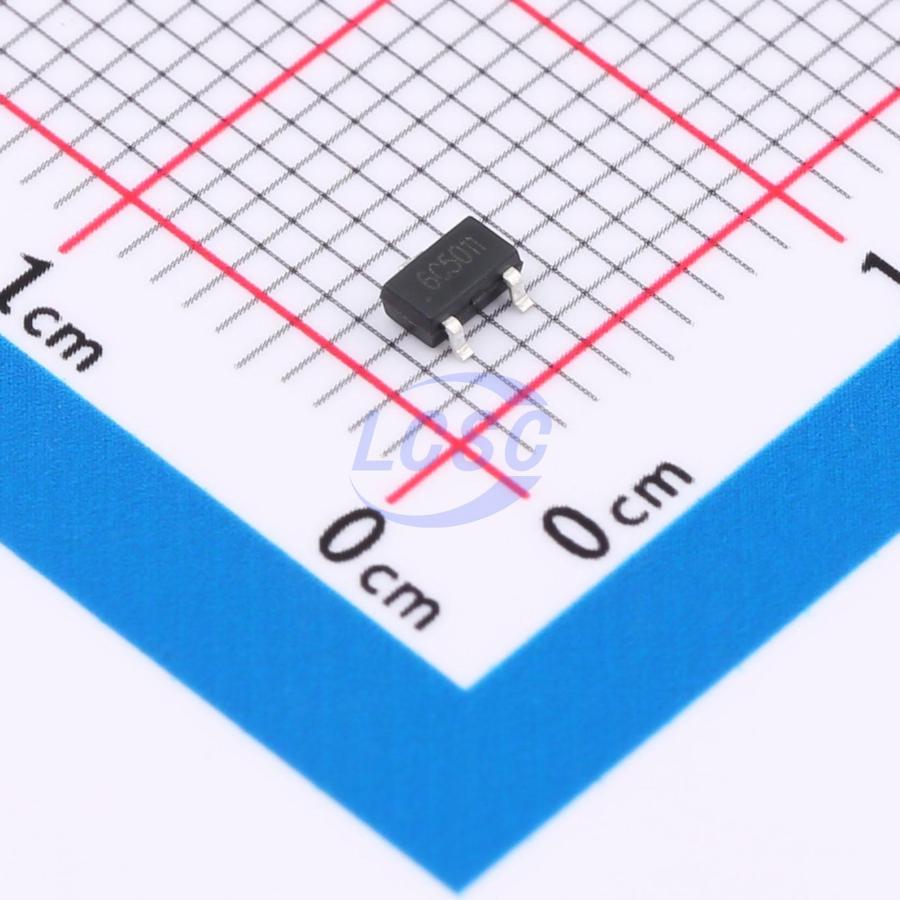

XC6206P502MR(1uA)
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-3L
SOT-23-3LRoHSActive
Ultra-low power consumption, low dropout, linear voltage regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- XC6206P502MR(1uA)
- Store part #
- C22435181
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,910 in stock
#C22435181
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.81 | ₹59.05 |
| 50+ | ₹9.27 | ₹463.50 |
| 150+ | ₹8.00 | ₹1,200.00 |
| 500+ | ₹7.06 | ₹3,530.00 |
| 3,000+ | ₹6.30 | ₹18,900.00 |
| 6,000+ | ₹5.91 | ₹35,460.00 |
5 × ₹11.81
₹59.05
excl. GST
₹69.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P502MR(1uA)
₹59.05 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 7V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
The XC6206P series are high-accuracy, low-power, low-dropout 3-terminal CMOS linear voltage regulators. They deliver 200mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Quiescent current is as low as 1.0μA (Typ.). Integrated overcurrent and short-circuit protection. Compatible with small, low-ESR ceramic capacitors. Using laser trimming technology, output voltage is selectable from 0.9V to 5.0V in 0.1V increments.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for home appliances
- Regulated power supply for portable communication devices, digital cameras, and digital audio equipment
Key features
- Maximum output current: 200mA
- Input-output voltage dropout: 200mV@100mA
- Maximum input voltage: 7V
- Output voltage range: 0.9V ~ 5.0V
- Low quiescent current: 1.0μA Typ.
- Protection features: overcurrent protection, short-circuit protection
- Output capacitor: compatible with ceramic capacitors
