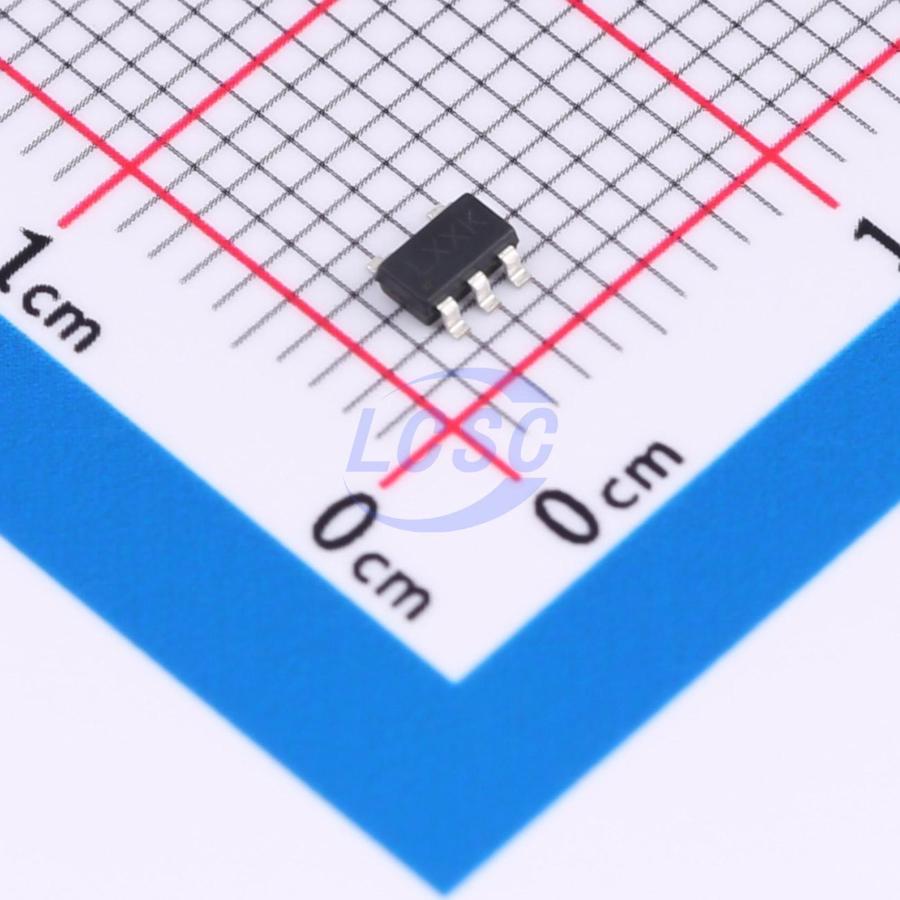

XC6219B282MR

The XC6219xx series are high-accuracy, low-noise, fast-response LDO regulators fabricated using CMOS process technology. These regulators integrate a fixed reference voltage, error correction circuit, current limiting circuit, phase compensation circuit, and a low on-resistance MOSFET, achieving high ripple rejection, low output noise, and fast-response low-dropout performance. This series is compatible with ceramic capacitors smaller than tantalum capacitors and eliminates the need for a 0.1μF bypass capacitor, helping to save board space and reduce cost. With high-accuracy output stability and fast transient response, the series effectively handles load current fluctuations, making it particularly suitable for handheld devices and RF products. Output can be disabled via the CE pin on the chip; the typical quiescent current in shutdown mode is only 0.1μA, significantly reducing power consumption.

Applications

• Smartphones and mobile phones
• Bluetooth and other RF products
• Digital cameras and camcorders
• Portable consumer devices
• Battery-powered equipment

Key features

• High-accuracy output voltage: ±2.5%
• Selectable output voltage range: 1.8V~5.0V
• Ultra-low quiescent current: 25μA typical
• Ceramic capacitor compatible
• Ultra-low shutdown current: 0.1μA typical
• Package: SOT89-5, SOT23-5
• High input regulation: 0.2%/V typical
