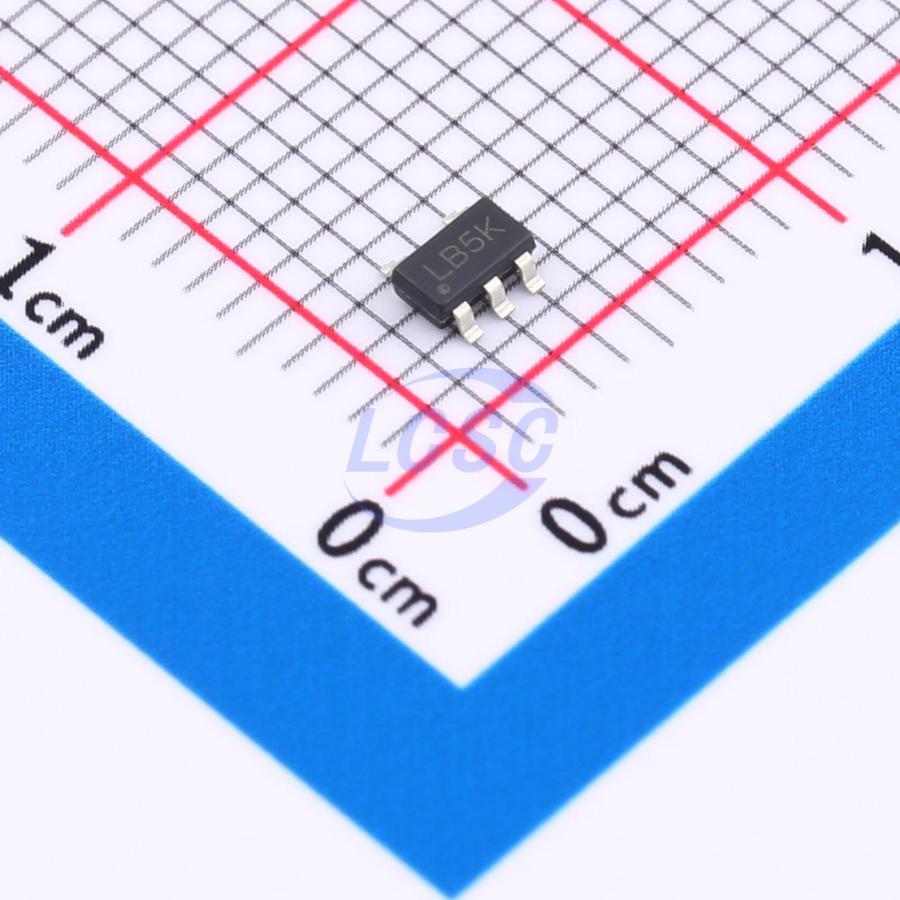

XC6219B362MR

The XC6219xx series are high-precision, low-noise, fast-response LDO linear regulators fabricated using CMOS process technology. These regulators integrate a fixed reference voltage, error correction circuit, current limiting circuit, phase compensation circuit, and a low on-resistance MOSFET, achieving high ripple rejection, low output noise, and fast-response low-dropout performance. The series is compatible with ceramic capacitors smaller than tantalum capacitors and eliminates the need for a 0.1μF bypass capacitor, helping to save board space and reduce cost. With high-precision output stability and fast transient response characteristics, the series can handle load current fluctuations, making it particularly suitable for handheld devices and RF products. The output can be disabled via the CE pin on the chip; the typical quiescent current in shutdown mode is only 0.1μA, significantly reducing power consumption.

Key features

• High output voltage accuracy: ±2.5%
• Strong load capability: Iout = 300mA at Vin = 4.3V and Vout = 3.3V
• Selectable output voltage: 1.8V~5.0V
• Ultra-low quiescent current (typical = 25μA)
• Ceramic capacitor compatible
• Ultra-low shutdown current (typical = 0.1μA)
• Package: SOT89-5, SOT23-5
• Excellent line regulation: typical = 0.2%/V
