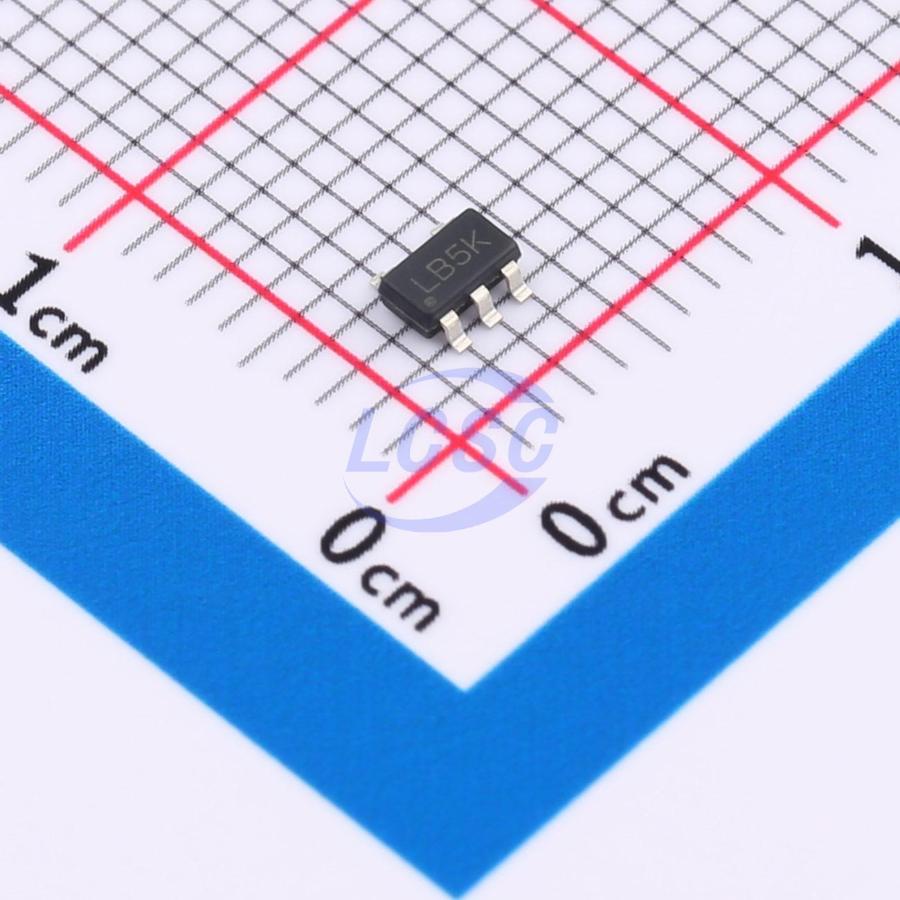

XC6220B361MR

The XC6220xx series are high-accuracy, low-noise, fast-response LDO regulators manufactured using CMOS process technology. These regulators integrate a fixed reference voltage, error correction circuit, current limiting circuit, phase compensation circuit, and a low on-resistance MOSFET, achieving high ripple rejection, low output noise, and fast-response low-dropout performance. The series is compatible with ceramic capacitors, which are smaller than tantalum capacitors, and eliminates the need for a 0.1μF bypass capacitor, helping to save board space and reduce costs. With high-accuracy output stability and fast transient response to handle load current fluctuations, the series is particularly suited for handheld devices and RF products. Output can be disabled via the CE pin on the chip; the typical quiescent current in shutdown mode is only 0.1μA, significantly reducing power consumption.

Applications

• Smartphones/mobile phones
• Digital cameras/camcorders
• Battery-powered devices
• Bluetooth and other RF products
• Portable consumer devices

Key features

• High accuracy output voltage: ±2.5%
• Selectable output voltage: 1.8V~5.0V
• Ultra-low quiescent current (typical = 25μA)
• Ultra-low shutdown current (typical = 0.1μA)
• Good line regulation: typical = 0.2%/V
• High output current capability: Iout = 300mA at Vin = 4.3V and Vout = 3.3V
• Ceramic capacitor compatible
• Package: SOT89-5, SOT23-5
