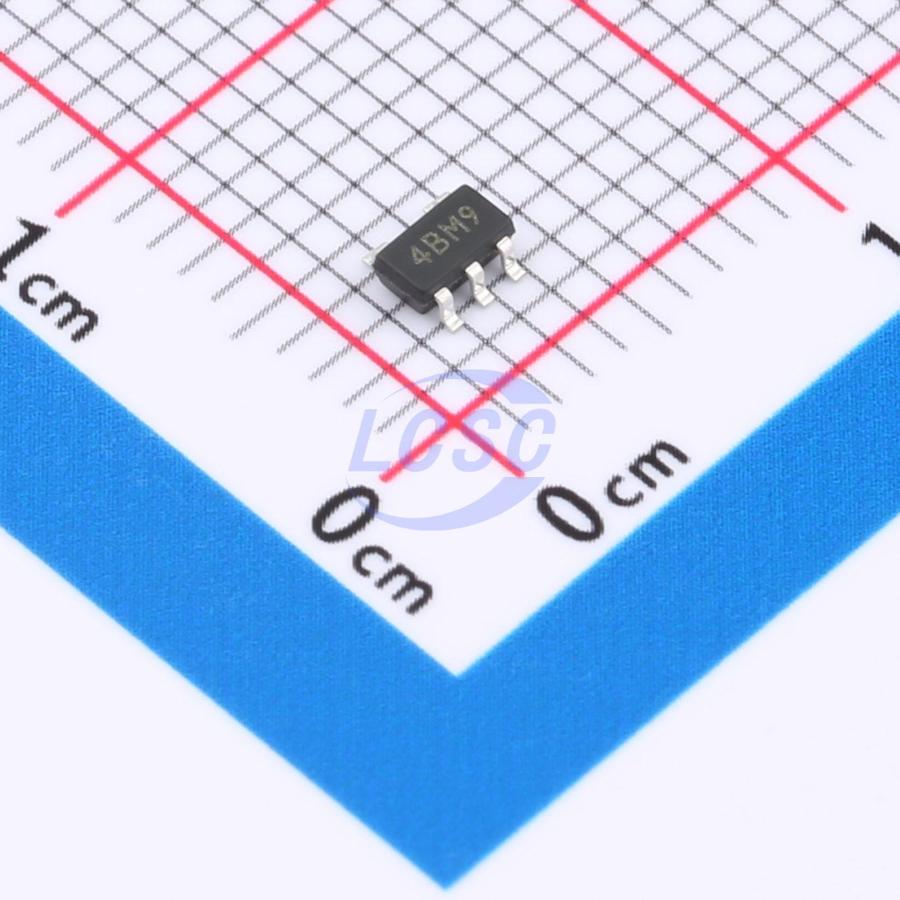

XC6219B502MR-MS
Linear Voltage Regulator IC Fixed 350mA SOT-23-5
SOT-23-5ROHS CompliantActive
High-precision, low-noise CMOS LDO regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- XC6219B502MR-MS
- Store part #
- C45367204
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C45367204
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.77 | ₹57.70 |
| 100+ | ₹4.52 | ₹452.00 |
| 300+ | ₹3.90 | ₹1,170.00 |
| 3,000+ | ₹3.43 | ₹10,290.00 |
| 6,000+ | ₹3.06 | ₹18,360.00 |
| 9,000+ | ₹2.86 | ₹25,740.00 |
10 × ₹5.77
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6219B502MR-MS
₹57.70 for 10 + GST
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
The XC6219 series are high-precision, low-noise CMOS LDO voltage regulators. This series offers low output noise, high ripple rejection ratio, low dropout voltage, and extremely fast startup time, making it ideal for today's cutting-edge mobile phone applications. Internally integrated are a reference voltage source, error amplifier, driver transistor, current limiter, and phase compensator. The output voltage is set by current trimming and can be selected from 1.2V to 5.0V in 100mV steps. The series is also fully compatible with low-ESR ceramic capacitors, helping to reduce costs and improve output stability. With excellent transient response performance and high PSRR achieved across a wide frequency range, high output stability is maintained even during frequent load fluctuations. The CE function allows the regulator output to be disabled, significantly reducing power consumption.
Applications
- Battery-powered devices
- Communication equipment
- Mobile phones
- Portable game consoles
- Cameras, camcorders
- Voltage reference sources
Key features
- Low power consumption: 40uA (typical)
- Low dropout: 0.12V@100mA@VOUT=3.3V (typical)
- Standby mode: 0.1uA
- Low temperature coefficient
- High input voltage (up to 8V)
- Output voltage accuracy: ±2% tolerance
- SOT23-5, SOT89 packages
