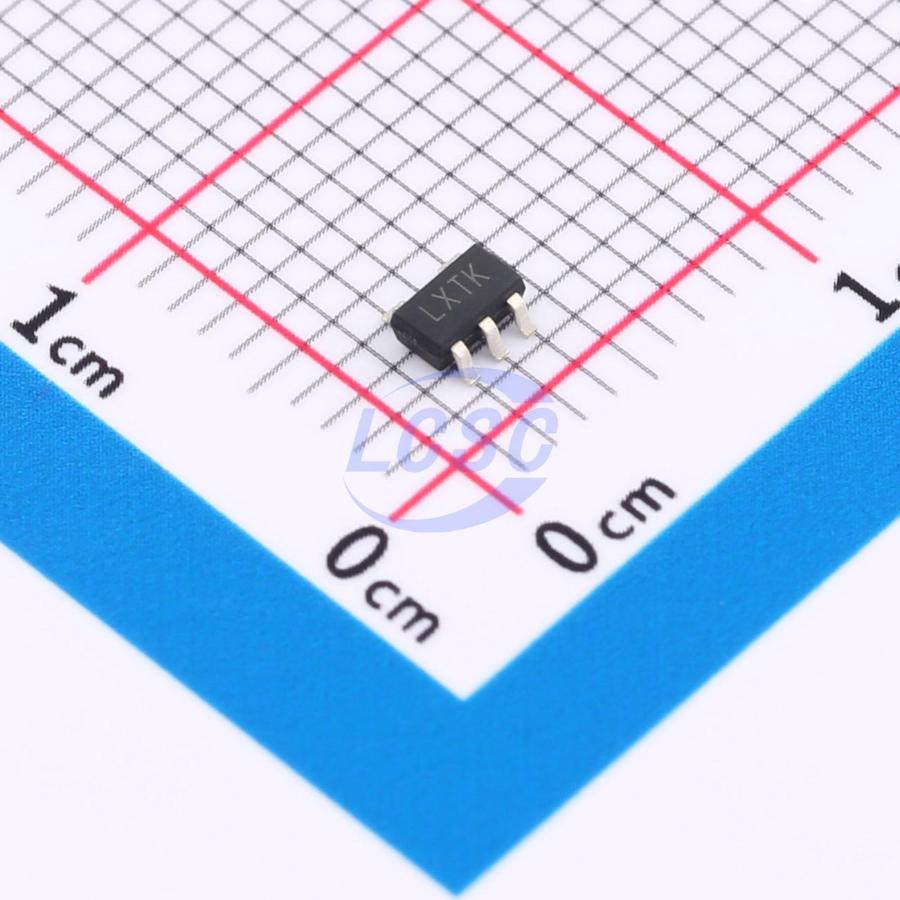

XC6220B251MR

The XC6220xx series are high-accuracy, low-noise, fast-response LDO regulators fabricated using a CMOS process. These regulators integrate a fixed reference voltage, error correction circuit, current limiting circuit, phase compensation circuit, and a low on-resistance MOSFET, achieving high ripple rejection, low output noise, and fast-response low-dropout performance. The series is compatible with ceramic capacitors, which are smaller than tantalum capacitors, and requires no 0.1μF bypass capacitor, further saving board space and reducing cost. With high-accuracy output regulation and fast transient response to load current fluctuations, these devices are particularly well-suited for handheld and RF applications. Output can be disabled via the CE pin, with a typical quiescent current of only 0.1μA in shutdown mode, significantly reducing power consumption.

Applications

• Smartphones/mobile phones
• Digital cameras/camcorders
• Battery-powered devices
• Bluetooth and other RF products
• Portable consumer devices

Key features

• High-accuracy output voltage: ±2.5%
• Selectable output voltage: 1.8V ~ 5.0V
• Ultra-low quiescent current (typical = 25μA)
• Ultra-low shutdown current (typical = 0.1μA)
• Excellent line regulation: typical = 0.2%/V
• High output current capability: Iout = 300mA at Vin = 4.3V and Vout = 3.3V
• Ceramic capacitor compatible
• Package: SOT89-5, SOT23-5
