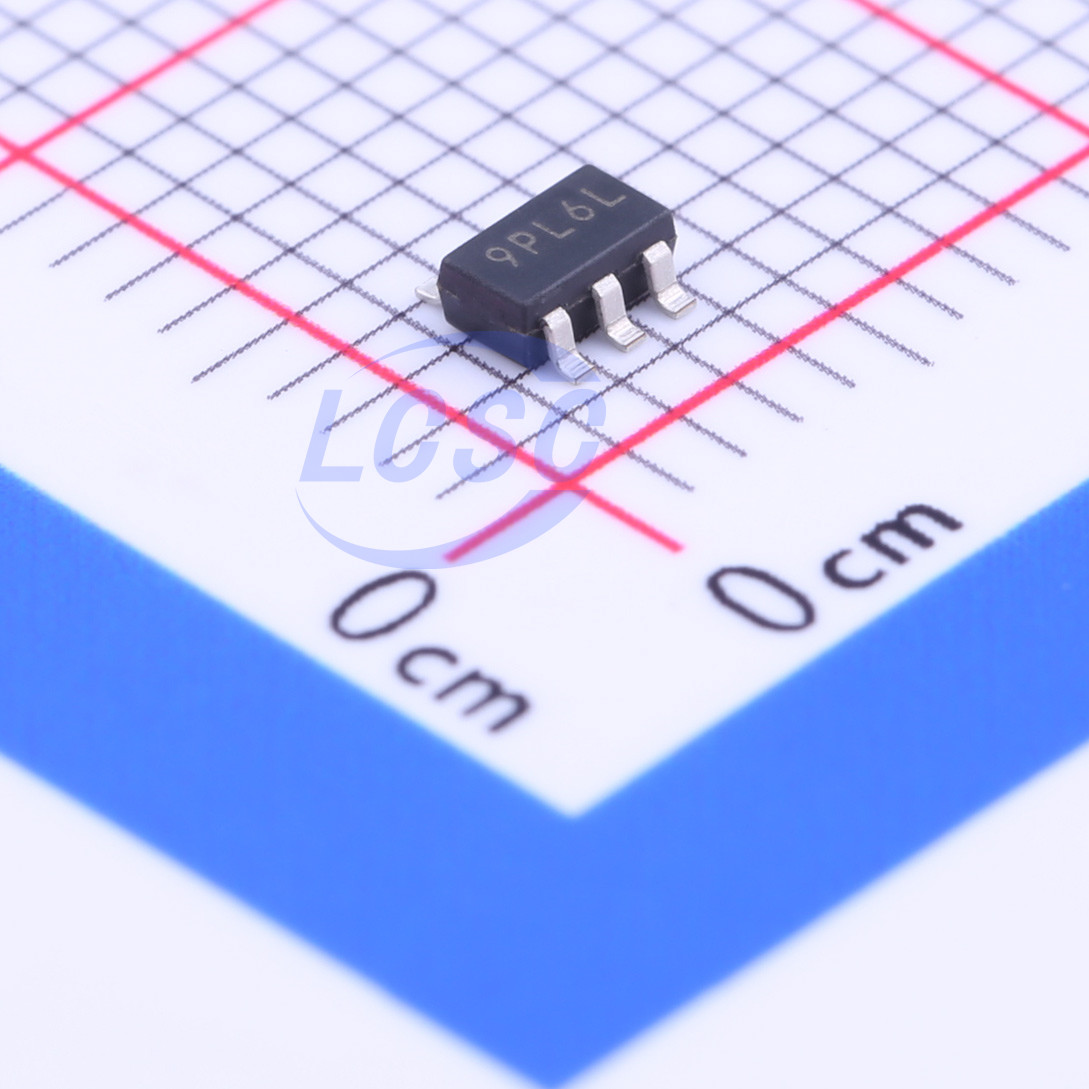

XC6228D282VR-G

The XC6228 series is a high speed LDO regulator that features high accurate, low noise, high ripple rejection, low dropout and low power consumption. The series consists of a voltage reference, an error amplifier, a driver transistor, a current limiter, a phase compensation circuit. The CE function enables the circuit to be in stand-by mode by inputting low level signal. In the stand-by mode, the series enables the electric charge at the output capacitor CL to be discharged via the internal switch, and as a result the VOUT pin quickly returns to the VSS level. The output stabilization capacitor CL is also compatible with low ESR ceramic capacitors. The output voltage is selectable from 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.1V, 3.3V which fixed by laser trimming technologies. The over current protection circuit is built-in. This protection circuit will operate when the output current reaches current limit level.

Applications

• Mobile devices
• Wireless communications
• Modules
• Mobile phones

Key features

• Maximum Output Current: 300mA
• Input Voltage Range: 1.6~5.5V
• Output Voltages: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.1V, 3.3V (±2%)
• Dropout Voltage: 200μV@Iour = 300μA (VOUT = 3.0V)
• Low Power Consumption: 100μA
• Stand-by Current: 0.1μA
• High Ripple Rejection: 80dB@f = 1kHz
• Protection Circuits: Current Limit (400mA), Short Circuit Protection
• CIN = 1μF, CL = 1μF
• Active High, CL High Speed Discharge
• SOT - 25J
• EU RoHS Compliant, Pb Free
• Low ESR Capacitors
• CE Function
• Small Package
• Environmentally Friendly
