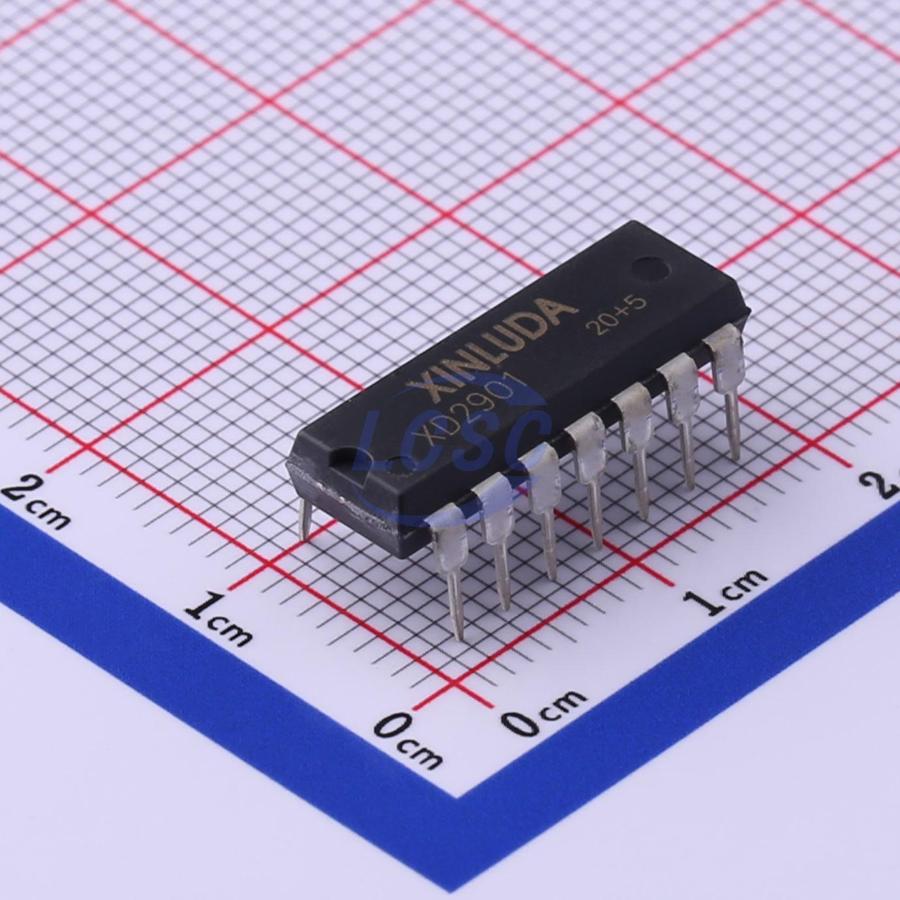

XINLUDADatasheet (PDF)
XD2901
3mV 25nA Four channels DIP-14 Linear Comparators
DIP-14RoHSActive
Quad Differential Comparators
- Manufacturer
- XINLUDA
- Manufacturer part #
- XD2901
- Store part #
- C561295
- Package / case
- DIP-14
- Category
- Linear Comparators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,010 in stock
#C561295
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.09 | ₹90.45 |
| 50+ | ₹13.87 | ₹693.50 |
| 150+ | ₹12.01 | ₹1,801.50 |
| 500+ | ₹10.62 | ₹5,310.00 |
| 2,000+ | ₹9.51 | ₹19,020.00 |
| 5,000+ | ₹8.96 | ₹44,800.00 |
5 × ₹18.09
₹90.45
excl. GST
₹106.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
XD2901
₹90.45 for 5 + GST
Specifications
- Features
- ESD protection
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 3mV
- Ib - Input Bias Current
- 25nA
- Quiescent Current
- 300uA
- Output Mode
- TTL;CMOS
- Number of Channels
- Four channels
- Propagation Delay Time
- 1.3us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2V~30V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.635 g
Overview
The XL/XDx39 and XL/XD2901 comparators feature low offset voltage, high supply voltage capability, low supply current, low input bias current, low propagation delay, and input ruggedness through dedicated ESD clamps.
Applications
- Vacuum robot
- Single phase UPS
- Server PSU
- Cordless power tool
- Wireless infrastructure
- Appliances
- Building automation
- Factory automation & control
- Motor drives
- Infotainment & cluster
Key features
- Maximum rating: up to 36V
- Low input offset: 2 mV
- Low input bias current: 25 nA
- Low supply current: 300 μA per comparator(TYP)
- response time of 1 μsec
- Common-mode input voltage range includes ground
- Differential input voltage range equal to maximum-rated supply voltage: ±36V
- Low output saturation voltage
- Output compatible with TTL, MOS, and CMOS
