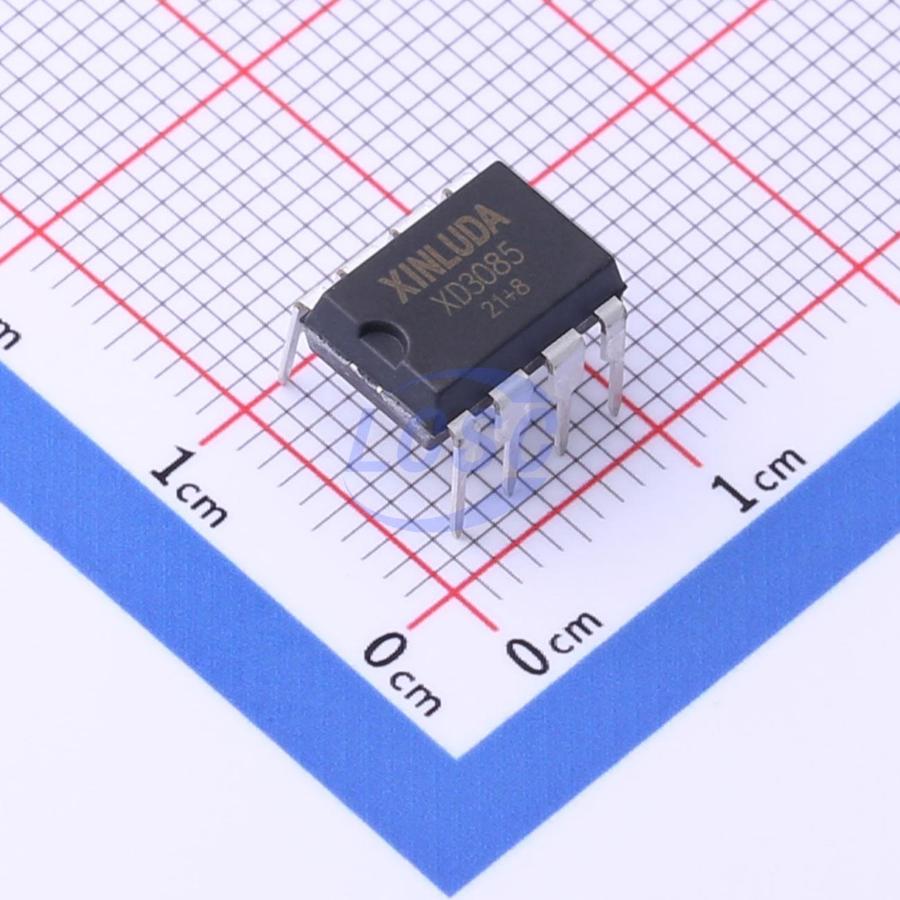

XD3085
4.5V~5.5V Transceiver 500Kbps 256 DIP-8 Drivers, Receivers, Transceivers
DIP-8RoHSActive
Bus Transceivers
- Manufacturer
- XINLUDA
- Manufacturer part #
- XD3085
- Store part #
- C2848424
- Package / case
- DIP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,995 in stock
#C2848424
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.98 | ₹129.90 |
| 50+ | ₹20.44 | ₹1,022.00 |
| 150+ | ₹18.07 | ₹2,710.50 |
| 500+ | ₹15.11 | ₹7,555.00 |
| 2,500+ | ₹13.44 | ₹33,600.00 |
| 5,000+ | ₹12.65 | ₹63,250.00 |
5 × ₹25.98
₹129.90
excl. GST
₹153.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
XD3085
₹129.90 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 500Kbps
- Number of Nodes
- 256
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Fail-safe
- Number of Receivers
- 1
- Quiescent Supply Current
- 600uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.46 g
Overview
The XD/ XL3085 is a +5V, half-duplex, ±15KV ESD protected RS485/RS-422 transceiver circuit. The circuit contains one driver and one receiver. The XD/XL3085 is a half-duplex type with drive enable (DE) and receive enable (RE) pins, and the drive and receive outputs are high-impedance when in the off state. The XD/XL3085 has a failsafe circuit to ensure that the receiver output is correct when the receiver input is open or shorted. The XD/XL3085 receiver input impedance is 1/8 unit load, allowing up to 256 transceivers to be hooked up to the bus.
Applications
- Industrial control
- Meters
- Industrial motor drives
- Automatic HVAC systems
- RS485/RS422 interface
Key features
- Electrostatic Protection (ESD): L1/L2 ±15KV - Human Body Mode (HBM)
- bus allows up to 256 transceivers to be hooked up
- Strong swing rate limiting helps achieve error-free data transmission
- Tri-state outputs
- DIP8/SOP8 package
- Complies with Q/GDW 11179.11-2015 Technical Specification for Components for Energy Meters
