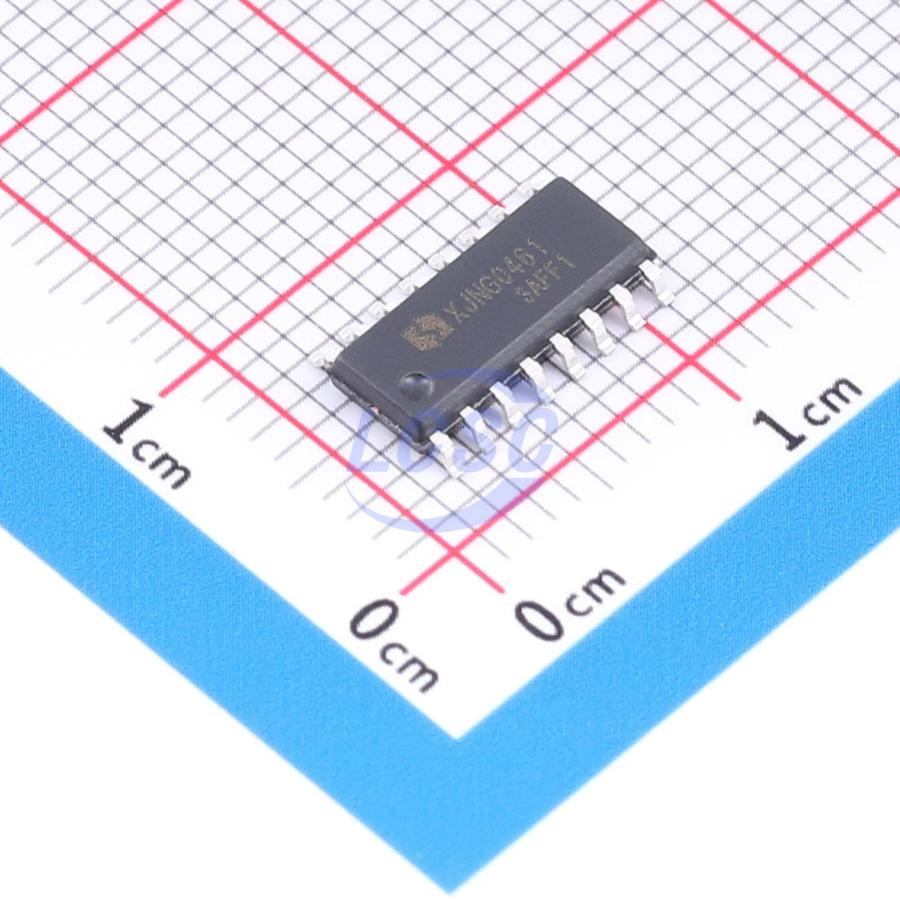

XJNG0461
5V~28V 300mA 50mA SOP-16 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- XJNG0461
- Store part #
- C53436482
- Package / case
- SOP-16
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,640 in stock
#C53436482
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.33 | ₹146.65 |
| 50+ | ₹23.55 | ₹1,177.50 |
| 150+ | ₹21.06 | ₹3,159.00 |
| 500+ | ₹17.98 | ₹8,990.00 |
| 2,500+ | ₹16.60 | ₹41,500.00 |
| 4,000+ | ₹15.77 | ₹63,080.00 |
5 × ₹29.33
₹146.65
excl. GST
₹173.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XJNG0461
₹146.65 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 80ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 500uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 5V~28V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 300mA
- Rise Time
- 300ns
- Fall Time
- 60ns
- Features
- Over-temperature protection;Undervoltage Protection
- Current - Output High(IOH)
- 50mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.35 g
Overview
XJNG0461 is a three-phase high-speed power MOSFET driver featuring 6 channels with a maximum operating voltage of 40V. The high-low voltage compatible process enables monolithic integration of both high-side and low-side gate drive circuits. Each phase provides dedicated high-side and low-side input signals along with two output signals. Logic inputs are compatible with standard CMOS or LSTTL outputs, with logic input levels as low as 3.3V. The XJNG0461 delivers a 10V gate-source voltage for both PMOS and NMOS outputs, with built-in dead-time control to prevent shoot-through between the high-side and low-side PMOS and NMOS of the same phase. To simplify PCB design, the XJNG0461 integrates an onboard 5V/40mA LDO.
Applications
- Medium/small power motor drives
- Power MOSFET drives
- Half-bridge/full-bridge power converters
- Any complementary drive converters
Key features
- P/N MOS half-bridge three-phase output
- Maximum operating voltage up to 40V
- Compatible with 3.3V, 5V, and 15V input logic
- dv/dt immunity up to ±50V/ns
- P/N MOS |VGS| up to 10V
- Built-in 5V/40mA LDO
- Built-in over-temperature protection
- Gate drive voltage: 5V to 40V
- Wide temperature range -40~125°C
- Shoot-through prevention logic
- Built-in 130ns dead time
- Turn-on/turn-off propagation delay: Ton/Toff = 80ns/30ns
- High-side/low-side propagation delay matched
- Drive current capability: source/sink = 50mA/300mA
- Built-in UVLO circuit
- UVLO positive-going threshold 4.5V
- UVLO negative-going threshold 4.3V
- RoHS compliant
- SOP16
