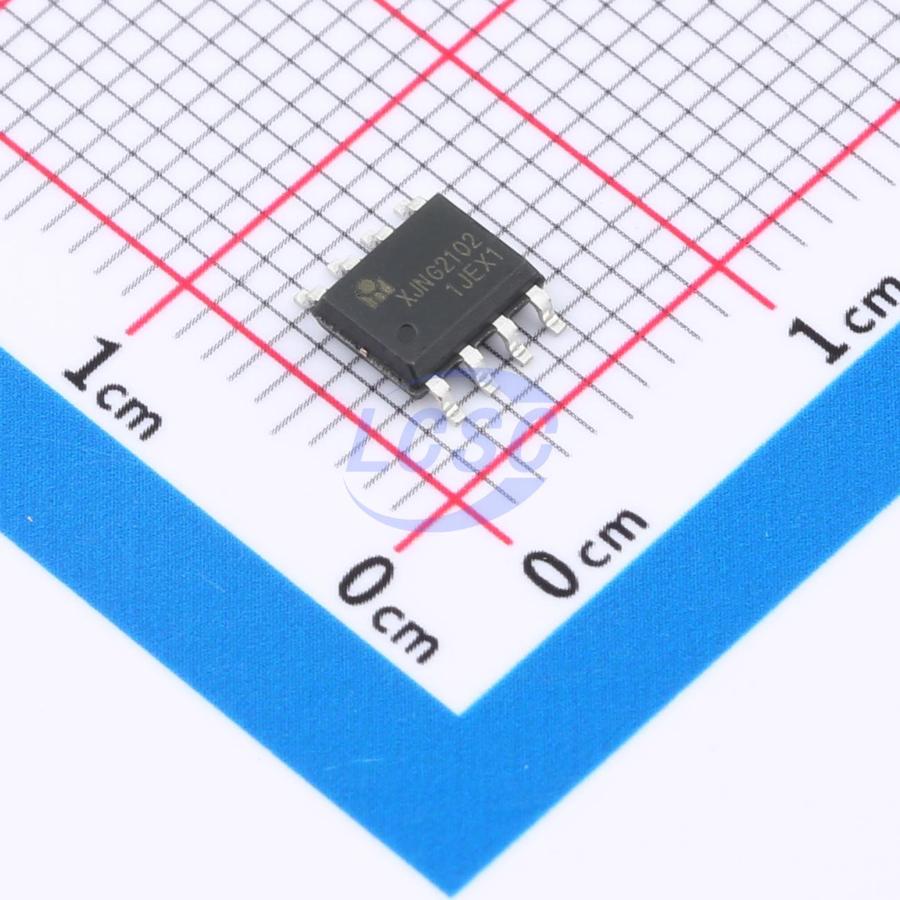

XJNG2102
6V~20V 1A 1A SOIC-8 Gate Drivers
Half Bridge Driver
- Manufacturer
- WXNSIC
- Manufacturer part #
- XJNG2102
- Store part #
- C48542888
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C48542888
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.69 | ₹103.45 |
| 50+ | ₹16.07 | ₹803.50 |
| 150+ | ₹14.10 | ₹2,115.00 |
| 500+ | ₹11.64 | ₹5,820.00 |
| 2,500+ | ₹10.54 | ₹26,350.00 |
| 4,000+ | ₹9.88 | ₹39,520.00 |
5 × ₹20.69
₹103.45
excl. GST
₹122.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XJNG2102
₹103.45 for 5 + GST
Specifications
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 140ns
- Quiescent Current
- 160uA
- Voltage - Supply
- 6V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1A
- Rise Time
- 50ns
- Fall Time
- 40ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 1A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.181 g
Overview
The XJNG2102 is a high voltage, high speed power MOSFET drivers with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET in the high-side configuration which operates up to 200 V.
Applications
- Switch Mode Power Supplies (SMPS)
- Small and medium- power motor driver
- Power MOSFET driver
- Half / Full−Bridge Power Converters Any Complementary Drive Converters
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +200 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 6 V to 18 V
- 3.3 V input logic compatible
- Typically output Source/Sink current capability 1A/1A
