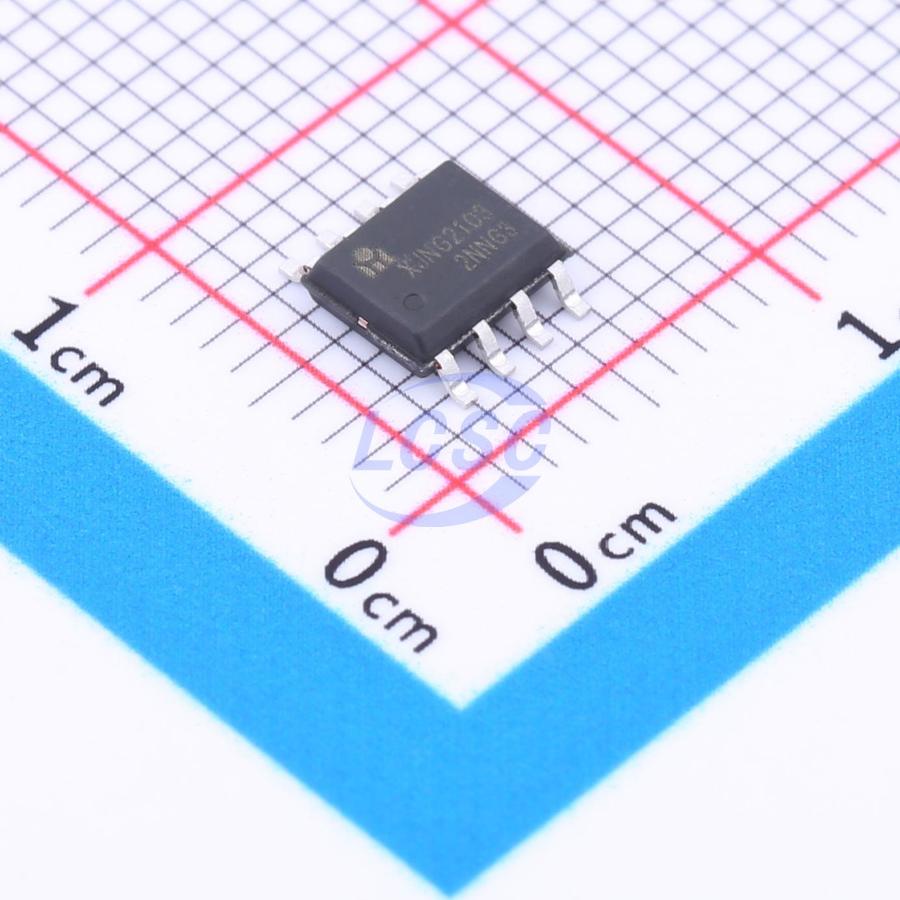

XJNG2103
9V~20V 1A 1A SOIC-8 Gate Drivers
Half Bridge Driver
- Manufacturer
- NCE
- Manufacturer part #
- XJNG2103
- Store part #
- C2887735
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27,230 in stock
#C2887735
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.43 | ₹102.15 |
| 50+ | ₹15.80 | ₹790.00 |
| 150+ | ₹13.48 | ₹2,022.00 |
| 500+ | ₹11.74 | ₹5,870.00 |
| 2,500+ | ₹10.35 | ₹25,875.00 |
| 4,000+ | ₹9.66 | ₹38,640.00 |
5 × ₹20.43
₹102.15
excl. GST
₹120.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XJNG2103
₹102.15 for 5 + GST
Specifications
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 140ns
- Quiescent Current
- 160uA
- Voltage - Supply
- 9V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 1A
- Rise Time
- 50ns
- Fall Time
- 40ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 1A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Overview
The XJNG2103 is a high voltage, high speed power MOSFET drivers with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET in the high-side configuration which operates up to 200 V.
Applications
- Switch Mode Power Supplies (SMPS)
- Small and medium-power motor driver
- Power MOSFET driver
- Half / Full−Bridge Power Converters
- Any Complementary Drive Converters
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +200 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 6 V to 18 V
- 3.3 V input logic compatible
- Typically output Source/Sink current capability 1A/1A
