WXNSICDatasheet (PDF)

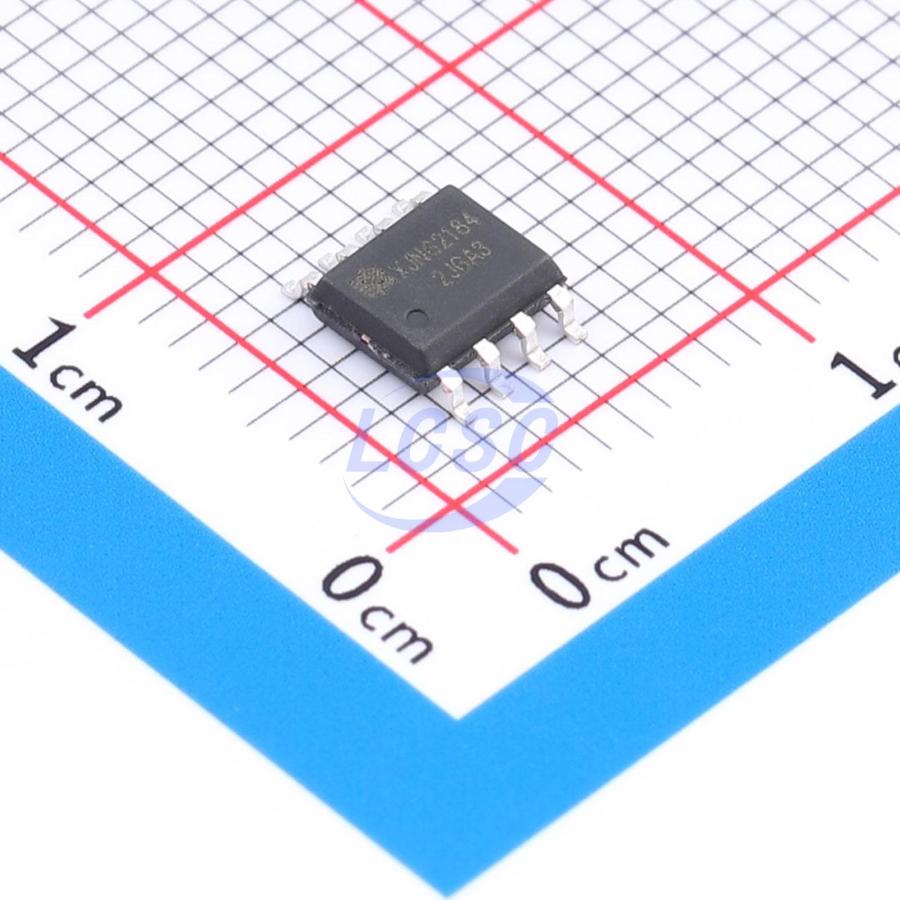

XJNG2184
4.5A 10V~20V 5A SOP-8 Gate Drivers
SOP-8RoHSActive
- Manufacturer
- WXNSIC
- Manufacturer part #
- XJNG2184
- Store part #
- C55862210
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C55862210
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.88 | ₹88.88 |
| 10+ | ₹71.93 | ₹719.30 |
| 30+ | ₹63.45 | ₹1,903.50 |
| 100+ | ₹55.20 | ₹5,520.00 |
| 500+ | ₹50.21 | ₹25,105.00 |
| 1,000+ | ₹47.59 | ₹47,590.00 |
1 × ₹88.88
₹88.88
excl. GST
₹104.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XJNG2184
₹88.88 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Rise Time
- 20ns
- Low Level Delay Time
- 600ns
- High Level Delay Time
- 130ns
- Fall Time
- 12ns
- Current - Output High(IOH)
- 4.5A
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Under-voltage lockout;过压钳位
- Load Type
- MOSFET;IGBT
- Quiescent Current
- 230uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 5A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.101 g
