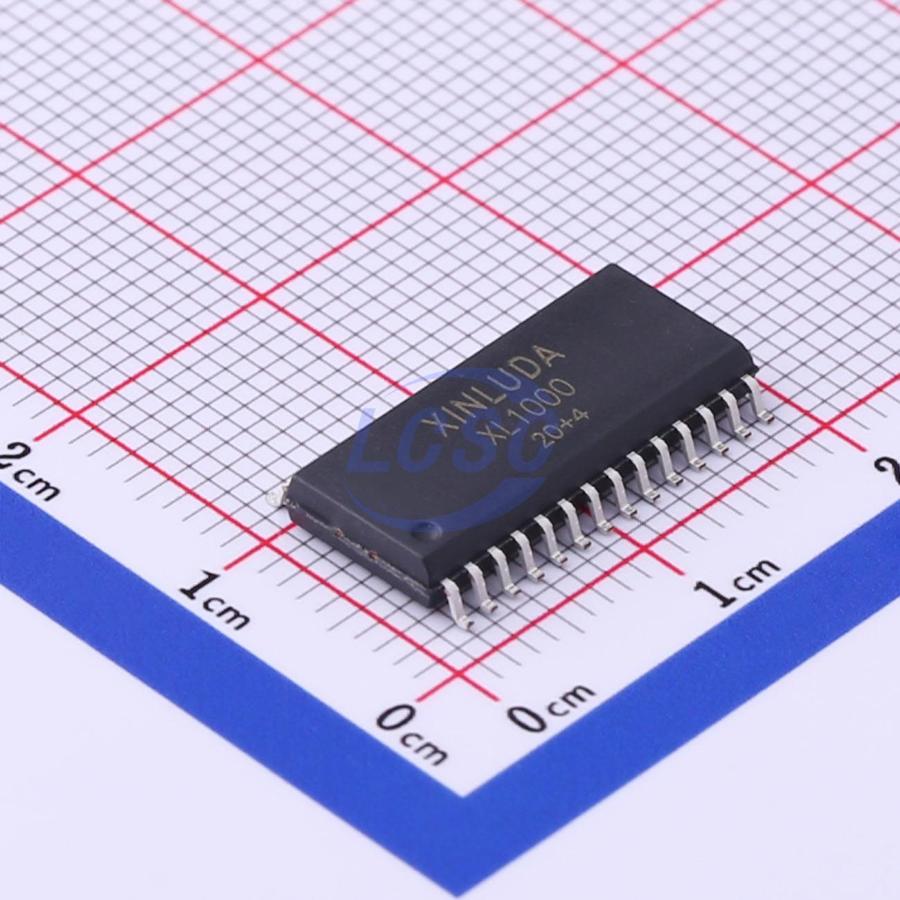

XL1000

The XL1000/XD1000 serves as a standalone CAN controller, designed for area network control in mobile applications as well as general industrial environments. Furthermore, it introduces a novel operational mode known as PeliCAN, which supports the CAN 2.0B protocol equipped with numerous enhanced features.

Key features

• Compatibility with the default BasicCAN mode
• An expanded 64-byte receive buffer (FIFO)
• Full compatibility with the CAN 2.0B protocol
• Support for both 11-bit and 29-bit identifiers
• Bit rates reaching up to 1Mbits/s
• Read/write access to error counters
• Programmable error warning limits
• A register for the most recent error code
• Interrupts for every CAN bus error
• Detailed arbitration lost interrupt control through specific control bits
• Single shot transmission (without retransmission)
• Silent mode (no acknowledgment errors)
• Support for hot-plugging (software bit-rate detection)
• Expanded acceptance filter capabilities (4-byte code and 4-byte mask)
• Self-message reception (self-reception request)
• A 24MHz clock frequency
• Interfaces for multiple types of microprocessors
• Programmable CAN output driver configuration
• An operating temperature range of -40°C to +125°C
