XINLUDADatasheet (PDF)

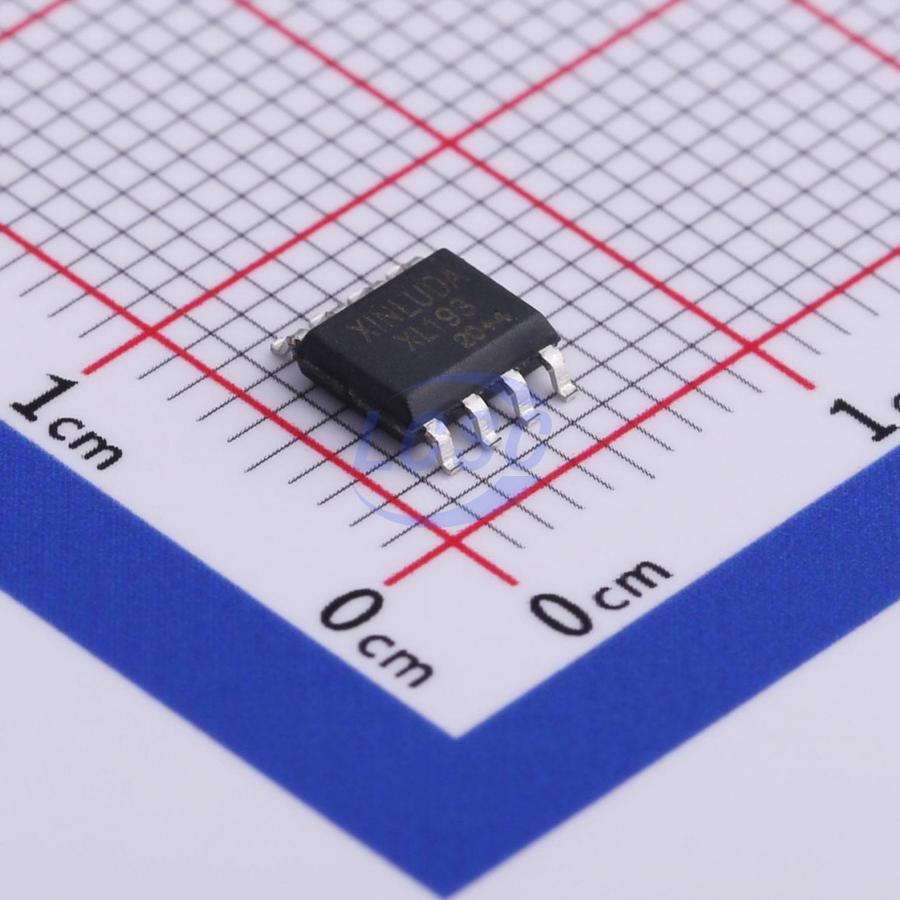

XL193
2mV 25nA 2 SOIC-8 Linear Comparators
SOIC-8RoHSActive
Low-power,dual-voltage comparators
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL193
- Store part #
- C513504
- Package / case
- SOIC-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C513504
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.72 | ₹97.20 |
| 100+ | ₹7.75 | ₹775.00 |
| 300+ | ₹6.76 | ₹2,028.00 |
| 2,500+ | ₹5.74 | ₹14,350.00 |
| 5,000+ | ₹5.15 | ₹25,750.00 |
| 10,000+ | ₹4.84 | ₹48,400.00 |
10 × ₹9.72
₹97.20
excl. GST
₹114.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL193
₹97.20 for 10 + GST
Specifications
- Dual Supply
- 1V~18V;-18V~-1V
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 25nA
- Quiescent Current
- 400uA
- Output Mode
- TTL;MOS;CMOS
- Number of Channels
- 2
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- -55℃~+125℃
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.212 g
Overview
The XL193 devices consist of two independent low voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. These comparators also have a unique characteristic in that the input common- mode voltage range includes ground even though operated from a single power supply voltage.
Key features
- Wide single-supply voltage range or dual supplies: 2 V to 36 V or ±1 V to ±18 V
- Very low supply current (0.45 mA) independent of supply voltage (1 mW/comparator at 5 V)
- Low input bias current: 20 nA typ.
- Low input offset current: ±3 nA typ.
- Low input offset voltage: ±1 mV typ.
- Input common-mode voltage range includes ground
- Low output saturation voltage: 80 mV typ. (Isink = 4 mA)
- Differential input voltage range equal to the supply voltage
