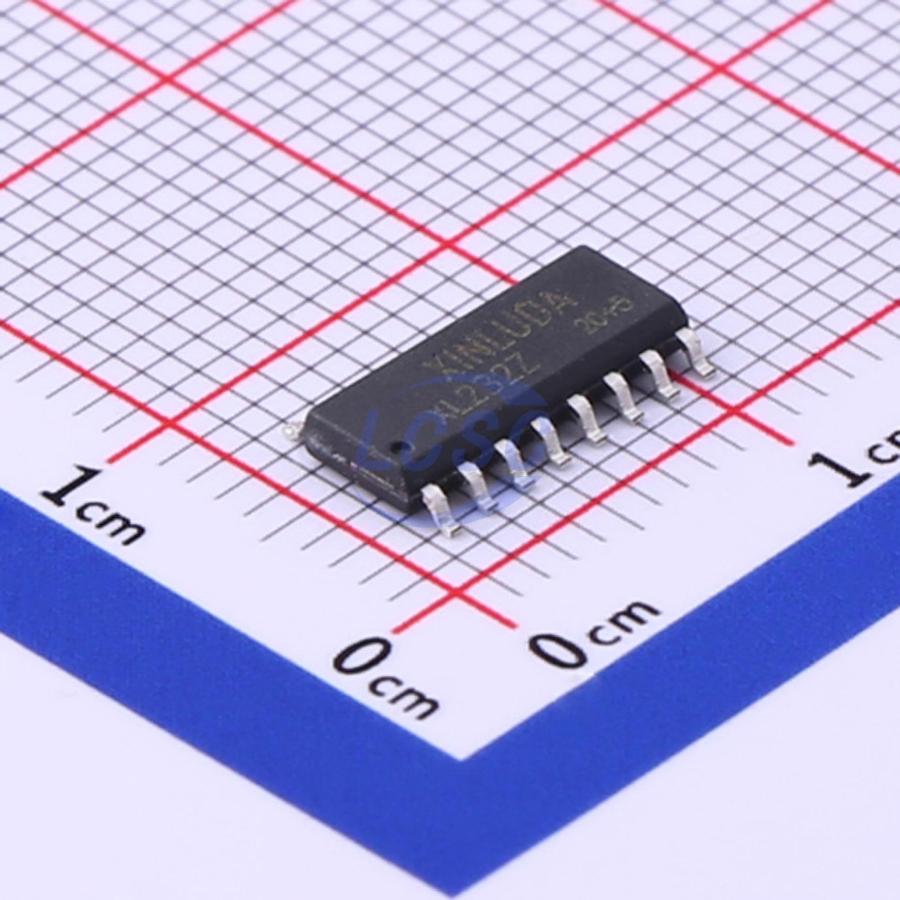

XL232Z
Transceiver 5V SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
+5V-Powered, Multichannel RS-232 Drivers/Receivers
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL232Z
- Store part #
- C561296
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,640 in stock
#C561296
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.91 | ₹199.55 |
| 50+ | ₹31.06 | ₹1,553.00 |
| 150+ | ₹27.28 | ₹4,092.00 |
| 500+ | ₹22.56 | ₹11,280.00 |
| 2,500+ | ₹19.43 | ₹48,575.00 |
| 5,000+ | ₹18.18 | ₹90,900.00 |
5 × ₹39.91
₹199.55
excl. GST
₹235.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL232Z
₹199.55 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 5V
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Low-power mode
- Number of Receivers
- 2
- Quiescent Supply Current
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.306 g
Overview
The XL/XD232 series of line drivers/receivers is intended for all ElA/TIA - 232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The XL/XD232 series are offered in 4 different packages with temperatures from -40℃ to +85℃
Applications
- Interface Translation
- Multidrop RS - 232 Networks
- Portable Diagnostics Equipment
Key features
- Saves Board Space
- Integrated Charge Pump Circuitry
- Eliminates the Need for a Bipolar ±12V Supply
- Enables Single Supply Operation from +5V Supply
- Saves Power for Reduced Power Requirements
