XINLUDADatasheet (PDF)

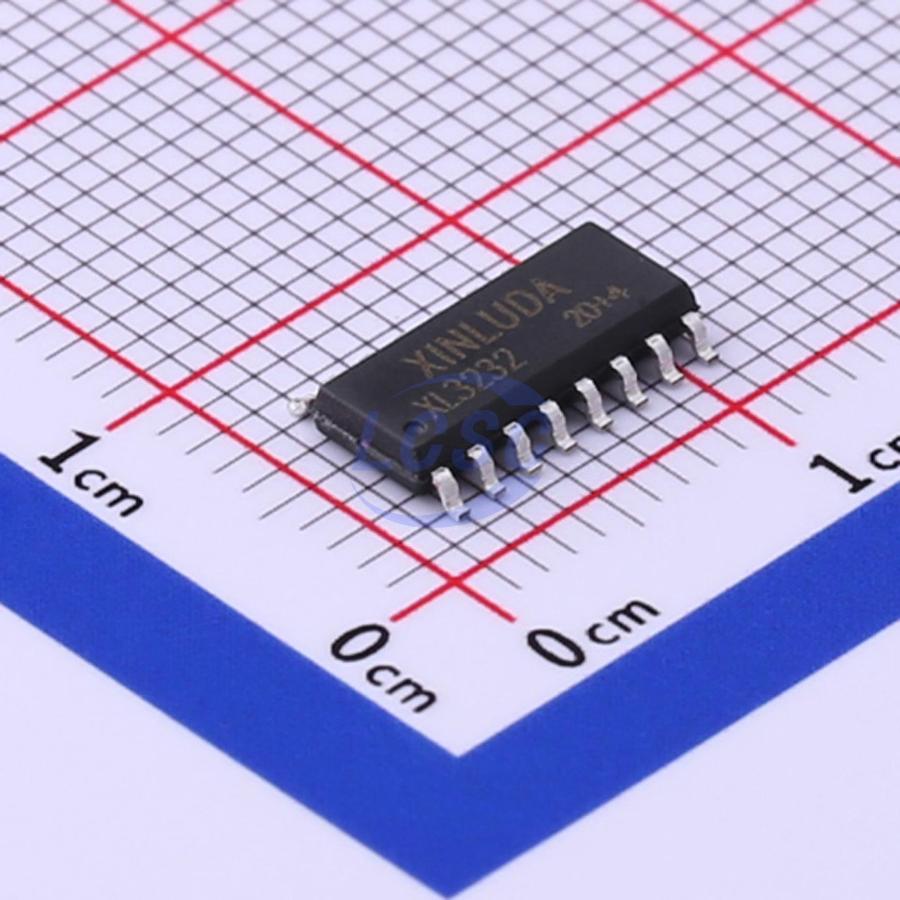

XL3232
Transceiver 3V~5.5V 250Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
Multichannel RS-232 Line Drivers and Receivers with ESD Protection
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL3232
- Store part #
- C521169
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,940 in stock
#C521169
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.84 | ₹239.20 |
| 50+ | ₹37.11 | ₹1,855.50 |
| 150+ | ₹32.52 | ₹4,878.00 |
| 500+ | ₹27.13 | ₹13,565.00 |
| 2,500+ | ₹24.58 | ₹61,450.00 |
| 5,000+ | ₹23.06 | ₹1,15,300.00 |
5 × ₹47.84
₹239.20
excl. GST
₹282.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL3232
₹239.20 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 10mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.316 g
Overview
The 3232 series devices device consists of two line drivers, two line receivers, and a dual charge-pump circuit with 15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30 - V/μs driver output slew rate.
Applications
- Industrial PC
- Wired Networks
- Data Centre and Enterprise Networking
- Battery-Powered Systems
- PDAs
- Laptops
- Portable Computers
- Pocket PC
- Handheld Devices
Key features
- CRS-232 Bus-Pin ESD Protection
- ±15 kV Using Human-Body Model (HBM)
- ±8 kV (IEC6 1000-4-2, Contact Discharge)
- ±15 kV (IEC6 1000-4-2, Air Gap Discharge)
- Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
- Operates With 3-V to 5.5-V VCC Supply
- Operates Up To 250 kbit/s
- Two Drivers and Two Receivers
- Low Supply Current: 300 μA (Typical)
- External Capacitors: 4×0.1 μF
- Accepts 5-V Logic Input With 3.3-V Supply
