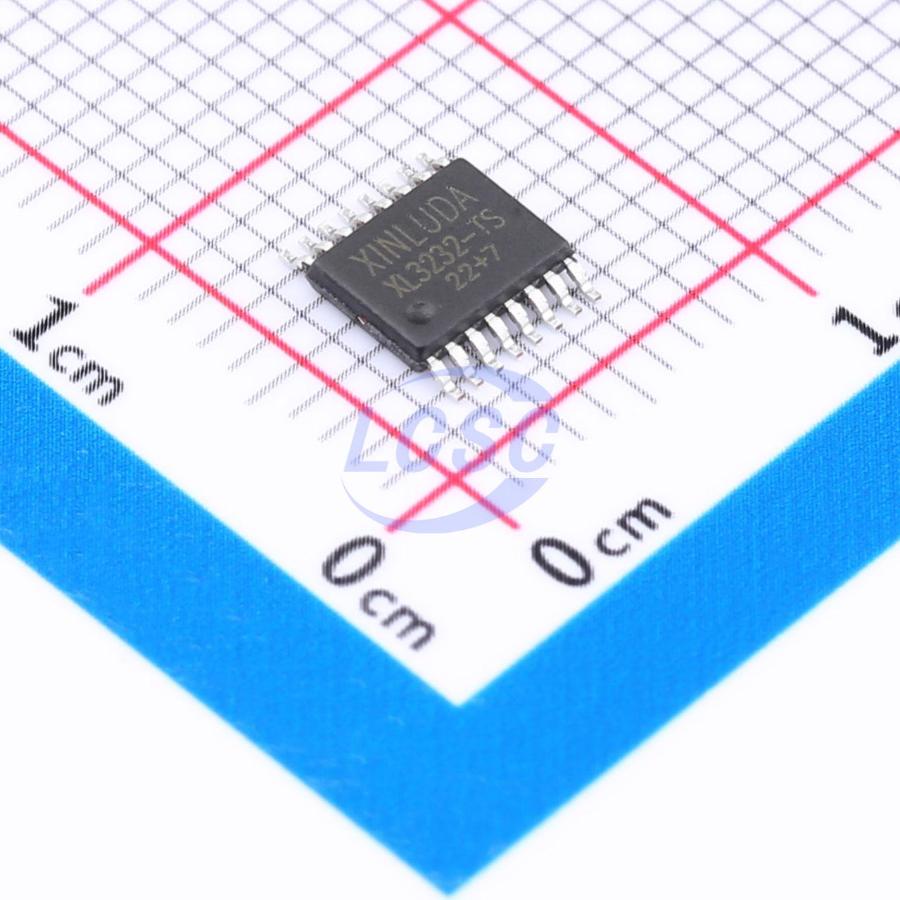

XL3232-TS

The 3232 series devices device consists of two line drivers, two line receivers, and a dual charge-pump circuit with 15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30 - V/μs driver output slew rate.

Applications

• Industrial PC
• Wired Networks
• Data Centre and Enterprise Networking
• Battery-Powered Systems
• PDAs
• Laptops
• Portable Computers
• Pocket PC
• Handheld Devices

Key features

• CRS-232 Bus-Pin ESD Protection
• ±15 kV Using Human-Body Model (HBM)
• ±8 kV (IEC6 1000-4-2, Contact Discharge)
• ±15 kV (IEC6 1000-4-2, Air Gap Discharge)
• Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
• Operates With 3-V to 5.5-V VCC Supply
• Operates Up To 250 kbit/s
• Two Drivers and Two Receivers
• Low Supply Current: 300 μA (Typical)
• External Capacitors: 4×0.1 μF
• Accepts 5-V Logic Input With 3.3-V Supply
