XINLUDADatasheet (PDF)

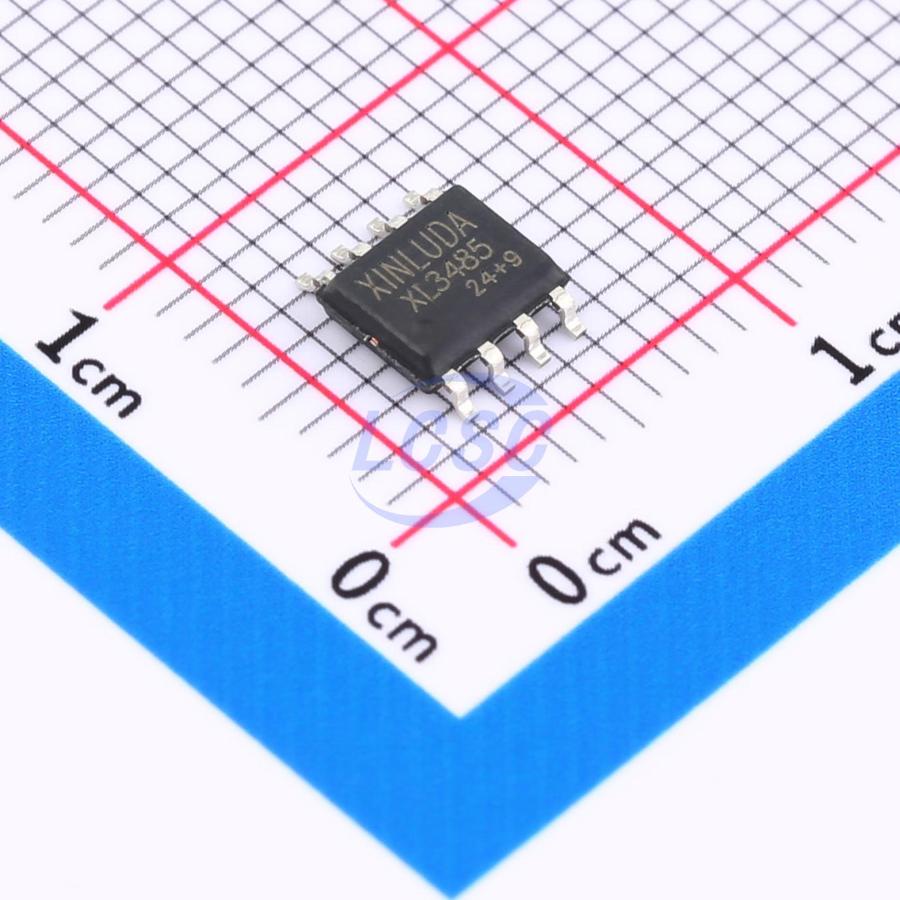

XL3485
3V~3.6V Transceiver 12Mbps 256 SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
XD/XL3485 3.3V Powered, Half-Duplex RS485 Transceivers
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL3485
- Store part #
- C609753
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,405 in stock
#C609753
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.18 | ₹120.90 |
| 50+ | ₹19.29 | ₹964.50 |
| 150+ | ₹17.20 | ₹2,580.00 |
| 500+ | ₹14.58 | ₹7,290.00 |
| 2,500+ | ₹12.85 | ₹32,125.00 |
| 5,000+ | ₹12.15 | ₹60,750.00 |
5 × ₹24.18
₹120.90
excl. GST
₹142.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL3485
₹120.90 for 5 + GST
Specifications
- Voltage - Supply
- 3V~3.6V
- Type
- Transceiver
- Data Rate
- 12Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 520uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.232 g
Overview
XD/XL3485 is a 3.3V, half-duplex, low-power RS-485 transceiver fully compliant with TIA/EIA-485 standard requirements. The XD/XL3485 consists of a driver and a receiver, both of which can be independently enabled and disabled. When both are disabled, the driver and receiver enter a high-impedance state. The XD/XL3485 features 1/8-unit-load characteristics, allowing up to 256 XD/XL3485 transceivers to be connected in parallel on the same communication bus. Error-free data transmission at up to 12 Mbps can be achieved. The XD/XL3485 operates over a supply voltage range of 3.0 to 3.6 V. It provides failsafe protection, over-temperature protection, current limiting, and overvoltage protection.
