XINLUDA

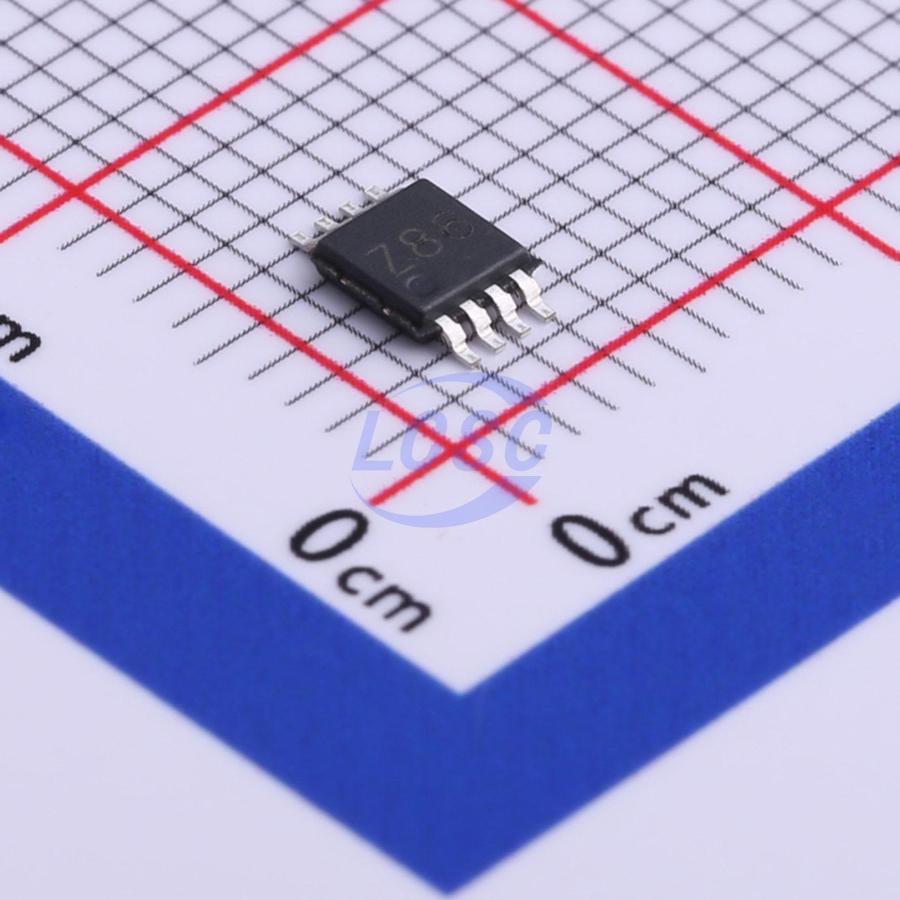

XL386-MS

5mA 4V~12V 1-Channel 325mWx1@8Ω Class AB MSOP-8 Audio Amplifiers

MSOP-8RoHSActive

Low-Voltage Audio Power Amplifiers

Manufacturer: XINLUDA
Manufacturer part #: XL386-MS
Store part #: C556284
Package / case: MSOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,840 in stock

#C556284

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹11.75	₹58.75
50+	₹9.23	₹461.50
150+	₹7.98	₹1,197.00
500+	₹7.03	₹3,515.00
2,500+	₹6.27	₹15,675.00
5,000+	₹5.89	₹29,450.00

Quantity (min 5, multiples of 5)

5 × ₹11.75

₹58.75

excl. GST

₹69.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

XL386-MS

₹58.75 for 5 + GST

Specifications

Quiescent Current: 5mA
Voltage - Supply: 4V~12V
Features: Analog voltage gain
Total Harmonic Distortion + Noise (THD+N): 0.2%
Operating Temperature: 0℃~+70℃
Speaker Channels: 1-Channel
Output Power: 325mWx1@8Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 50dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.176 g

Overview

The XL/XD386 series are power amplifiers intended for use in low voltage consumer applications. The gain is set internally to 20 to minimize the number of external components, but can be set to any value between 20 and 200 by adding external resistors and capacitors between pins 1 and 8. The input is referenced to ground and the output is automatically biased to half the supply voltage. The XL/XD386 series consume only 24mW of quiescent power from a 6V supply, making them ideal for battery operation.

Applications

AM-FM radio amplifiers
Portable Tape Player Amplifiers
Walkie Talkies
TV sound systems
Line drivers
Ultrasonic Driver
Small Servo Drivers
Power converters

Key features

Battery powered
Extremely low external component count
Wide supply voltage range: 4V to 12V
Low quiescent current consumption: 5mA (Typical)
Voltage gain range: 20 to 200
Ground-referenced input
Auto-centered output quiescent voltage
Low distortion: 0.2% (AV = 20, VS = 6V, RL = 8Ω, PO = 125mW, f = 1kHz)
Three kinds of available packages: -SOP8 (XL386) -DIP8 (XD386-1) -MSOP (XL386-MS)
