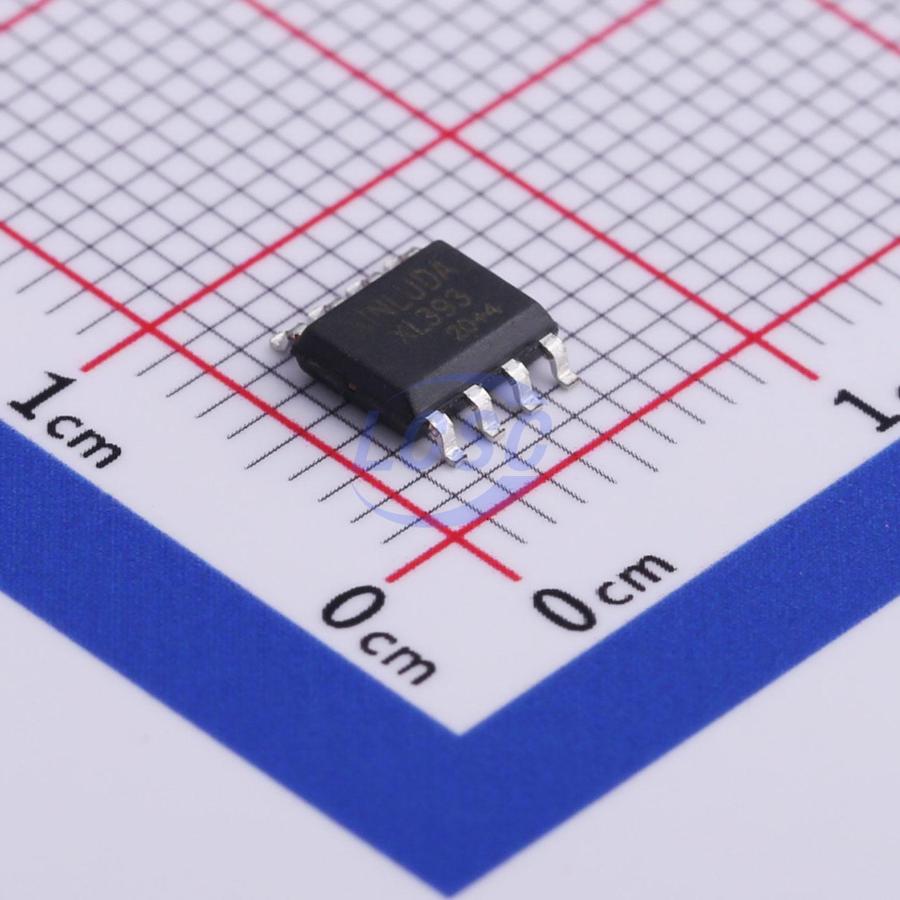

XL393
2mV 25nA 2 SOP-8 Linear Comparators
Dual independent voltage comparators
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL393
- Store part #
- C513502
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,010 in stock
#C513502
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.50 | ₹75.00 |
| 100+ | ₹5.97 | ₹597.00 |
| 300+ | ₹5.21 | ₹1,563.00 |
| 2,500+ | ₹4.42 | ₹11,050.00 |
| 5,000+ | ₹3.97 | ₹19,850.00 |
| 10,000+ | ₹3.73 | ₹37,300.00 |
10 × ₹7.50
₹75.00
excl. GST
₹88.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL393
₹75.00 for 10 + GST
Specifications
- Output Type
- Open Collector
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 800uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- TTL;MOS;CMOS
- Propagation Delay Time
- 300ns
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us;0.3us
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.236 g
Overview
These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and Vcc is at least 1.5 V more positive than the input common - mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open - collector outputs to achieve wired - AND relationships. The XL293D - 8 and XD293 devices are characterized for operation from - 25°C to 85°C. The XL393 and XD393 devices are characterized for operation from 0°C to 70°C. The XL2903 device is characterized for operation from - 40°C to 125°C.
Applications
- Chemical or Gas Sensor
- Desktop PC
- Motor Control: AC Induction
- Weigh Scale
Key features
- Single - Supply or Dual Supplies Wide Range of Supply Voltage Maximum Rating: 2 V to 36 V
- Tested to 30 V: Non - V Devices Tested to 32 V: V - Suffix Devices
- Low Supply - Current Drain Independent of Supply Voltage: 0.4 mA (Typical) Per Comparator
- Low Input Bias Current: 25 nA (Typical)
- Low Input Offset Voltage: 2 mV (Typical)
- Common - Mode Input Voltage Range Includes Ground
- Differential Input Voltage Range Equal to Maximum - Rated Supply Voltage: ±36 V
- Low Output Saturation Voltage
- Output Compatible With TTL, MOS, and CMOS
