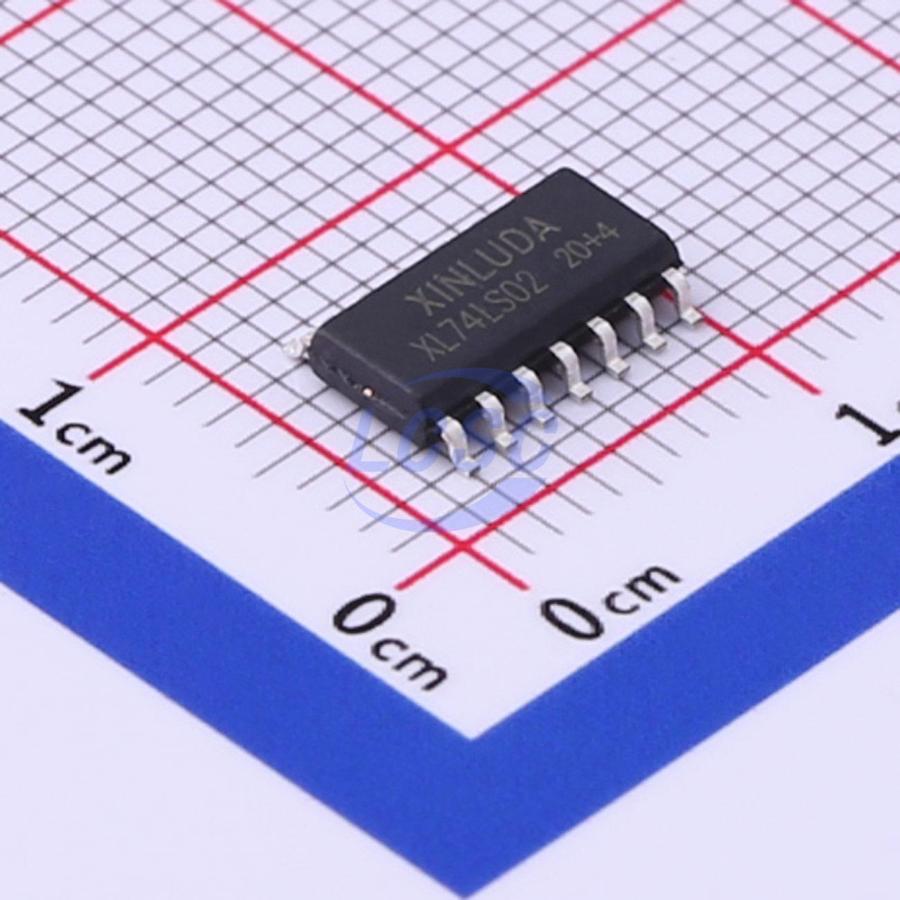

XL74LS02
4.75V~5.25V 20ms@5V,15pF SOP-14 Gates and Inverters
SOP-14RoHSActive
Quadruple 2-Input Positive NOR
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL74LS02
- Store part #
- C513506
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,705 in stock
#C513506
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.26 | ₹116.30 |
| 50+ | ₹20.27 | ₹1,013.50 |
| 150+ | ₹18.99 | ₹2,848.50 |
| 500+ | ₹17.38 | ₹8,690.00 |
| 2,500+ | ₹16.39 | ₹40,975.00 |
| 5,000+ | ₹15.96 | ₹79,800.00 |
5 × ₹23.26
₹116.30
excl. GST
₹137.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL74LS02
₹116.30 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Logic Family
- 74LS
- Output Logic Level - High
- 2.7V
- Voltage - Supply
- 4.75V~5.25V
- Current - Output High(IOH)
- 400uA
- Number of Channels
- 4;2
- Propagation Delay
- 20ms@5V,15pF
- Output Logic Level - Low
- 500mV
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.296 g
Overview
The XL74LS02 and XD74LS02 are logic gate chips and member of 74LSxx IC series which are logic gates. There are four NOR gates in the chip and each gate has two inputs, hence the name QUADRUPLE TWO INPUT NOR GATE. These chips come up with internal protection from discharge using clamp diodes, which keep its protected from any internal voltage leakage activity.
Key features
- Operating voltage range: +4.75V to +5.25V
- Maximum current drawn from the output of the gate: 8mA
- Maximum ESD protection range for IC: 2KV (HBM) and 200V (CDM)
- Typical rise and fall time for IC: about 20ns
- Operating temperature: 0 to 70°C
- Storage temperature range: -50 to 150°C
- Package option: XL74LS02 (SOP14), XD74LS02 (DIP14)
