XINLUDADatasheet (PDF)

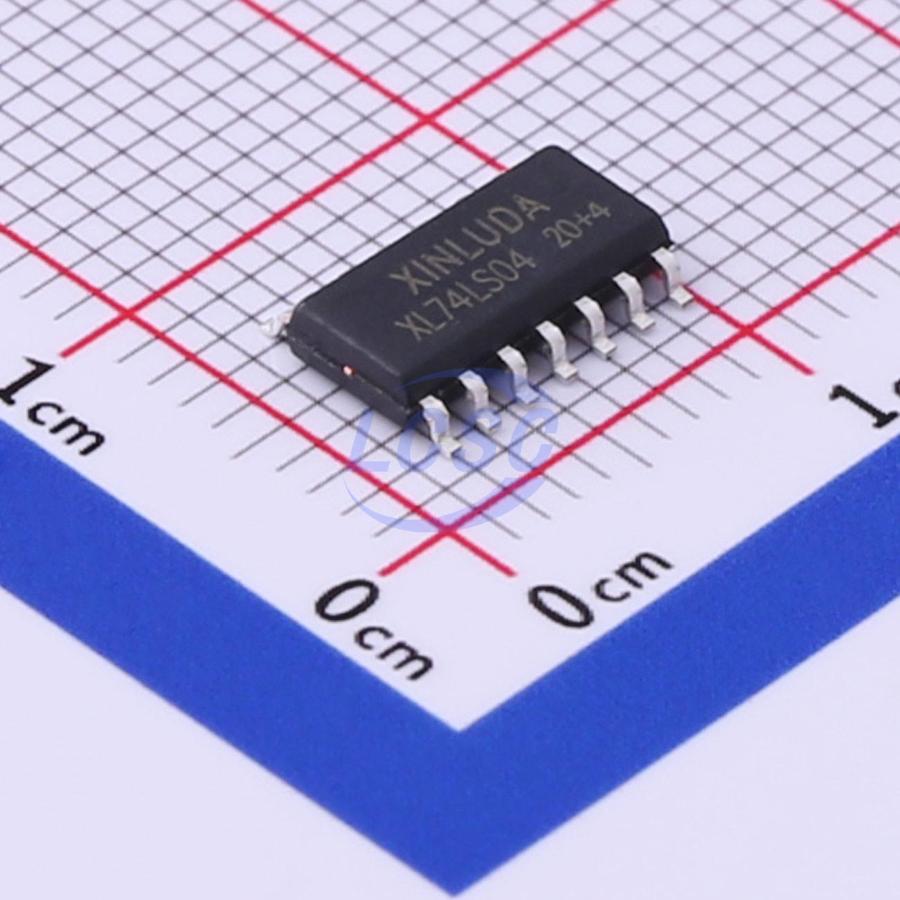

XL74LS04
4.75V~5.25V 15ns@5V,15pF SOP-14 Gates and Inverters
SOP-14RoHSActive
Hex Inverters
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL74LS04
- Store part #
- C513511
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,495 in stock
#C513511
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.92 | ₹129.60 |
| 50+ | ₹20.08 | ₹1,004.00 |
| 150+ | ₹17.58 | ₹2,637.00 |
| 500+ | ₹14.46 | ₹7,230.00 |
| 2,500+ | ₹13.39 | ₹33,475.00 |
| 5,000+ | ₹12.56 | ₹62,800.00 |
5 × ₹25.92
₹129.60
excl. GST
₹152.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL74LS04
₹129.60 for 5 + GST
Specifications
- Logic Family
- 74LS
- Voltage - Supply
- 4.75V~5.25V
- Output Logic Level - Low
- 400mV;250mV~500mV
- Propagation Delay
- 15ns@5V,15pF
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Operating Temperature
- 0℃~+70℃
- Output Logic Level - High
- 2.7V~3.4V
- Current - Output High(IOH)
- 400uA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.296 g
Overview
These devices contain six independent inverters.
