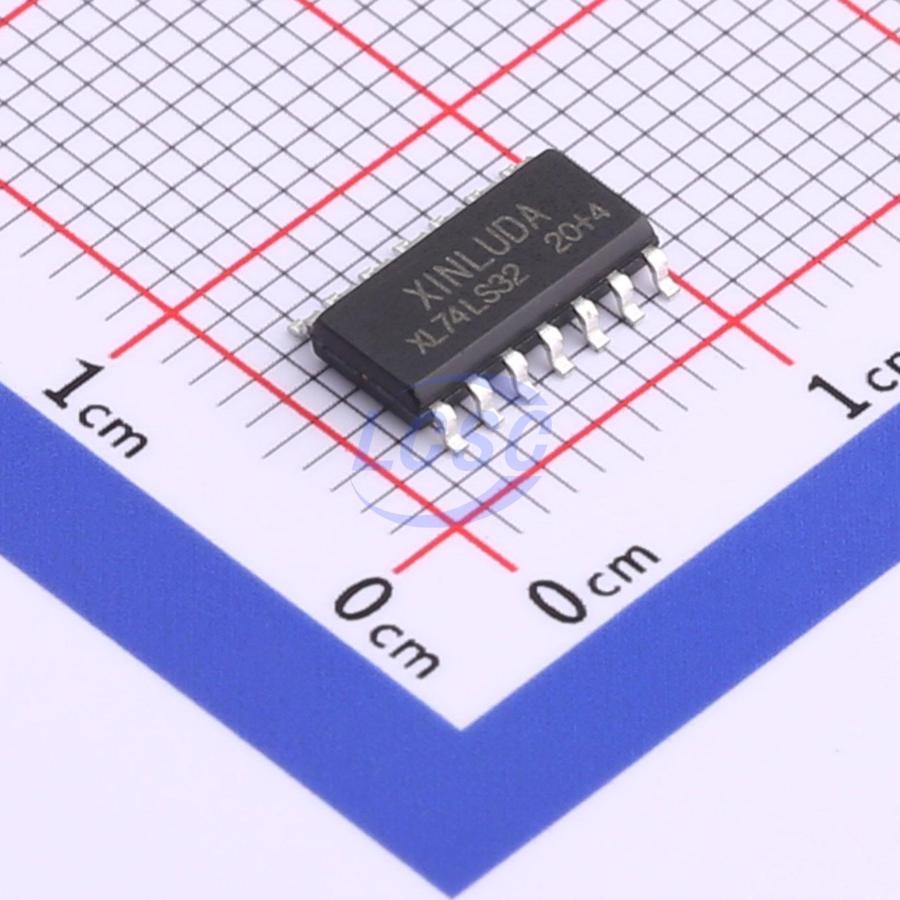

XL74LS32
4.75V~5.25V 22ns@5V,15pF SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
QUADRUPLE 2-INPUT POSITIVE-OR GATES
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL74LS32
- Store part #
- C521171
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,715 in stock
#C521171
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.19 | ₹160.95 |
| 50+ | ₹25.28 | ₹1,264.00 |
| 150+ | ₹22.32 | ₹3,348.00 |
| 500+ | ₹18.63 | ₹9,315.00 |
| 2,500+ | ₹16.97 | ₹42,425.00 |
| 5,000+ | ₹15.98 | ₹79,900.00 |
5 × ₹32.19
₹160.95
excl. GST
₹189.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL74LS32
₹160.95 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Input Logic Level - Low
- 1V
- Input Logic Level - High
- 2V
- Logic Family
- 74LS
- Output Logic Level - High
- 2.7V~3.4V
- Voltage - Supply
- 4.75V~5.25V
- Current - Output High(IOH)
- 400uA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 250mV~400mV;350mV~500mV
- Propagation Delay
- 22ns@5V,15pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
These devices contain four independent 2- input OR gates. The XL74LS32, XD74LS32 are characterized for operation from 0℃ to 70℃.
