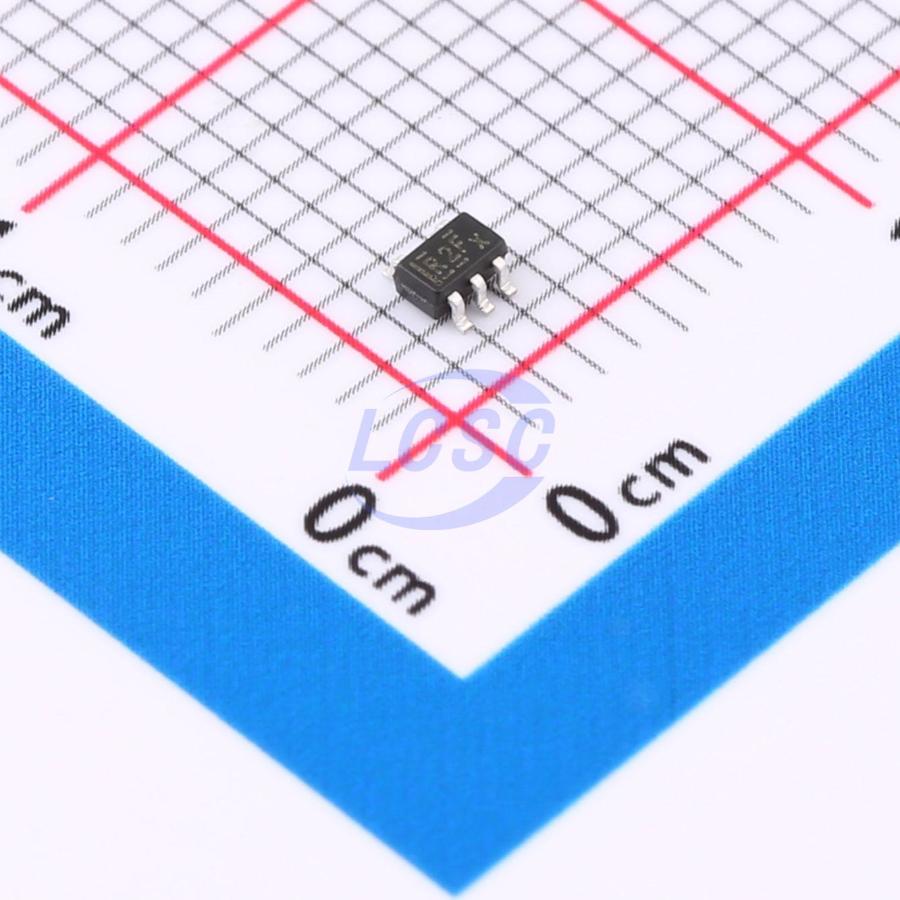

XLMV331IDCKR
Rail-to-rail input 1mV 5pA 1 SC-70-5 Linear Comparators RoHS
General-purpose Low-voltage Comparators
- Manufacturer
- XBLW
- Manufacturer part #
- XLMV331IDCKR
- Store part #
- C48997996
- Package / case
- SC-70-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,250 in stock
#C48997996
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.12 | ₹65.60 |
| 50+ | ₹10.43 | ₹521.50 |
| 150+ | ₹9.08 | ₹1,362.00 |
| 500+ | ₹8.07 | ₹4,035.00 |
| 3,000+ | ₹7.25 | ₹21,750.00 |
| 6,000+ | ₹6.85 | ₹41,100.00 |
5 × ₹13.12
₹65.60
excl. GST
₹77.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XLMV331IDCKR
₹65.60 for 5 + GST
Specifications
- Output Type
- Open-drain
- Rail to Rail
- Rail-to-rail input
- Quiescent Current
- 32uA
- Propagation Delay Time
- 100ns
- Operating Temperature
- -40℃~+125℃
- Features
- EMI filtering/RF suppression;ESD protection
- Input Hysteresis Voltage (Vhys)
- 3mV
- Common Mode Rejection Ratio(CMRR)
- 78dB
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 5pA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Input Offset Current(Ios)
- 10pA
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
XLMV331/393 is a general-purpose low-voltage comparator. The device features open-drain output, achieving an ideal combination of high speed (100 ns propagation delay) and ultra-low power consumption (37 μA), along with rail-to-rail input, low offset voltage (typical 1 mV), high output drive current, and a wide supply voltage range of 1.8 V to 5.5 V. The device is highly adaptable for applications requiring fast response time, power sensitivity, low voltage, and/or compact board space. Additional advantages of the XLMV331/393 include noise immunity provided by internal hysteresis, preventing output oscillation even with slowly changing input signals. Designed with the most advanced technology, the XLMV331/393 delivers superior performance over BiCMOS or bipolar versions on the market. The XLMV331 (single) is available in SOT23-5 and SC70-5 packages, while the XLMV393 (dual) comes in an SOP-8 package.
Applications
- Consumer accessories
- Portable and battery-powered devices
- Alarm and monitoring circuits
- Threshold detectors and discriminators
- Logic level shifting or translation
Key features
- Ultra-low quiescent current (37 μA) for battery power savings
- Fast 100 ns propagation delay (100 mV overdrive)
- Single-supply operating voltage range: 1.8 V to 5.5 V
- Powered from 1.8V/2.5V/3.3V/5V system supply rails
- Rail-to-rail input
- Open-drain output sink current: 30 mA typical at 5V supply
- Internal hysteresis for clean switching transitions
- Internal RF/EMI filter
- Operating temperature range: -40℃ ~ +125℃
- Pin-compatible with LMV331 and LMV393
