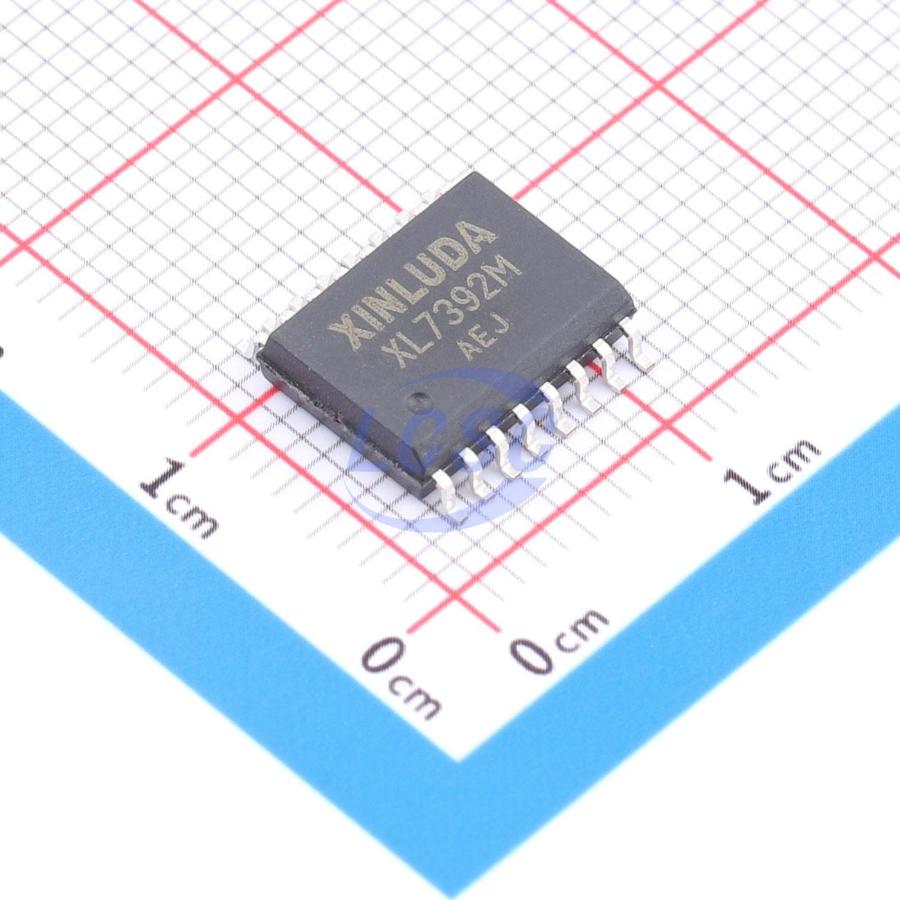

XLN7392MX
10V~20V 3A 3A SOP-16W Gate Drivers
- Manufacturer
- XINLUDA
- Manufacturer part #
- XLN7392MX
- Store part #
- C52148192
- Package / case
- SOP-16W
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C52148192
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.75 | ₹70.75 |
| 10+ | ₹55.31 | ₹553.10 |
| 30+ | ₹48.85 | ₹1,465.50 |
| 100+ | ₹40.70 | ₹4,070.00 |
| 500+ | ₹37.15 | ₹18,575.00 |
| 1,000+ | ₹34.86 | ₹34,860.00 |
1 × ₹70.75
₹70.75
excl. GST
₹83.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
XLN7392MX
₹70.75 for 1 + GST
Specifications
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 40uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- Full bridge
- Operating Temperature
- -40℃~+85℃
- Current - Output Low(IOL)
- 3A
- Rise Time
- 25ns
- Fall Time
- 20ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 3A
- Load Type
- IGBT;MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.081 g
Overview
XLN7392 is a monolithic high-side and low-side gate driver IC capable of driving high-speed MOSFETs and IGBTs at operating voltages up to +600V. It features a fully NMOS-based buffered output stage with high peak current drive capability and minimal cross-conduction. An advanced level-shift circuit allows the high-side gate driver to operate with Vs as low as -9.8V (typical) at VBS = 15V. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The UVLO circuit prevents false triggering when VCC and VBS fall below the specified threshold voltages. Its high current capability and low output voltage drop make the device well suited for half-bridge and full-bridge inverter applications such as switch-mode power supplies and high-power DC-DC converters.
Applications
- High-speed power MOSFET and IGBT gate drivers
- Server power supplies
- Uninterruptible power supplies (UPS)
- Telecom system power supplies
- Distributed power supplies
Key features
- Floating channel supports bootstrap operation up to +600V
- 3A/3A sink/source drive capability
- Common-mode dv/dt noise cancellation circuit
- 3.3V logic level compatible
- Independent logic supply (VDD) range: 3.3V to 20V
- VCC and VBS undervoltage lockout
- Cycle-by-cycle edge-triggered shutdown logic
- Matched propagation delay for both channels
- Output in-phase with input signal
- Available in 14-DIP and 16-SOP (wide body) packages
- Lead-free device
