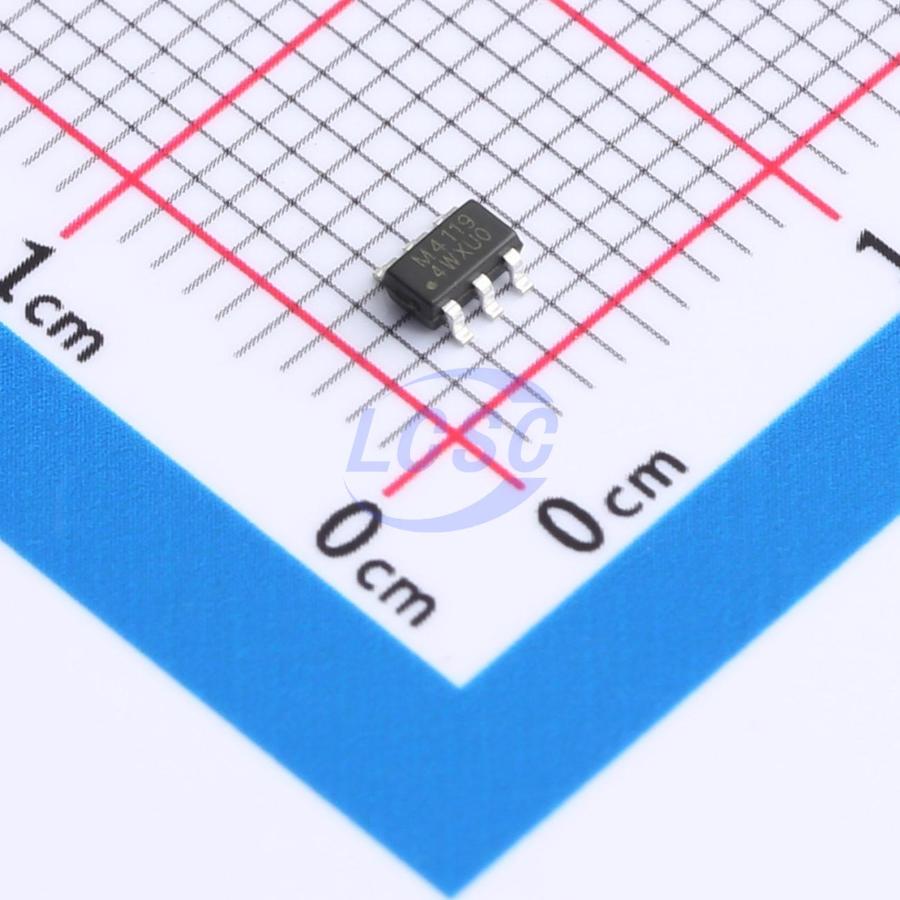

XTM4119AS3CT
2.4V~18V SOT-23-6 Motor Drivers, Controllers RoHS
Single-channel DC brushed motor driver
- Manufacturer
- XTX
- Manufacturer part #
- XTM4119AS3CT
- Store part #
- C41430130
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,555 in stock
#C41430130
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.57 | ₹52.85 |
| 50+ | ₹8.26 | ₹413.00 |
| 150+ | ₹7.10 | ₹1,065.00 |
| 500+ | ₹6.50 | ₹3,250.00 |
| 3,000+ | ₹5.81 | ₹17,430.00 |
| 6,000+ | ₹5.46 | ₹32,760.00 |
5 × ₹10.57
₹52.85
excl. GST
₹62.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XTM4119AS3CT
₹52.85 for 5 + GST
Specifications
- Features
- Active braking function
- Technology
- Yes
- Voltage - Supply
- 2.4V~18V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1uA
- Output Current
- 500mA
- Peak Current
- 800mA
- RDS(on)
- 2Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.212 g
Overview
XTM4119 is a fully integrated motor driver solution for consumer products and other mid-to-low voltage or battery-powered motion control applications. This device drives a single brushed DC motor with integrated forward/reverse/stop/brake functions. XTM4119 supports a maximum operating voltage of 18V, continuous current of 0.5A, and peak current of 0.8A. It also integrates protection features including over-temperature protection and undervoltage lockout.
Applications
- IR-CUT water/gas meter valve
Key features
- PWM (INA/INB) input interface, compatible with industry-standard devices
- Operating voltage range: 2.4V - 18V
- Continuous current 0.5A, peak 0.8A
- Standby current: 0.1uA typ.
- RDS(ON): 2.0Ω
- Integrated undervoltage protection
- Integrated overtemperature protection
- Package: SOT23-6
