XTPS79333-XC

XTPS79333 is an ultra-low noise, ultra-low quiescent current LDO linear regulator operating from a 3.7V to 5.5V supply, capable of delivering up to 200mA output current with a stable 3.3V output voltage. Utilizing innovative design techniques, its quiescent current as low as 15μA at no load makes it well suited for battery-powered portable devices. The device delivers excellent noise immunity without requiring an additional noise bypass capacitor, while maintaining outstanding PSRR and line/load transient response performance. The combination of ultra-low noise and extremely low quiescent current enables XTPS79333 to maximize battery life in portable devices. For high-performance applications where board space is limited, XTPS79333 can be used with 1μF ceramic input and output capacitors. The device is available in a 5-pin SOT-23 package and operates over a temperature range of -40°C to 125°C.

Applications

• Television applications
• Building automation
• Smartphones and tablets
• Connected peripherals and printers
• Home theater and entertainment applications

Key features

• Ultra-low noise: 9μVRMS, output voltage independent
• Ultra-low quiescent current (no load): 15μA
• Maximum output current: 200mA
• Input voltage: 3.7V to 5.5V
• Fixed output voltage: 3.3V
• Output voltage accuracy: ±1%
• Low shutdown current: <1μA
• Low dropout: 120mV (typical)
• Power supply rejection ratio: 62dB at 1kHz
• No noise bypass capacitor required
• Stable performance with 1μF ceramic input and output capacitors
• Current limiting and thermal overload protection
• Logic-controlled enable

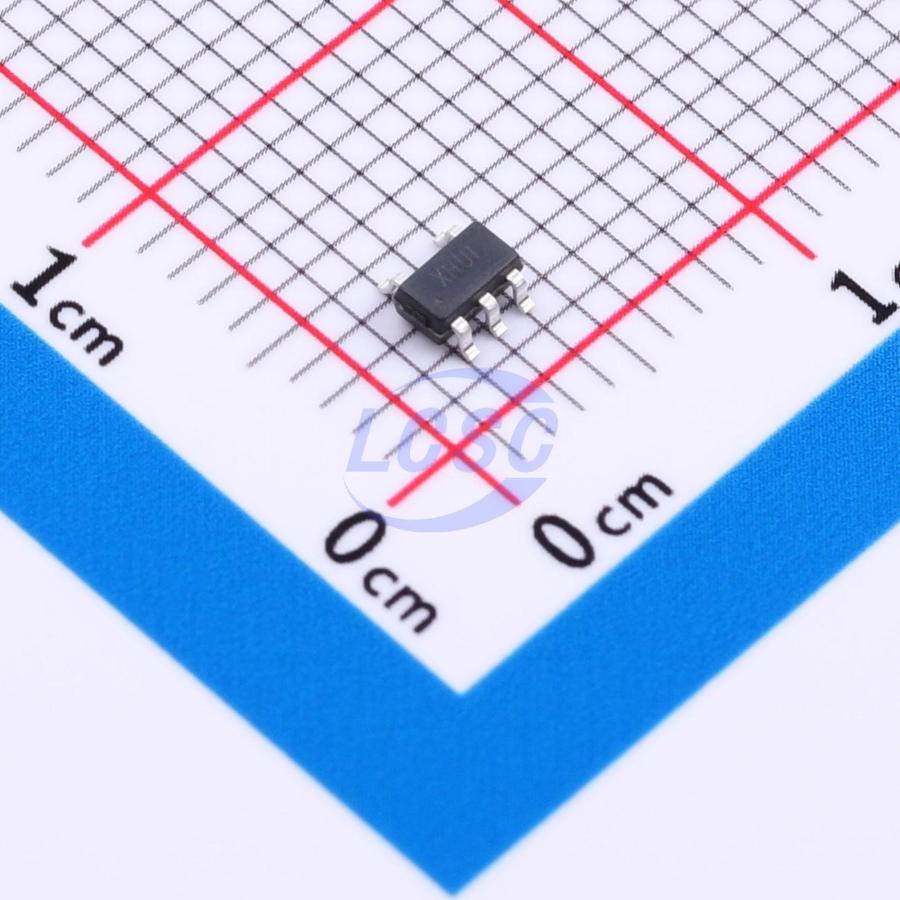

• 5-pin SOT-23 package
