XTPS7A0533-XC

XTPS7A0533 is an ultra-low noise, ultra-low power LDO linear regulator powered by a 3.7V to 5.5V supply, capable of delivering up to 200mA output current with a stable 3.3V output voltage. Leveraging innovative design techniques, its quiescent current as low as 15μA at no load makes it well suited for battery-powered portable devices. The device delivers excellent noise immunity without additional noise bypass capacitors, while maintaining outstanding PSRR and line/load transient response performance. Through the combination of ultra-low noise and extremely low quiescent current, XTPS7A0533 maximizes battery life in portable devices. In space-constrained high-performance applications, XTPS7A0533 can be paired with 1μF input and output ceramic capacitors to meet requirements. Offered in a 5-pin SOT-23 package with an operating temperature range of -40℃ to 125℃.

Applications

• Wearable electronics
• Ultrabooks, tablets, e-readers
• Always-on power supplies
• Set-top boxes
• Game controllers, remote controls, toys, drones

Key features

• Ultra-low noise: 9μVRMS, independent of output voltage
• Ultra-low quiescent current (no load): 15μA
• Maximum output current: 200mA
• Input voltage range: 3.7V ~ 5.5V
• Fixed output voltage: 3.3V
• Output voltage accuracy: ±1%
• Low shutdown current: <1μA
• Low dropout: 120mV (typical)
• Power supply rejection ratio: 62dB at 1kHz
• No noise bypass capacitor required
• Stable performance with 1μF ceramic input and output capacitors
• Current limiting and thermal overload protection
• Logic-controlled enable

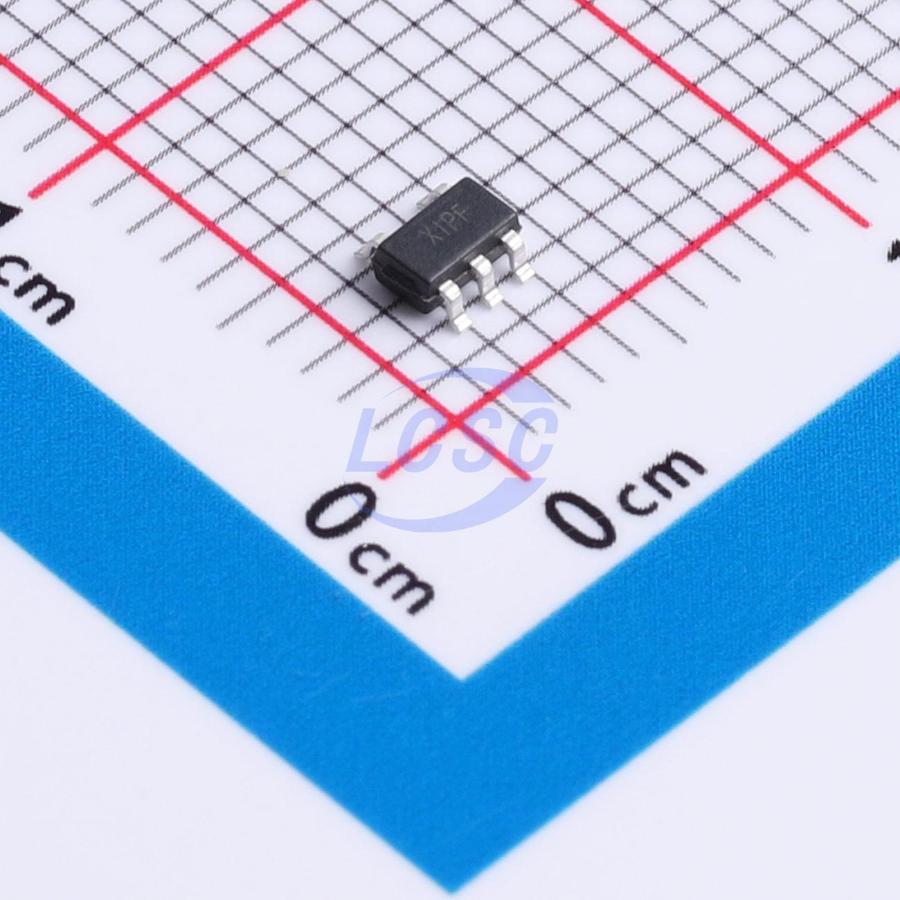

• 5-pin SOT-23 package
