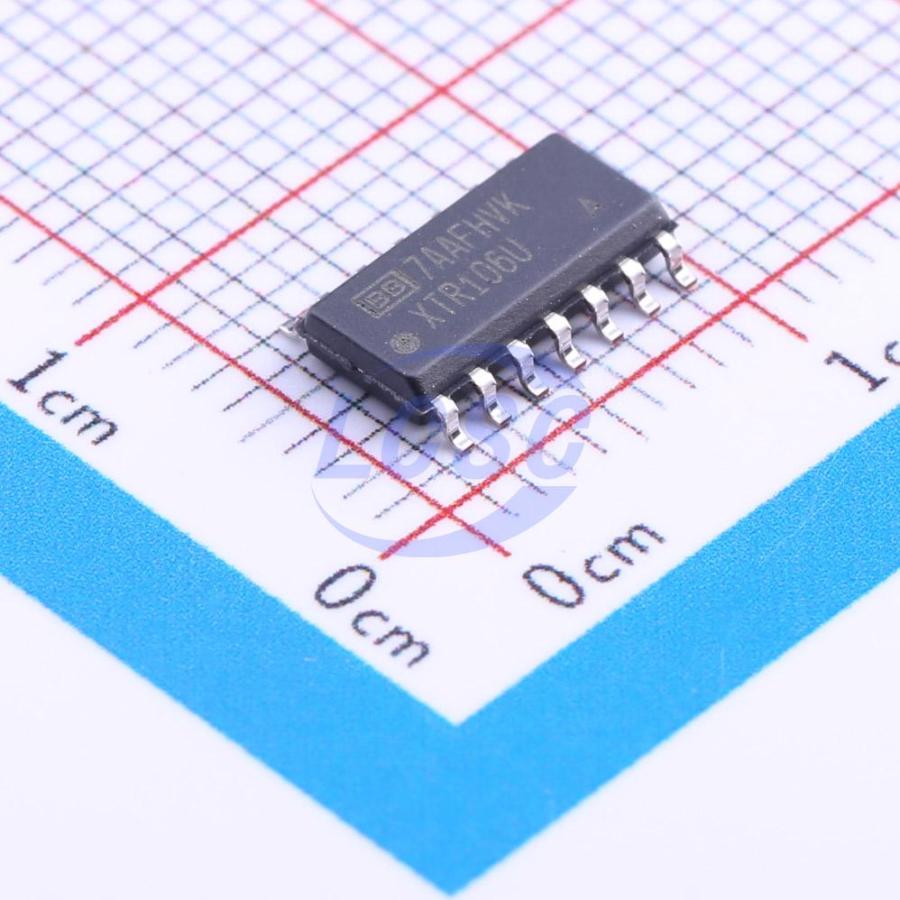

XTR106UA/2K5
50nA 250uV SOIC-14 Sensor and Detector Interfaces RoHS
4-20mA Current Transmitter with Bridge Excitation and Linearization
- Manufacturer
- TI
- Manufacturer part #
- XTR106UA/2K5
- Store part #
- C179695
- Package / case
- SOIC-14
- Category
- Sensor and Detector Interfaces
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,054 in stock
#C179695
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹358.80 | ₹358.80 |
| 10+ | ₹337.43 | ₹3,374.30 |
| 30+ | ₹324.69 | ₹9,740.70 |
| 100+ | ₹311.95 | ₹31,195.00 |
| 500+ | ₹305.90 | ₹1,52,950.00 |
| 1,000+ | ₹303.32 | ₹3,03,320.00 |
1 × ₹358.80
₹358.80
excl. GST
₹423.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XTR106UA/2K5
₹358.80 for 1 + GST
Specifications
- Input Offset Voltage Drift(Vos TC)
- 0.25uV/℃
- Ib - Input Bias Current
- 50nA
- Vos - Input Offset Voltage
- 250uV
- Features
- Programmable reference voltage;Programmable gain mode;Overvoltage protection
- Single Supply
- 7.5V~36V
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- -40℃~+85℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The XTR106 is a low cost, monolithic 4 - 20mA, two - wire current transmitter designed for bridge sensors. It provides complete bridge excitation (2.5V or 5V reference), instrumentation amplifier, sensor linearization, and current output circuitry. Current for powering additional external input circuitry is available from the VREG pin. The instrumentation amplifier can be used over a wide range of gain, accommodating a variety of input signal types and sensors. Total unadjusted error of the complete current transmitter, including the linearized bridge, is low enough to permit use without adjustment in many applications. The XTR106 operates on loop power supply voltages down to 7.5V. Linearization circuitry provides second - order correction to the transfer function by controlling bridge excitation voltage. It provides up to a 20:1 improvement in nonlinearity, even with low cost transducers. The XTR106 is available in 14 - pin plastic DIP and SO - 14 surface - mount packages and is specified for the - 40°C to +85°C temperature range. Operation is from - 55°C to +125°C.
Applications
- PRESSURE BRIDGE TRANSMITTERS
- STRAIN GAGE TRANSMITTERS
- TEMPERATURE BRIDGE TRANSMITTERS
- INDUSTRIAL PROCESS CONTROL
- SCADA REMOTE DATA ACQUISITION
- REMOTE TRANSDUCERS
- WEIGHING SYSTEMS
- ACCELEROMETERS
Key features
- LOW TOTAL UNADJUSTED ERROR
- 2.5V, 5V BRIDGE EXCITATION REFERENCE
- 5.1V REGULATOR OUTPUT
- LOW SPAN DRIFT: ±25ppm/°C max
- LOW OFFSET DRIFT: 0.25μV/°C
- HIGH PSR: 110dB min
- HIGH CMR: 86dB min
- WIDE SUPPLY RANGE: 7.5V to 36V
- 14 - PIN DIP AND SO - 14 SURFACE - MOUNT
