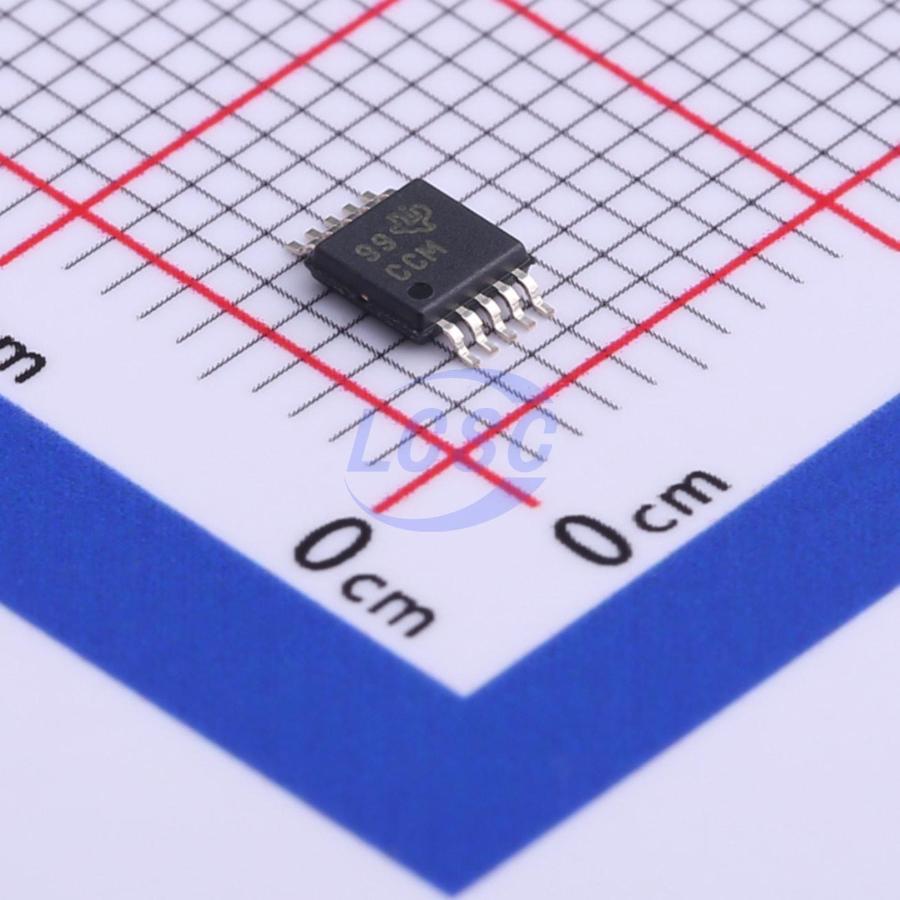

XTR111AIDGQT
HVSSOP-10-EP-0.5mm Sensor and Detector Interfaces RoHS
Precision Voltage-to-Current Converter/Transmitter
- Manufacturer
- TI
- Manufacturer part #
- XTR111AIDGQT
- Store part #
- C523789
- Package / case
- HVSSOP-10-EP-0.5mm
- Category
- Sensor and Detector Interfaces
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
234 in stock
#C523789
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.67 | ₹117.67 |
| 10+ | ₹95.52 | ₹955.20 |
| 30+ | ₹84.46 | ₹2,533.80 |
| 250+ | ₹70.56 | ₹17,640.00 |
| 500+ | ₹64.05 | ₹32,025.00 |
| 1,000+ | ₹60.79 | ₹60,790.00 |
1 × ₹117.67
₹117.67
excl. GST
₹138.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 250 per reel
XTR111AIDGQT
₹117.67 for 1 + GST
Specifications
- Supply Current (Iq)
- 450uA
- Operating Temperature
- -55℃~+125℃
- Voltage - Supply
- 7V~44V
- The Chip Type
- V-IConverter
- Number of Channels
- 1
- Resolution (Bits)
- -;-
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
The XTR111 is a precision voltage-to-current converter designed for the standard 0mA–20mA or 4mA–20mA analog signals, and can source up to 36mA. The ratio between input voltage and output current is set by the single resistor R̅SET'. The circuit can also be modified for voltage output. An external P-MOSFET transistor ensures high output resistance and a broad compliance voltage range that extends from 2V below the supply voltage, VVSP, to voltages well below GND. The adjustable 3V to 15V sub-regulator output provides the supply voltage for additional circuitry. The XTR111 is available in MSOP and DFN surface-mount packages.
Applications
- UNIVERSAL VOLTAGE-CONTROLLED CURRENT SOURCE
- CURRENT OR VOLTAGE OUTPUT FOR 3-WIRE SENSOR SYSTEMS
- PLC OUTPUT PROGRAMMABLE DRIVER
- CURRENT-MODE SENSOR EXCITATION
Key features
- EASY-TO-DESIGN INPUT/OUTPUT RANGES: 0mA–20mA, 4mA–20mA, 5mA–25mA AND VOLTAGE OUTPUTS
- NONLINEARITY: 0.002%
- LOW OFFSET DRIFT: 1μν/°c
- ACCURACY: 0.015%
- SINGLE-SUPPLY OPERATION
- WIDE SUPPLY RANGE: 7V to 44V
- OUTPUT ERROR FLAG (EF)
- OUTPUT DISABLE (OD)
- ADJUSTABLE VOLTAGE REGULATOR: 3V to 15V
