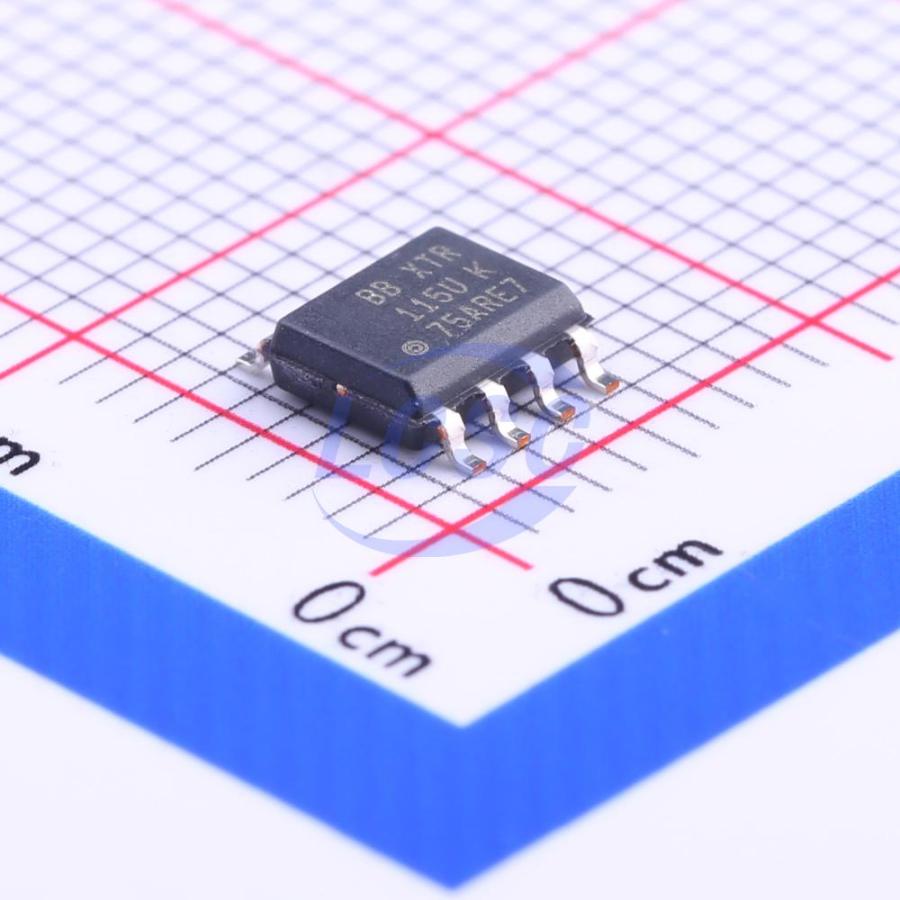

XTR115U/2K5
35nA 100uV SOIC-8 Sensor and Detector Interfaces RoHS
4-20mA Current Loop Transmitters
- Manufacturer
- TI
- Manufacturer part #
- XTR115U/2K5
- Store part #
- C99444
- Package / case
- SOIC-8
- Category
- Sensor and Detector Interfaces
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,492 in stock
#C99444
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹308.10 | ₹308.10 |
| 10+ | ₹262.14 | ₹2,621.40 |
| 30+ | ₹212.05 | ₹6,361.50 |
| 100+ | ₹182.56 | ₹18,256.00 |
| 500+ | ₹169.34 | ₹84,670.00 |
| 1,000+ | ₹163.48 | ₹1,63,480.00 |
1 × ₹308.10
₹308.10
excl. GST
₹363.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XTR115U/2K5
₹308.10 for 1 + GST
Specifications
- Input Offset Voltage Drift(Vos TC)
- 0.7uV/℃
- Ib - Input Bias Current
- 35nA
- Vos - Input Offset Voltage
- 100uV
- Features
- Programmable reference voltage;Built-in current limiting / output protection;Overvoltage protection
- Single Supply
- 7.5V~36V
- Supply Current (Iq)
- 200uA
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The XTR115 and XTR116 are precision current output converters designed to transmit analog 4-to- 20mA signals over an industry standard current loop. They provide accurate current scaling and output current limit functions. The on-chip voltage regulator (5V) can be used to power external circuitry. A precision on-chip VREF (2.5V for XTR115 and 4.096V for XTR116) can be used for offsetting or to excite transducers. A current return pin (I_RET) senses any current used in external circuitry to assure an accurate control of the output current. The XTR115 is a fundamental building block of smart sensors using 4-to- 20mA current transmission. The XTR115 and XTR116 are specified for operation over the extended industrial temperature range, -40°C to +85°C.
Applications
- INDUSTRIAL PROCESS CONTROL
- TEST SYSTEMS
Key features
- LOW QUIESCENT CURRENT: 200μA
- 5V REGULATOR FOR EXTERNAL CIRCUITS
- VPEF FOR SENSOR EXCITATION: XTR115: 2.5V XTR116: 4.096V
- LOW SPAN ERROR: 0.05%
- LOW NONLINEARITY ERROR: 0.003%
- WIDE LOOP SUPPLY RANGE: 7.5V to 36V
- SO-8 PACKAGE 2-WIRE, 4-20mA CURRENT LOOP TRANSMITTER
- SMART TRANSMITTER
- COMPATIBLE WITH HART MODEM
- CURRENT AMPLIFIER
- VOLTAGE-TO-CURRENT AMPLIFIER
