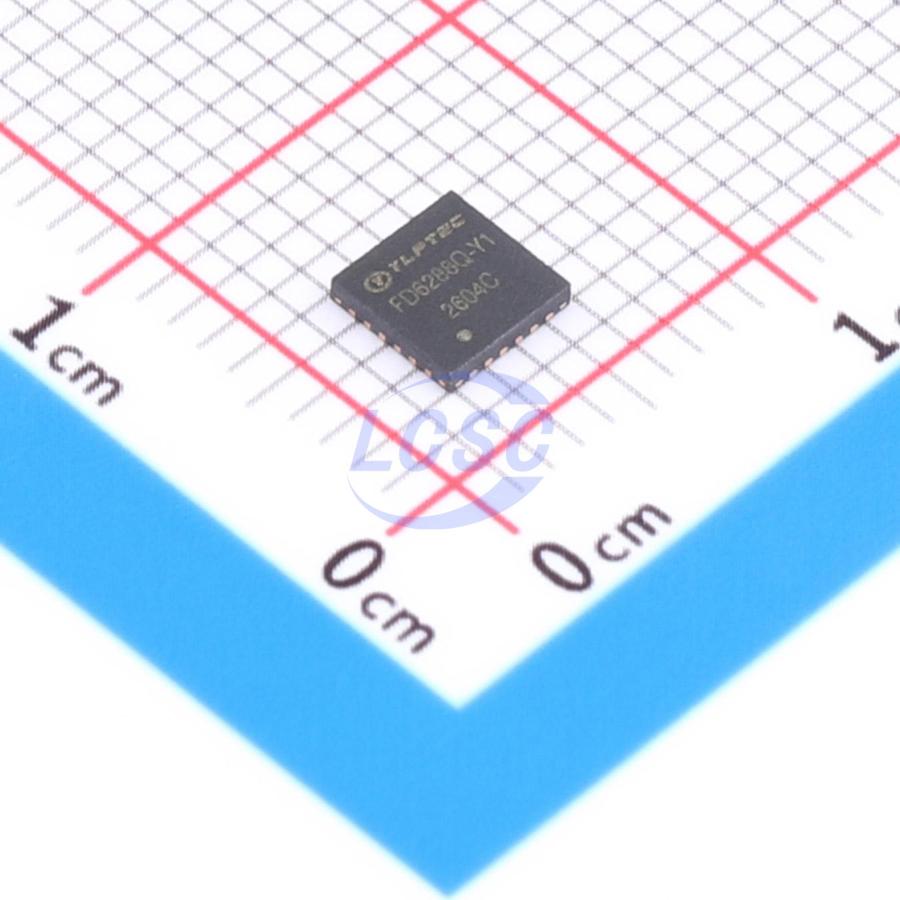

YC6288Q
5V~20V 2.4A 1.6A QFN-24-EP(4x4) Gate Drivers
- Manufacturer
- YLPTEC
- Manufacturer part #
- YC6288Q
- Store part #
- C54157432
- Package / case
- QFN-24-EP(4x4)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,750 in stock
#C54157432
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.26 | ₹65.26 |
| 10+ | ₹51.61 | ₹516.10 |
| 30+ | ₹45.75 | ₹1,372.50 |
| 100+ | ₹38.61 | ₹3,861.00 |
| 500+ | ₹35.35 | ₹17,675.00 |
| 1,000+ | ₹33.39 | ₹33,390.00 |
1 × ₹65.26
₹65.26
excl. GST
₹77.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
YC6288Q
₹65.26 for 1 + GST
Specifications
- Input Logic Level - Low
- 1.4V
- Low Level Delay Time
- 320ns
- High Level Delay Time
- 120ns
- Quiescent Current
- 50uA
- Input Logic Level - High
- 2.2V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge;Three Phase
- Current - Output Low(IOL)
- 2.4A
- Rise Time
- 15ns
- Fall Time
- 15ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 1.6A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
YC6288Q is a high-reliability half-bridge gate driver with a floating high-side driver capable of operating at voltages up to 200V. HO is in phase with input HI, and LO is in phase with input LI. Built-in input filtering prevents input noise interference. VDD and HB feature undervoltage lockout (UVLO) protection circuits that continuously monitor the supply voltage until sufficient voltage is available to turn on the external MOSFETs. In addition, the device incorporates shoot-through prevention: when both inputs are simultaneously high, the outputs are disabled to prevent shoot-through of the power transistors, effectively protecting the downstream power devices. Leveraging robust and reliable level-shifting technology, the device combines high switching speed with low power consumption. With integrated VDD and HB UVLO and shoot-through prevention, it offers excellent flexibility and reliability for system design.
Applications
- Push-pull converter
- DC brushless motor drive
- High-performance three-phase gate driver
Key features
- Integrated three independent half-bridge drivers
- Bootstrap voltage up to +200V
- Supply voltage operating range 5.0~20V
- Peak output current up to 1.6/2.4A
- Propagation delay time 320ns/120ns
- VDD and HB undervoltage lockout protection
- Built-in input interlock and dead-time
- Excellent propagation delay matching
