YezhanDatasheet (PDF)

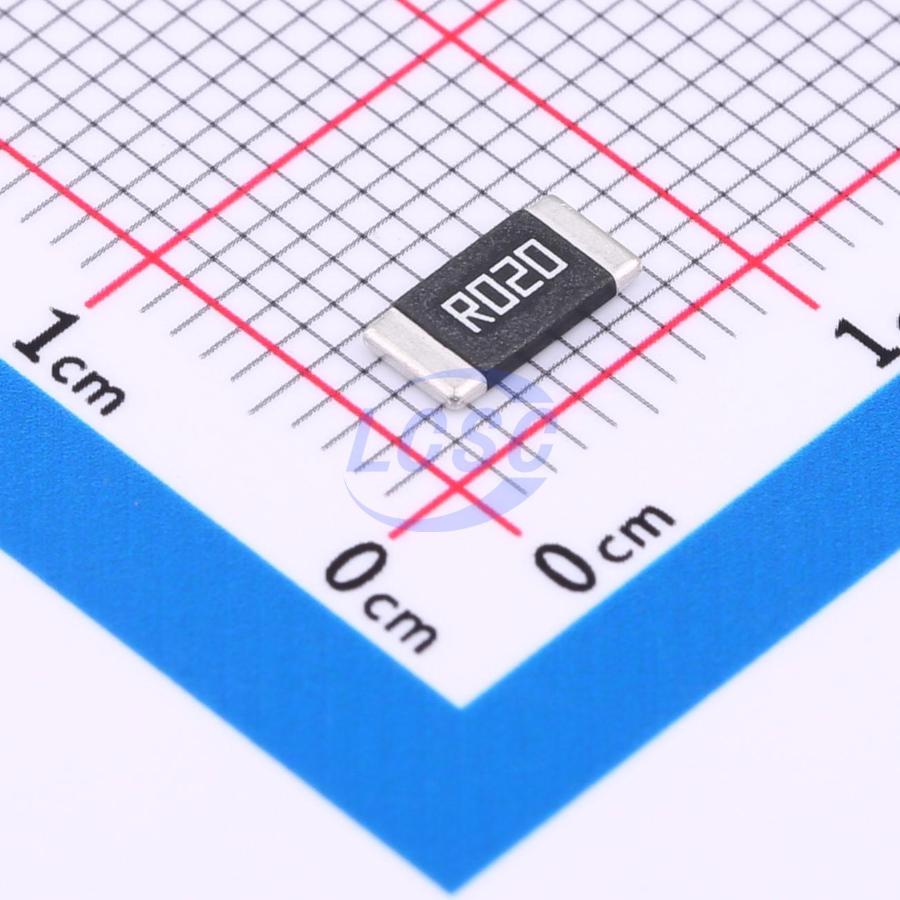

YLRY12-2-20F
2W 20mΩ Current Sense Resistor ±1% 2512 Chip Resistor - Surface Mount
2512RoHSActive
RES 20mΩ ±1% 2W 2512
- Manufacturer
- Yezhan
- Manufacturer part #
- YLRY12-2-20F
- Store part #
- C20608733
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,820 in stock
#C20608733
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.03 | ₹45.15 |
| 50+ | ₹7.14 | ₹357.00 |
| 150+ | ₹6.19 | ₹928.50 |
| 500+ | ₹5.49 | ₹2,745.00 |
| 2,500+ | ₹4.92 | ₹12,300.00 |
| 4,000+ | ₹4.63 | ₹18,520.00 |
5 × ₹9.03
₹45.15
excl. GST
₹53.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
YLRY12-2-20F
₹45.15 for 5 + GST
Specifications
- Power(Watts)
- 2W
- Resistance
- 20mΩ
- Type
- Current Sense Resistor
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
Applications
- Current sensing
- Overcurrent protection
- Servo motor control circuits
- Variable frequency power supplies
- Electronic control systems
- Lithium battery control boards
Key features
- Resistance range: 0.5~500mΩ
- Tolerance: ±1%, ±2%, ±5%
- Power rating: 1W, 2W, 3W
- Temperature coefficient: ±350ppm/℃, ±100ppm/℃, ±50ppm/℃
- Operating temperature range: -55℃~170℃
- Low inductance: 5nH (1MHz)
- Insulation resistance: ≥100MΩ
- Withstanding voltage: 500V
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | YLRY12-3-20F#C20608762Yezhan · 2512 | Yezhan | 2512 | 61,190 | ₹6.01 · 61,190 in stock | View |
 | YLR12-2-20F-W#C469377Yezhan · 2512 | Yezhan | 2512 | On request | Price on request | Quote |
 | YLR12-3-20F-W#C489552Yezhan · 2512 | Yezhan | 2512 | On request | Price on request | Quote |
