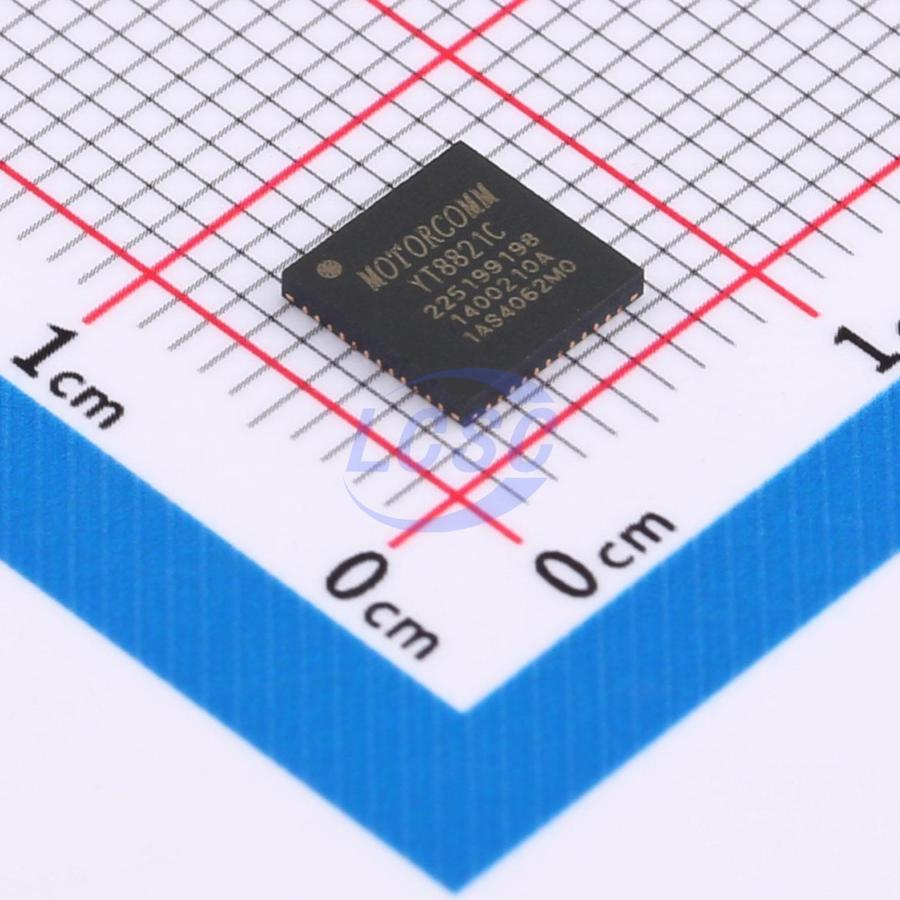

Motorcomm

YT8821C

Ethernet Transceiver SGMII QFN-48(6x6) Drivers, Receivers, Transceivers

QFN-48(6x6)RoHSActive

Motorcomm YT8821C_YT8821H Product Introduction

Manufacturer: Motorcomm
Manufacturer part #: YT8821C
Store part #: C7470893
Package / case: QFN-48(6x6)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

995 in stock

#C7470893

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹309.61	₹309.61
10+	₹293.52	₹2,935.20
30+	₹283.97	₹8,519.10
100+	₹274.40	₹27,440.00
500+	₹269.84	₹1,34,920.00
1,000+	₹267.89	₹2,67,890.00

Quantity (min 1)

1 × ₹309.61

₹309.61

excl. GST

₹365.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

YT8821C

₹309.61 for 1 + GST

Specifications

Type: Ethernet Transceiver
Voltage - Supply: 3.3V;1.8V
Ethernet Speed Standards: 10BASE-TE;100BASE-TX;1000BASE-T;2.5GBASE-T
Data Rate: 10Mbit/s;100Mbit/s;1Gbit/s;2.5Gbit/s
number of channels: 1
Features: Low-power mode;Programmable LED indication
Interface: SGMII

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.269 g

Overview

YT8821C/YT8821H are highly integrated 10BASE-Te, 100BASE-TX, 1000BASE-T, and 2.5GBASE-T transceivers, compliant with both IEEE 802.3 standards and NBASE-T Alliance PHY. They perform all necessary physical layer functions for 10BASE-Te, 100BASE-T, 1000BASE-T, and 2.5GBASE-T Ethernet over CAT5E UTP cable. Leveraging advanced DSP technology and an analog front end, they enable high-speed data transmission and reception over UTP cable. This highly integrated solution incorporates a digital adaptive equalizer, analog-to-digital conversion, line driver, echo canceller, crosstalk canceller, PLL, and more. Additional features include auto MDI/MDIX detection and correction, as well as polarity correction. Data transfer between the MAC and YT8821 is performed via a SERDES interface, which can be configured as SGMII or 2500BASE-X. YT8821C/YT8821H operate across multiple digital I/O voltage levels, including 3.3V and 1.8V. Commercial grade: YT8821C Industrial grade: YT8821H

Applications

Digital TV
Printers and office machines
Ethernet switches and routers
PON equipment

Key features

Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.3az (Energy Efficient Ethernet)
Supports IEEE 802.3bz(2.5GBASE-T)
Supports Full Duplex flow control (IEEE 802.3x)
Supports IEEE 802.3 optional ability (Fast Retrain)
Integrated 10BASE-Te, 100BASE-T, 1000BASE-T and 2.5GBASE-T IEEE 802.3 Compliant transceiver
Auto-Negotiation with extended next page capability(XNP)
Compatible with NBASE-T Alliance PHY Specification
Supports pair swap/polarity/skew correction
Crossover detection and auto-correction
Configurable MDI port ordering (MDI swap) for easy PCB layout
Supports power down/link down power saving mode
Supports clause 22 and clause 45 MDC/MDIO management interface
Supports rate adaptor for SERDES
Selectable SERDES interface to MAC control(SGMII/2500BASE-X)
Built-in Wake-on-LAN(WOL) over UTP
Supports Interrupt function over UTP
Supports parallel detection
Baseline Wander Correction
Supports 3.3/1.8V signaling for MDIO access
Supports 25MHz crystal or external OSC
Provides 25MHz clock source for MAC
Provides 3 network customized LEDs with controllable LED Blinking Frequency and Duty Cycle
Self-Loopback diagnostic capability
Supports SPI Flash
