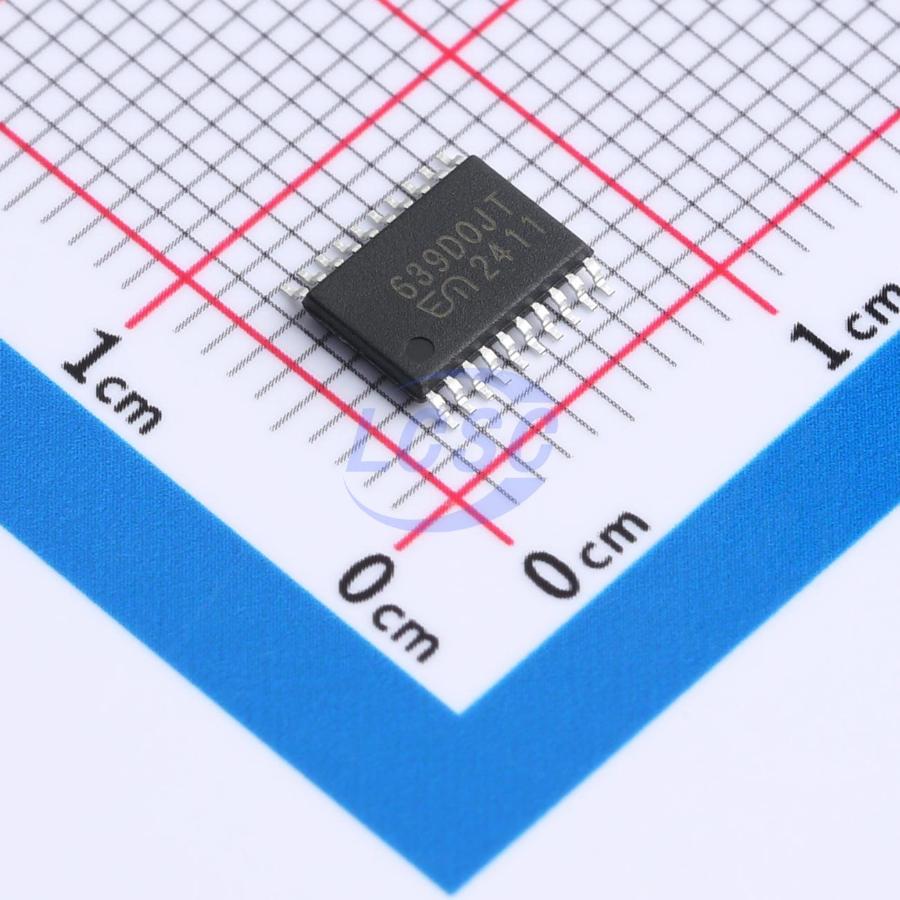

ZH639D0JT
5V~12V 2.5A 2.5A TSSOP-20 Gate Drivers
Three-Phase Half-Bridge Gate Driver
- Manufacturer
- Semiment
- Manufacturer part #
- ZH639D0JT
- Store part #
- C41371521
- Package / case
- TSSOP-20
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,851 in stock
#C41371521
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.49 | ₹71.49 |
| 10+ | ₹56.07 | ₹560.70 |
| 30+ | ₹49.55 | ₹1,486.50 |
| 100+ | ₹41.29 | ₹4,129.00 |
| 500+ | ₹37.81 | ₹18,905.00 |
| 1,000+ | ₹35.64 | ₹35,640.00 |
1 × ₹71.49
₹71.49
excl. GST
₹84.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
ZH639D0JT
₹71.49 for 1 + GST
Specifications
- Input Logic Level - Low
- 700mV
- Low Level Delay Time
- 100ns
- High Level Delay Time
- 100ns
- Quiescent Current
- 50uA
- Input Logic Level - High
- 2.2V
- Voltage - Supply
- 5V~12V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 2.5A
- Rise Time
- 100ns
- Fall Time
- 50ns
- Features
- Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 2.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.119 g
Overview
The ZH639D0 is a high-voltage, high-speed halfbridge gate driver for power MOSFETs and IGBTs. The floating channel can be used to drive N-channel power MOSFETs or IGBTs in a high-side configuration, with an operating voltage of 120V. The three output channels builds internal adaptive dead-time to avoid crossconduction. The output module integrates a sink-source balancing circuit, eliminating the need for resistors and diodes between the IC and the gate of the power transistor. The high and low-side outputs are independently controlled by the input, and the high-side is equipped with undervoltage protection. The 24-pin package has separate power GND and logic GND pins for convenient PCB layout reducing interference.
Applications
- Drones
- Power tools
- Motor drives
- Wireless charger
Key features
- Driver for three-phase N-channel MOS or IGBT
- High-side floating bootstrap power supply, operating voltage up to 120V
- Integrated bootstrap diode
- Integrated sink-source balancing circuit, no resistors or diodes required at the gate of the power transistor
- Output equivalent current capability of 2.5A
- Maximum operating frequency 500kHz
- Logic input levels compatible with 3.3V / 5V
- High-side undervoltage protection
- Adaptive dead-time control circuit
- Built-in lockout to prevent shoot-through
- Packaging forms: QFN24, TSSOP20
