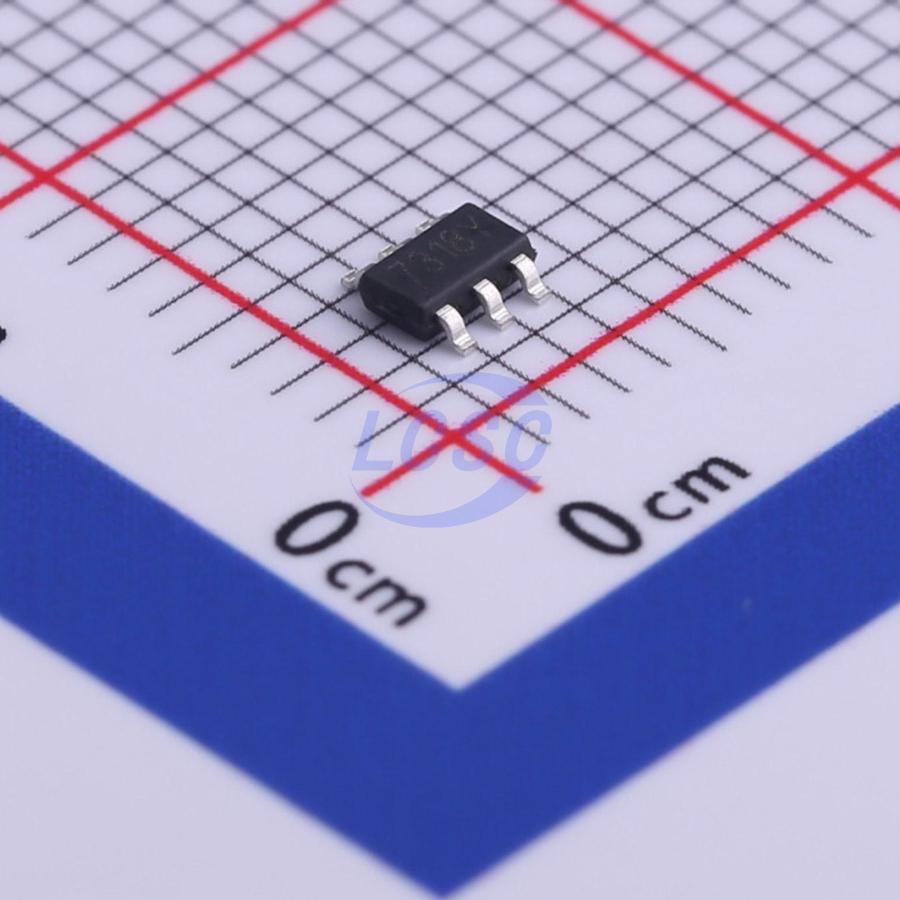

ZTP7193KT
Step-down type 650kHz Adjustable 765mV~15V 3A TSOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6LROHS CompliantActive
3A, 18V, 650KHz Synchronous Step-Down DC/DC Converter
- Manufacturer
- ZILLTEK
- Manufacturer part #
- ZTP7193KT
- Store part #
- C481283
- Package / case
- TSOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C481283
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.36 | ₹116.80 |
| 50+ | ₹17.98 | ₹899.00 |
| 150+ | ₹15.66 | ₹2,349.00 |
| 500+ | ₹12.78 | ₹6,390.00 |
| 3,000+ | ₹11.48 | ₹34,440.00 |
| 6,000+ | ₹10.72 | ₹64,320.00 |
5 × ₹23.36
₹116.80
excl. GST
₹137.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZTP7193KT
₹116.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 650kHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Hiccup current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 765mV~15V
- Output Current
- 3A
- Quiescent Current
- 700uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The ZTP7193KT is a high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 3A continuous output current over a wide input supply range, with excellent load and line regulation. The ZTP7193KT has synchronous-mode operation for higher efficiency over the output current-load range. Current-mode operation provides fast transient response and eases loop stabilization. Protection features include over-current protection and thermal shutdown. The ZTP7193KT requires a minimal number of readily available, standard external components and is available in a space-saving TSOT23-6L package.
Applications
- Distributed power systems
- Networking systems
- FPGA, DSP, ASIC power supplies
- Notebook computers
- Green electronics or appliance
Key features
- 4.5V to 18V input voltage
- Output adjustable from 0.765V to 15V
- Output current up to 3A
- Integrated 85mΩ/45mΩ power MOSFET switches
- Shutdown current 3μA typical
- Efficiency up to 95%
- Fixed frequency 650KHz
- Internal soft start
- Over current protection and Hiccup
- Over temperature protection
- RoHS Compliant and 100% Lead (Pb) Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| JW5056TSOTB#TRPBF#C19188991JoulWatt Tech · TSOT-23-6 | JoulWatt Tech | TSOT-23-6 | On request | ₹41.63 · 0 in stock | View | |
 | JW5062TTSOTB#TRPBF#C42375150JoulWatt Tech · TSOT-23-6 | JoulWatt Tech | TSOT-23-6 | 2,960 | ₹16.06 · 2,960 in stock | View |
 | GP3134#C48997205GUQIAO Microelectronics · SOT-23-6 | GUQIAO Microelectronics | SOT-23-6 | 2,695 | ₹12.45 · 2,695 in stock | View |
 | EA8211T6R#C5241143Everanalog IC design · SOT-23-6 | Everanalog IC design | SOT-23-6 | 410 | ₹20.53 · 410 in stock | View |
 | ETA1471FT2G#C22362739etasolution · FCTSOT-23-6 | etasolution | FCTSOT-23-6 | 7,305 | ₹27.88 · 7,305 in stock | View |
