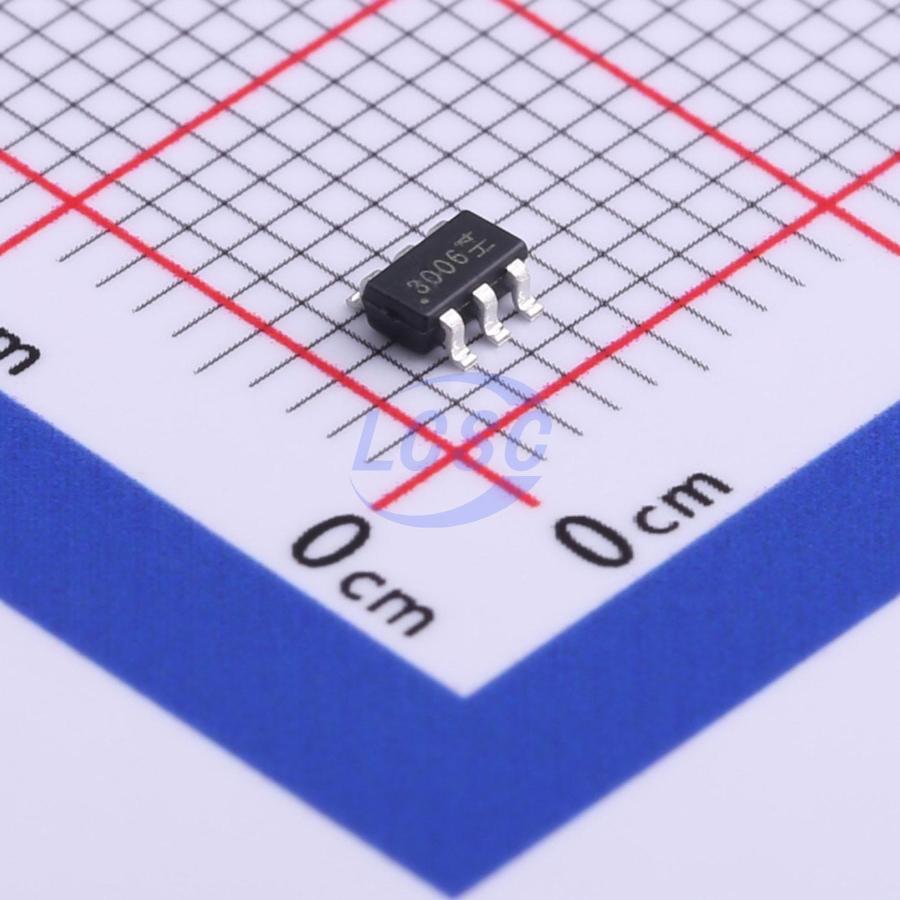

ZXGD3006E6TA
40V 3.8A 4A SOT-26 Gate Drivers RoHS
40V 10A Gate Driver in SOT26
- Manufacturer
- DIODES
- Manufacturer part #
- ZXGD3006E6TA
- Store part #
- C526792
- Package / case
- SOT-26
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,381 in stock
#C526792
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.22 | ₹119.22 |
| 10+ | ₹96.63 | ₹966.30 |
| 30+ | ₹85.56 | ₹2,566.80 |
| 100+ | ₹74.27 | ₹7,427.00 |
| 500+ | ₹64.72 | ₹32,360.00 |
| 1,000+ | ₹61.45 | ₹61,450.00 |
1 × ₹119.22
₹119.22
excl. GST
₹140.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXGD3006E6TA
₹119.22 for 1 + GST
Specifications
- Quiescent Current
- 50nA
- Voltage - Supply
- 40V
- Operating Temperature
- -55℃~+150℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 3.8A
- Rise Time
- 48ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The ZXGD3006E6 is a 40V Gate Driver for switching IGBTs and SiC MOSFETs. It can transfer up to 10A peak source/sink current into the gate for effective charging and discharging of a large capacitive load. The ZXGD3006E6 can drive typically 4A into the low gate impedance of an IGBT, with just 1mA input from a controller. Also, the turn-on and turn-off switching behavior of the IGBT can be individually tailored to suit an application. In particular, by defining the switching characteristics appropriately, EMI and cross conduction can be reduced.
Applications
- Gate driving IGBTs and SiC MOSFETs in DC-DC Converters in Electric Cars
- Gate driving IGBTs and SiC MOSFETs in Automotive Active Suspension Systems
- Gate driving IGBTs and SiC MOSFETs in Solar Inverters
- Gate driving IGBTs and SiC MOSFETs in Power Supplies Plasma Display Panel Power Modules
Key features
- High-Gain Buffer with Typically 4A Output from 1mA Input
- 40V Supply for +20V to -18V Gate Driving to Prevent dV/dt Induced False Triggering
- Emitter-Follower that is Rugged to Latch-Up / Shoot-Through Issues, and Delivers <10ns Propagation Delay Time
- Optimized Pin-Out to Simplify PCB Layout and Reduce Parasitic Trace Inductances
- Near-Zero Quiescent Supply Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (ZXGD3006E6Q)
