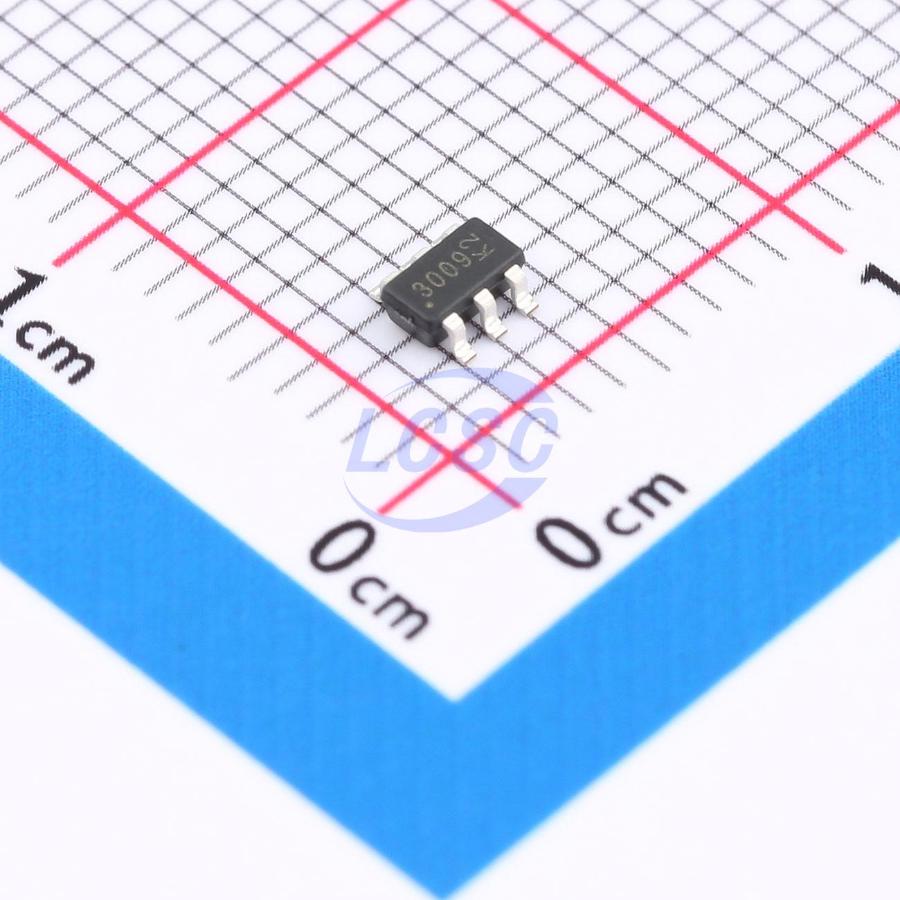

ZXGD3009E6TA

ZXGD3009E6 is a high-speed non-inverting single gate driver for switching MOSFETs. It can transfer up to 2A peak source/sink current into the gate for effective charging and discharging the capacitive load. This gate driver ensures rapid switching of the MOSFET to minimize power losses and distortion in high current switching applications. It can typically drive 1A into the low gate impedance with just 10mA input from a controller. Also, the turn-on and turn-off switching behavior of the MOSFET can be individually tailored to suit an application. In particular, by defining the switching characteristics appropriately, EMI and cross conduction problems can be reduced.

Applications

• Power Supplies
• DC-DC Converters
• Amplifier output stages

Key features

• High-gain buffer with typically 1A output from 10mA input
• Emitter-follower that is rugged to latch-up / shoot-through issues
• Wide supply voltage to minimize on-losses
• Separate source and sink outputs for independent control of MOSFET turn-on and turn-off times
• Optimized pin-out to simplify PCB layout and reduce parasitic trace inductances
• Near-zero quiescent supply current
• Totally Lead-Free & Fully RoHS compliant
• Halogen and Antimony Free. “Green” Device
• Qualified to AEC-Q101 Standards for High Reliability
