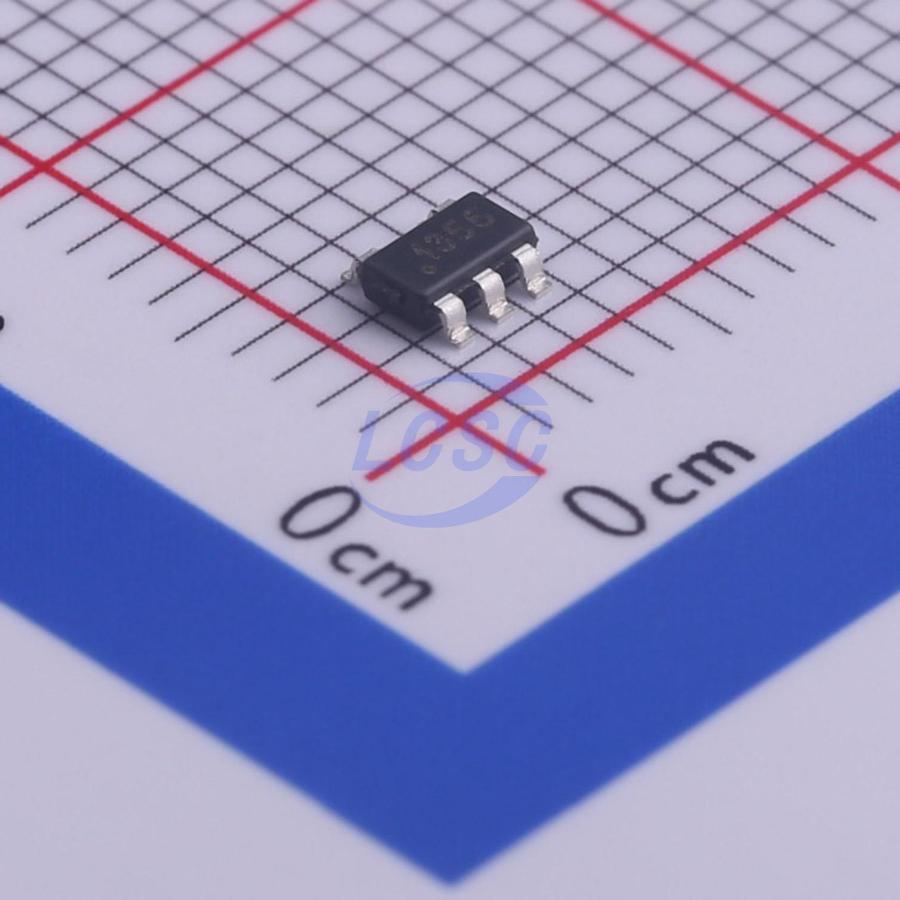

ZXLD1356ET5TA
625kHz PWM 1 DC-DC 550mA 6V~60V TSOT-23-5 LED Drivers RoHS
60V 550mA LED DRIVER
- Manufacturer
- DIODES
- Manufacturer part #
- ZXLD1356ET5TA
- Store part #
- C444977
- Package / case
- TSOT-23-5
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,956 in stock
#C444977
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹180.07 | ₹180.07 |
| 10+ | ₹147.53 | ₹1,475.30 |
| 30+ | ₹129.52 | ₹3,885.60 |
| 100+ | ₹109.35 | ₹10,935.00 |
| 500+ | ₹100.23 | ₹50,115.00 |
| 1,000+ | ₹96.33 | ₹96,330.00 |
1 × ₹180.07
₹180.07
excl. GST
₹212.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXLD1356ET5TA
₹180.07 for 1 + GST
Specifications
- Frequency - Switching
- 625kHz
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Output Current
- 550mA
- Operating Temperature
- -40℃~+125℃
- Features
- Built-in soft-start;LED open-circuit protection
- Topology
- Buck
- Constant Current Accuracy
- 8‰
- Voltage - Input(DC)
- 6V~60V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
The ZXLD1356 is a continuous mode inductive step-down converter, designed for driving single or multiple series connected LEDs efficiently from a voltage source higher than the LED voltage. The device operates from an input supply between 6V and 60V and provides an externally adjustable output current of up to 550mA. Depending upon supply voltage and external components, this can provide up to 30 watts of output power. The ZXLD1356 has been qualified to AECQ100 Grade 1 enabling operation in ambient temperatures from -40°C to +125°C Output current can be adjusted above, or below the set value, by applying an external control signal to the 'ADJ' pin. Enhanced output current dimming can be achieved by applying a PWM signal to the ‘ADJ’ pin.
Applications
- Low Voltage Halogen Replacement LEDs
- Automotive Lighting
- Low Voltage Industrial Lighting
- LED Back-Up Lighting
- Illuminated Signs
- Emergency Lighting
- SELV Lighting Refrigeration Lights
Key features
- Available in “Green” Molding Compound (No Br, Sb) with lead Free Finish/ RoHS Compliant
- Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3)
- ZXLD1356QET5TA Automotive Grade qualified to AEC-Q100 Grade 1
