DIODESDatasheet (PDF)

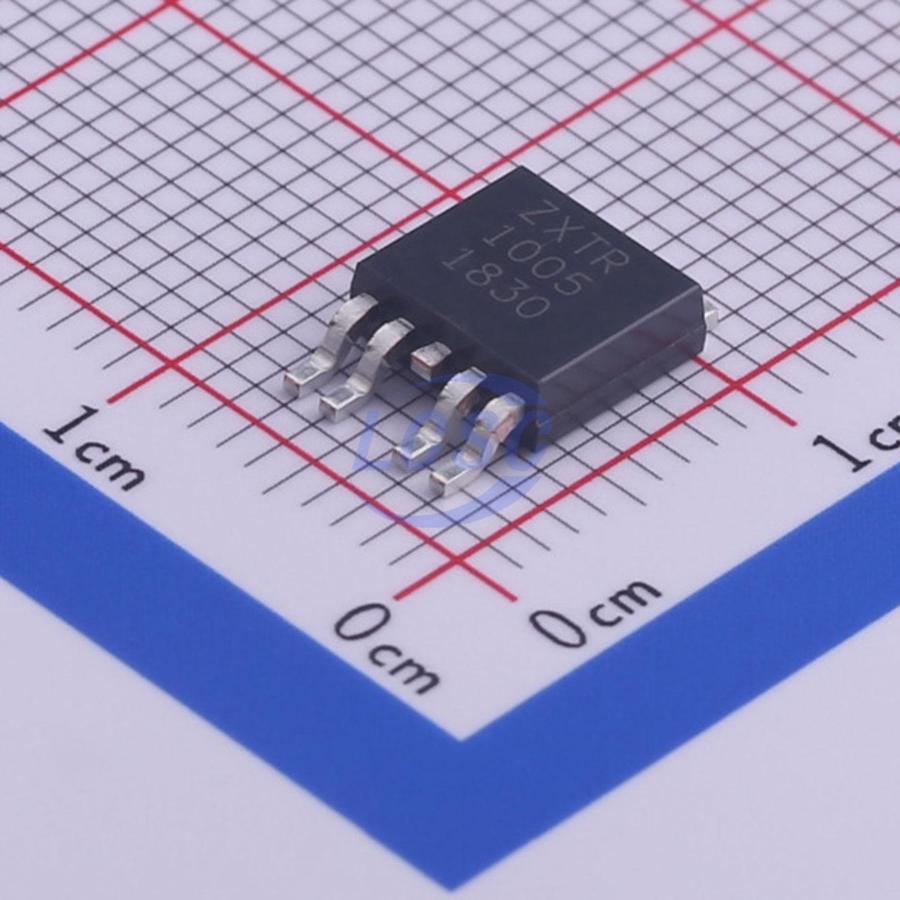

ZXTR1005K4-13
5V Positive Fixed TO-252-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-4ROHS3 CompliantActive
Input 100V Output 5V 50mA
- Manufacturer
- DIODES
- Manufacturer part #
- ZXTR1005K4-13
- Store part #
- C445030
- Package / case
- TO-252-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,656 in stock
#C445030
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.00 | ₹80.00 |
| 10+ | ₹64.87 | ₹648.70 |
| 30+ | ₹57.30 | ₹1,719.00 |
| 100+ | ₹49.96 | ₹4,996.00 |
| 500+ | ₹45.41 | ₹22,705.00 |
| 1,000+ | ₹43.04 | ₹43,040.00 |
1 × ₹80.00
₹80.00
excl. GST
₹94.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ZXTR1005K4-13
₹80.00 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -55℃~+125℃@(Tj)
- Supply Current (Iq)
- 900uA
- Output Configuration
- Positive
- Operating Voltage
- 100V
- Output Current
- 50mA
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.373 g
Overview
The ZXTR1005K4 is a high voltage regulator with fixed output voltage of 5V ±2% and a 50mA drive capability. It is designed for use in high voltage applications where standard linear regulators cannot be used. This function is fully integrated into a TO252 package, minimizing PCB area and reducing number of components when compared with a multi-chip discrete solution. The device also features an enable pin which disables the regulator when pulled low.
Applications
- Supply voltage regulation in Networking
- Supply voltage regulation in Telecom
- Supply voltage regulation in Power Over Ethernet (PoE)
Key features
- Series Linear Regulator Using Emitter-Follower Stage
- Input Voltage = 10 to 100V
- Output Voltage = 5V ±2%
- ±4% tolerance over -55 to +125°C
- Output Current up to 50mA
- Toggle Output On/Off with Enable pin
- Totally Lead-Free & Fully RoHS compliant
- Halogen and Antimony Free. “Green” Device
