DIODESDatasheet (PDF)

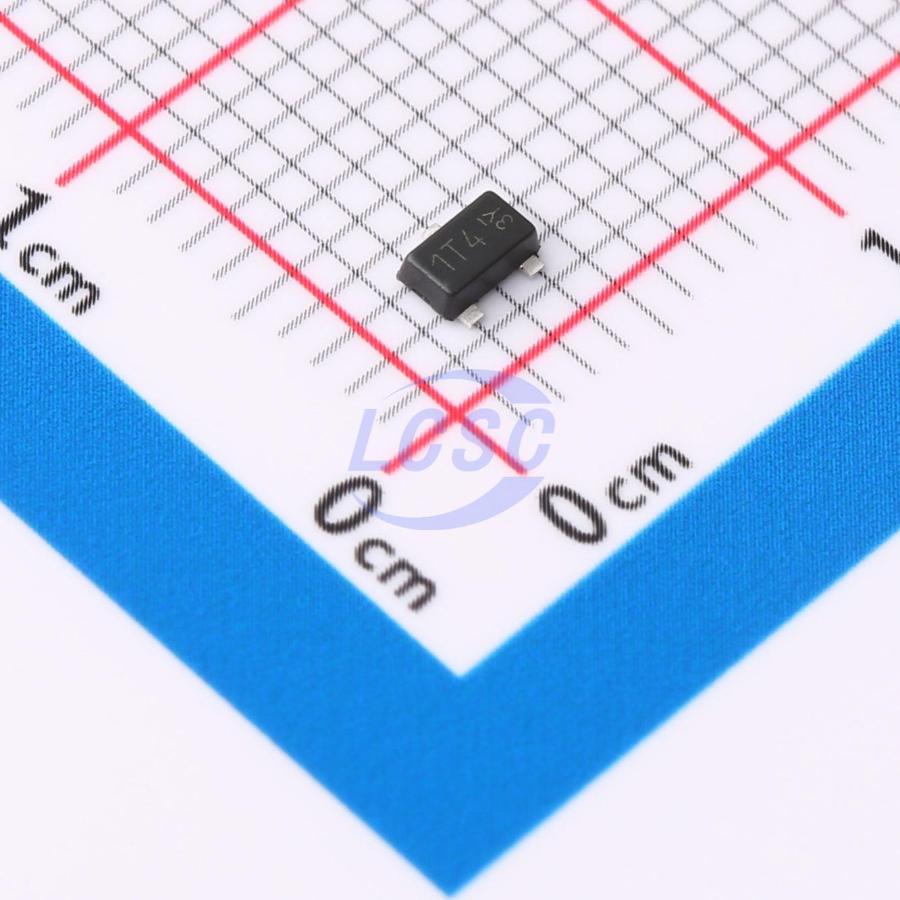

ZXTR2012FF-7
12V Positive Fixed SOT-23F Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23FROHS3 CompliantActive
100V INPUT, 12V 30mA REGULATOR TRANSISTOR
- Manufacturer
- DIODES
- Manufacturer part #
- ZXTR2012FF-7
- Store part #
- C7418409
- Package / case
- SOT-23F
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C7418409
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.14 | ₹77.14 |
| 10+ | ₹61.93 | ₹619.30 |
| 30+ | ₹54.11 | ₹1,623.30 |
| 100+ | ₹46.73 | ₹4,673.00 |
| 500+ | ₹42.16 | ₹21,080.00 |
| 1,000+ | ₹39.77 | ₹39,770.00 |
1 × ₹77.14
₹77.14
excl. GST
₹91.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXTR2012FF-7
₹77.14 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -65℃~+150℃@(Tj)
- Supply Current (Iq)
- 590uA
- Output Configuration
- Positive
- Output Current
- 30mA
- Operating Voltage
- 100V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.063 g
Overview
The ZXTR2012FF monolithically integrates a transistor, Zener diode and resistor to function as a high-voltage linear regulator. The device regulates with a 12V nominal output at 15mA. It is designed for use in high-voltage applications where standard linear regulators cannot be used. This function is fully integrated into an SOT23F package, minimizing PCB area and reducing number of components when compared with a multi-chip discrete solution.
Applications
- Supply voltage regulation in Networking
- Supply voltage regulation in Telecommunications
- Supply voltage regulation in Power over Ethernet (PoE)
Key features
- Series Linear Regulator Using Emitter-Follower Stage
- Input Voltage = 15V to 100V
- Output Voltage = 12V ±10%
- Fully Integrated into a SOT23F Package
- Totally Lead-Free & Fully RoHS Compliant, Halogen and Antimony Free. “Green” Device
