DIODESDatasheet (PDF)

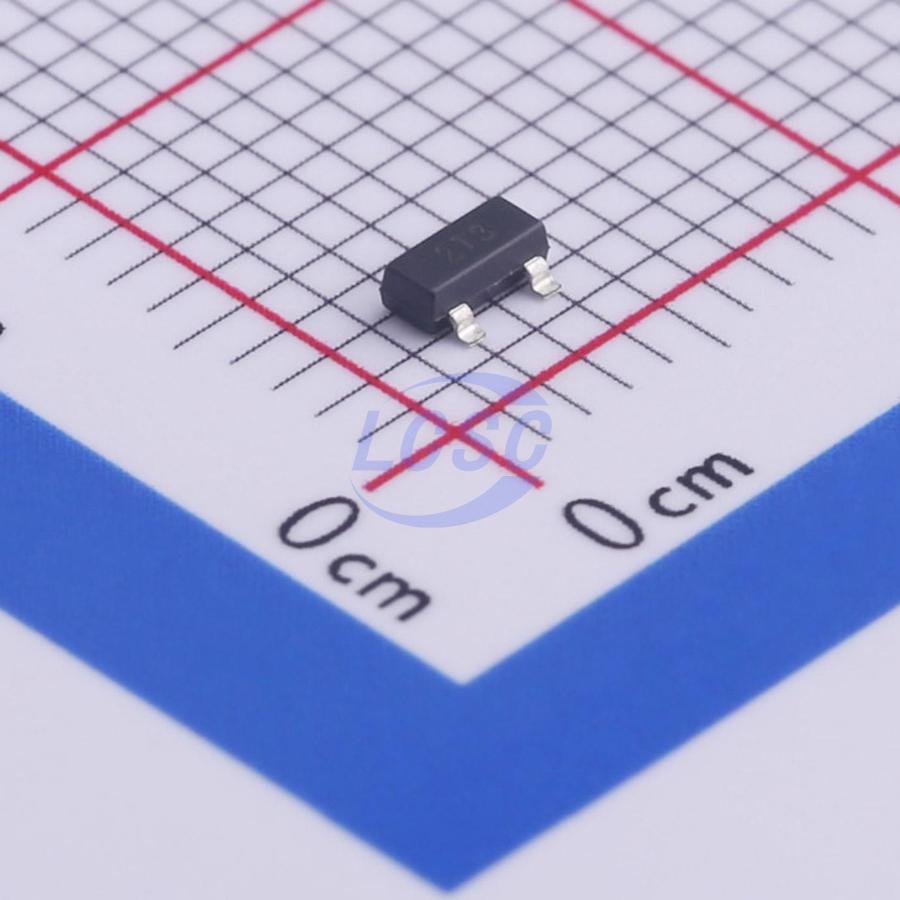

ZXTR2112F-7
10.8V~13.2V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS3 CompliantActive
Input 60V Output 12V 50mA
- Manufacturer
- DIODES
- Manufacturer part #
- ZXTR2112F-7
- Store part #
- C441831
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
63 in stock
#C441831
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.01 | ₹65.01 |
| 10+ | ₹54.14 | ₹541.40 |
| 30+ | ₹49.36 | ₹1,480.80 |
| 100+ | ₹43.49 | ₹4,349.00 |
| 500+ | ₹40.88 | ₹20,440.00 |
| 1,000+ | ₹37.84 | ₹37,840.00 |
1 × ₹65.01
₹65.01
excl. GST
₹76.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXTR2112F-7
₹65.01 for 1 + GST
Specifications
- Output Voltage
- 10.8V~13.2V
- Number of Outputs
- 1
- Operating Temperature
- -65℃~+150℃@(Tj)
- Supply Current (Iq)
- 160uA
- Output Configuration
- Positive
- Operating Voltage
- 60V
- Output Current
- 15mA;50mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The ZXTR2112F monolithically integrates a transistor, zener diode and resistor to function as a linear regulator. The device regulates with a 12V nominal output at 15mA. It is designed for use in high voltage applications where standard linear regulators cannot be used. This function is fully integrated into a SOT23 package, minimizing PCB area and reducing number of components when compared with a multi-chip discrete solution.
Applications
- Series Linear Regulator Using Emitter-Follower Stage
Key features
- Supply voltage regulation for:
- 24V to 12V Rails
- Other Customized Input Rails
