PUOLOPDatasheet (PDF)

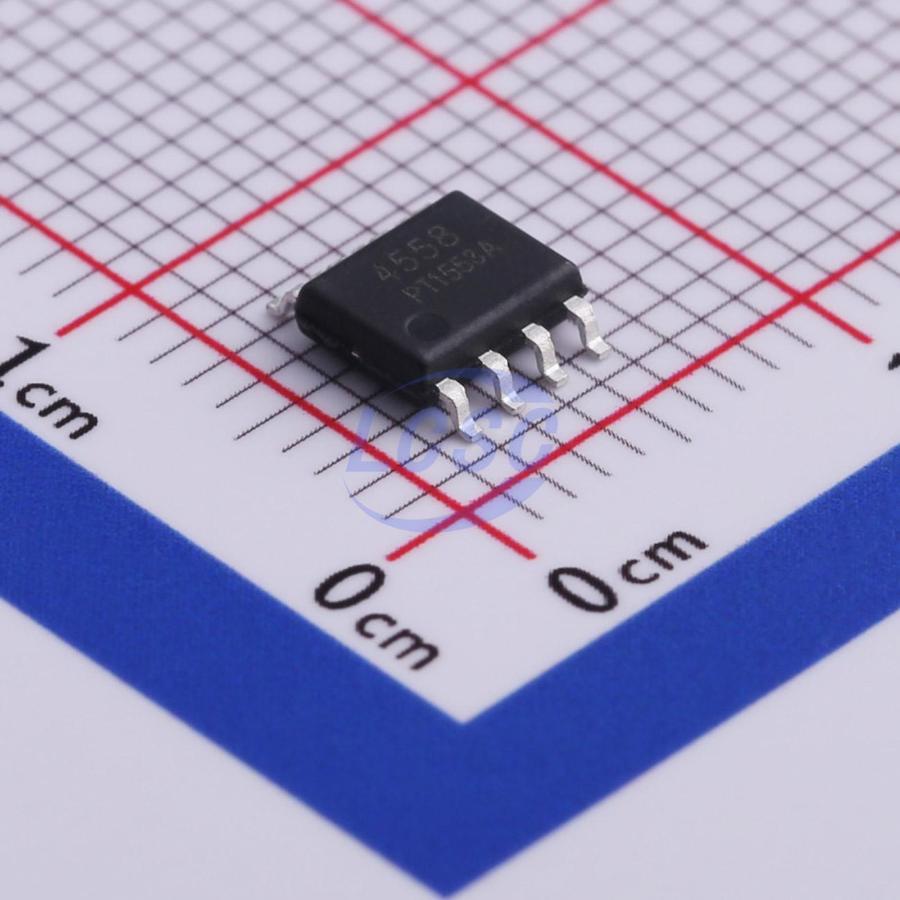

4558
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8ROHS CompliantActive
Dual Operational Amplifier
- Manufacturer
- PUOLOP
- Manufacturer part #
- 4558
- Store part #
- C478986
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,685 in stock
#C478986
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.84 | ₹44.20 |
| 50+ | ₹7.03 | ₹351.50 |
| 150+ | ₹6.12 | ₹918.00 |
| 500+ | ₹5.43 | ₹2,715.00 |
| 3,000+ | ₹4.89 | ₹14,670.00 |
| 6,000+ | ₹4.62 | ₹27,720.00 |
5 × ₹8.84
₹44.20
excl. GST
₹52.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
4558
₹44.20 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Quiescent Current
- 3.5mA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Dual Supply
- -20V~20V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.171 g
Overview
Key features
- Contains two independent, high-gain, internally frequency-compensated dual op-amps; suitable for wide supply voltage range single-supply operation and dual-supply mode; under recommended operating conditions, supply current is independent of supply voltage
- Internal frequency compensation
- High DC voltage gain (approx. 100dB)
- Unity-gain bandwidth (approx. 1MHz)
- Low input bias current
- Low input offset voltage and offset current
- Wide common-mode input voltage range including ground
- Wide differential input voltage range equal to supply voltage range
- Large output voltage swing (0 to Vcc - 1.5V)
