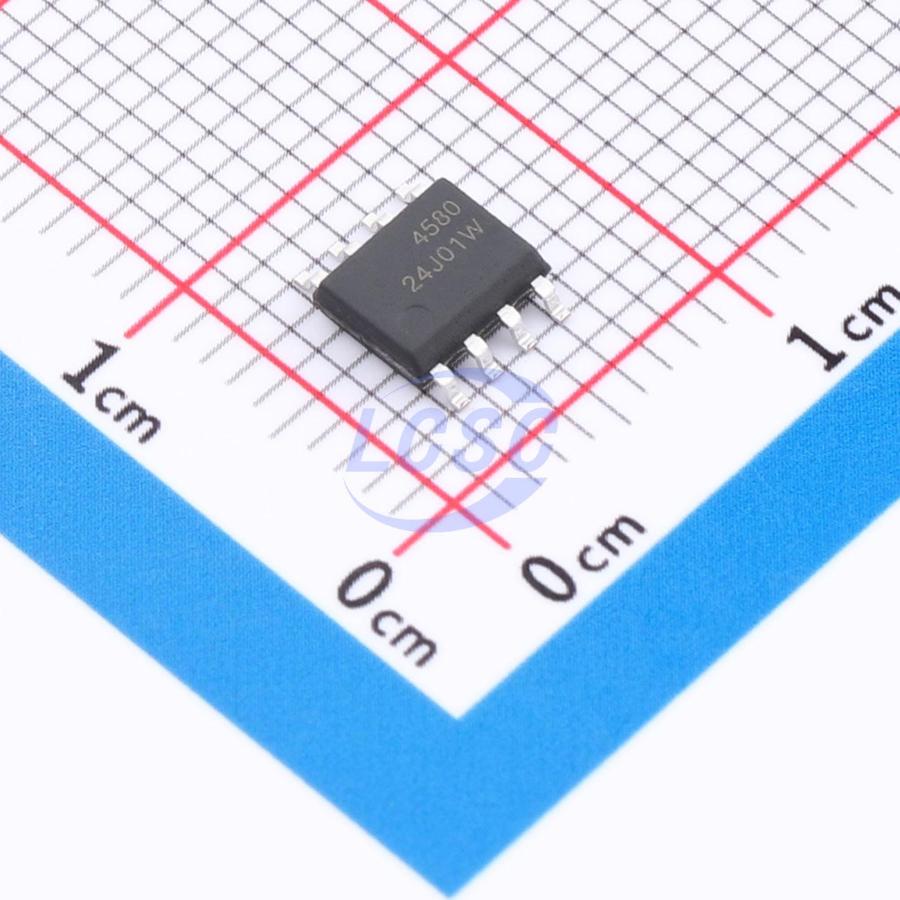

IDCHIP

4580

50mA 500uV 5V/us 110dB 100nA 6mA 15MHz SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Manufacturer: IDCHIP
Manufacturer part #: 4580
Store part #: C51018348
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,085 in stock

#C51018348

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.18	₹55.90
50+	₹8.77	₹438.50
150+	₹7.58	₹1,137.00
500+	₹6.68	₹3,340.00
2,500+	₹5.95	₹14,875.00
5,000+	₹5.60	₹28,000.00

Quantity (min 5, multiples of 5)

5 × ₹11.18

₹55.90

excl. GST

₹65.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

4580

₹55.90 for 5 + GST

Specifications

Output Current: 50mA
Vos - Input Offset Voltage: 500uV
Slew Rate: 5V/us
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 100nA
Quiescent Current: 6mA
Gain Bandwidth Product: 15MHz
Dual Supply: -16V~-2V;2V~16V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

Key features

Operating voltage range: ±2V to ±16V
Low input noise voltage: 0.8 μVrms typical
Wide gain-bandwidth product: 15MHz typical
Low distortion: 0.0005% typical
Slew rate: 5V/μs typical
Bipolar technology
