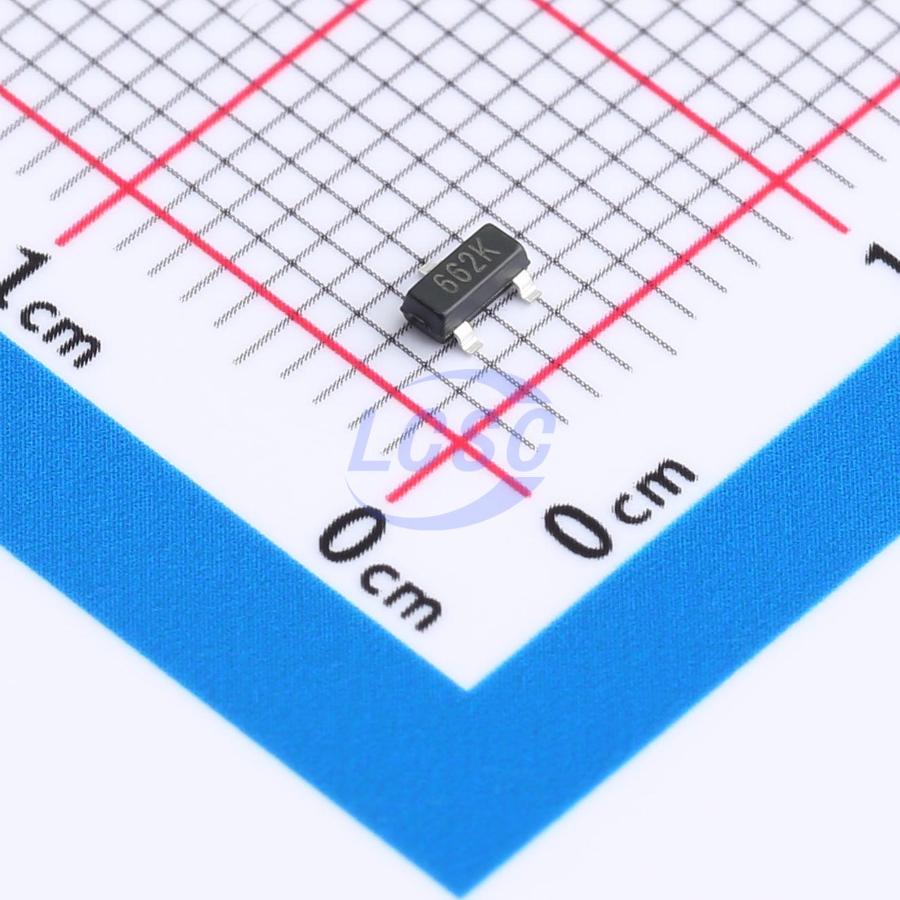

YONGYUTAIDatasheet (PDF)
662K
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23
SOT-23RoHSActive
High-precision, low-power, three-terminal positive voltage regulator
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- 662K
- Store part #
- C47147602
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,060 in stock
#C47147602
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.18 | ₹63.60 |
| 200+ | ₹2.49 | ₹498.00 |
| 600+ | ₹2.10 | ₹1,260.00 |
| 3,000+ | ₹1.88 | ₹5,640.00 |
| 9,000+ | ₹1.64 | ₹14,760.00 |
| 21,000+ | ₹1.53 | ₹32,130.00 |
20 × ₹3.18
₹63.60
excl. GST
₹75.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
662K
₹63.60 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 300mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
The 662K is a high-accuracy, low-power, three-terminal positive voltage regulator fabricated using CMOS and laser trimming technology. This series delivers high output current with very low dropout voltage. The 662K integrates a current limiter circuit, driver transistor, precision voltage reference, and error correction circuit. It is compatible with low-ESR ceramic capacitors. The foldback circuit of the current limiter serves both as short-circuit protection and as an output current limiter on the output pin. The output voltage is set via internal laser trimming and can be selected from 1.2V to 5.0V in 0.1V increments. The 662K is available in a SOT-23 package.
Applications
- Battery-powered devices
- Voltage reference sources
- Cameras
- Portable AV systems
- Mobile phones
Key features
- Low power consumption
- Low dropout voltage
- Low temperature drift
- Low quiescent current: 5uA at 6V
- Output voltage accuracy: ±2% tolerance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6206P332MR-Y#C47147603YONGYUTAI · SOT-23 | YONGYUTAI | SOT-23 | 8,720 | ₹3.16 · 8,720 in stock | View |
 | XC6206P332MR#C2897477YONGYUTAI · SOT-23-3L | YONGYUTAI | SOT-23-3L | 4,940 | ₹5.16 · 4,940 in stock | View |
